Removal and replacement procedures 34
Drive bay configuration

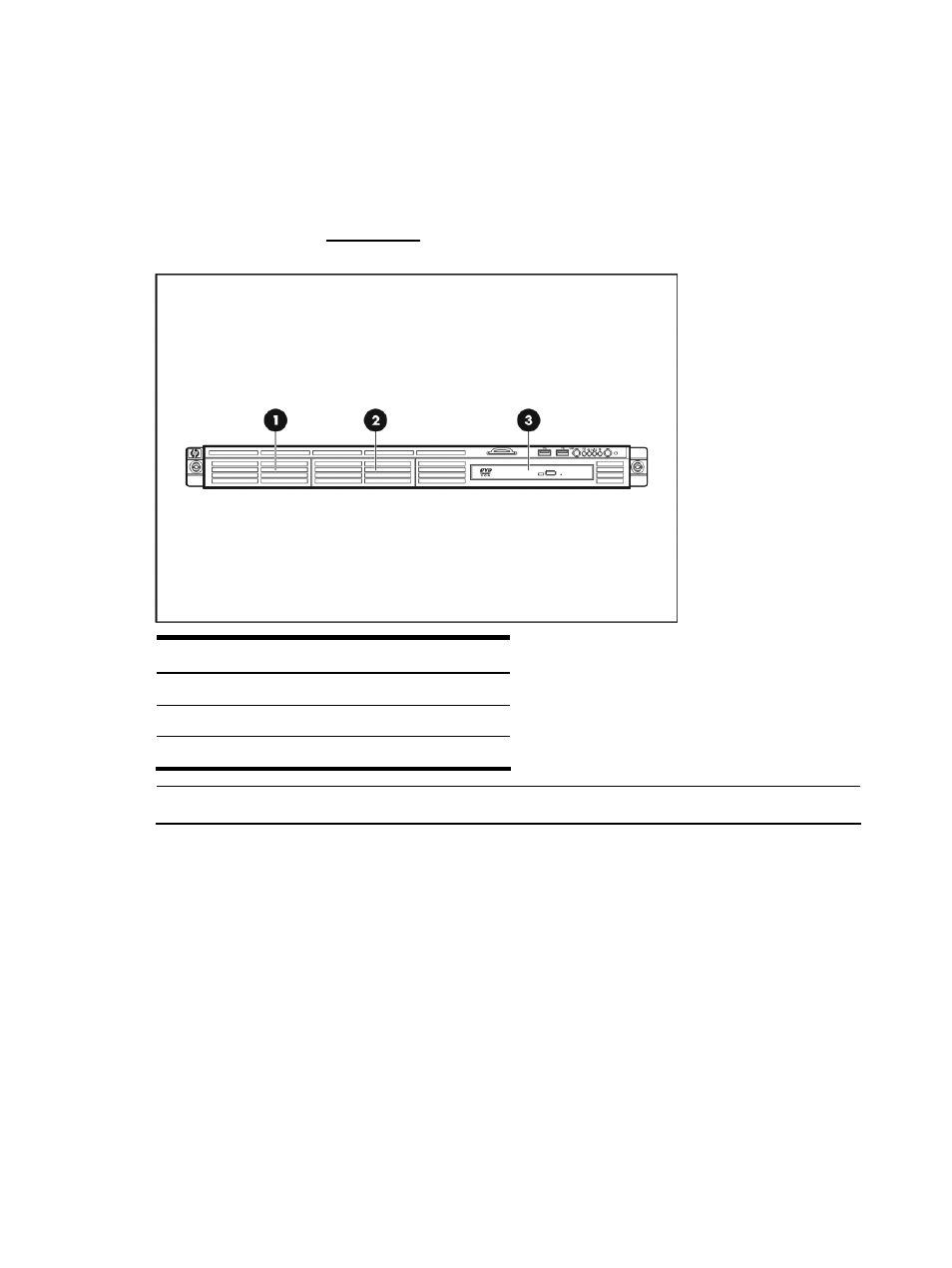

The server supports three drive bays—two drive bays for 1-inch non-hot-plug SAS or SATA hard disk
drives (HDD) and one drive bay for a slim type SATA optical disc drive (ODD).
Go to the HP website at www.hp.com and refer to the options list for this server model for the latest
information on supported system drives.
Item Description
1 Hard disk drive 1
2 Hard disk drive 2
3 Optical disc drive
NOTE: The server does not support SAS and SATA HDD models at the same time.
System drive cable management
The figures in this section illustrate the system drives' data and power cable connections. Observe the
proper cable management guidelines described on page 31 when routing the cables.
