Removal and replacement procedures 64
PCI-X riser board
You can replace the full-length/full-height PCI Express x8 riser board with an optional 133 MHz/3.3V
PCI-X model. This will allow installation of PCI-X compatible expansion boards.
NOTE: For ease of reading, the PCI riser board assembly will simply be referred to as “assembly” in
this section.
To install the PCI-X riser board:
1. Remove the PCI riser board assembly.
2. If an expansion board is currently installed on the full-length/full-height PCI Express x8 riser
board, remove it.
3. Remove the full-length/full-height PCI Express x8 riser board.

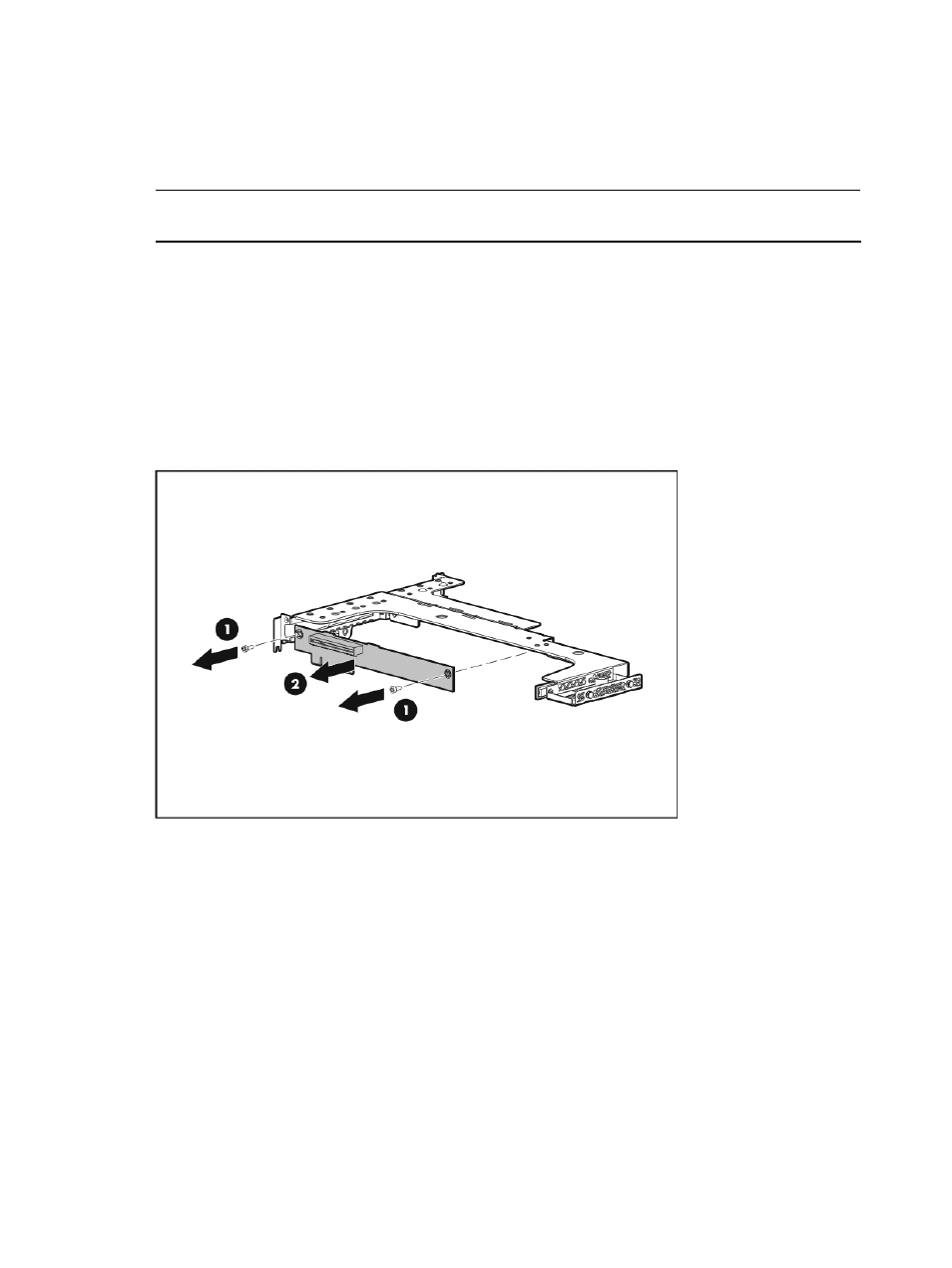

a. Remove the two screws that secure the riser board (1).
Reuse these screws when you install the PCI-X riser board.
b. Detach the riser board from the assembly (2).
4. Remove the PCI-X riser board from its protective packaging.
