Heat & Glo • Escape-36DV • 2012-900 • Rev. AB • 10/08 57
1
2
3
4
5
6
7
8
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. All parts listed in this manual may
be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Valve Bracket 2012-106
2
Valve (NG) 750-500 Y
Valve (LP) 750-501 Y
3
Pilot Assembly NG
Pre 002868727 385-510A Y
Post 002868727 2090-012 Y
Pilot Assembly LP
Pre 002868727 385-511A Y
Post 002868727 2090-013 Y
4
Burner Orifi ce (#30C) NG 582-830 Y
Burner Orifi ce (#49C) LP 582-849 Y
5 Flexible Gas Connector 2012-008 Y
6 Wire Assembly 593-590A Y
7 Flex Ball Valve Assembly 302-320A Y
8 Module 593-592 Y
Battery Pack 593-594A Y
ON/Off Rocker Switch 060-521A Y
Wire Plug Assembly 2005-021 Y
2 inch Jumper Wire 2012-206 Y
Wall Switch Wire 2095-550 Y
Pilot Bracket
Pre 002868727 2012-108
Post 002868727 N/A
Ground Strap
Pre 002868727 385-512
Post 002868727 N/A
C. Service Parts

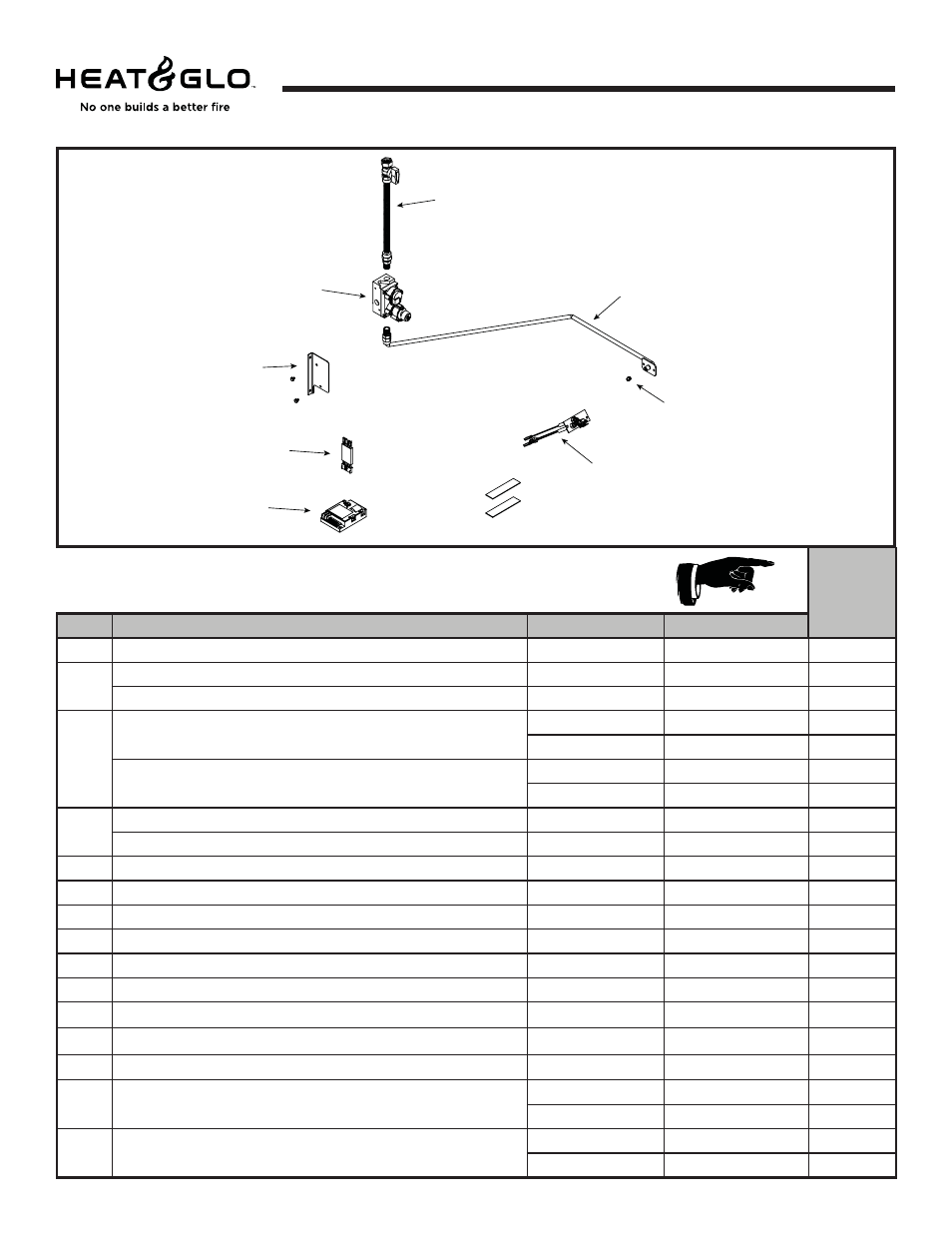

Valve Assembly Parts List
ESCAPE-36DV
Beginning Manufacturing Date: Sept. 2003
Ending Manufacturing Date: ______
