Heat & Glo • Escape-36DV • 2012-900 • Rev. AB • 10/08 50
16 16
Reference Materials
A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 3.

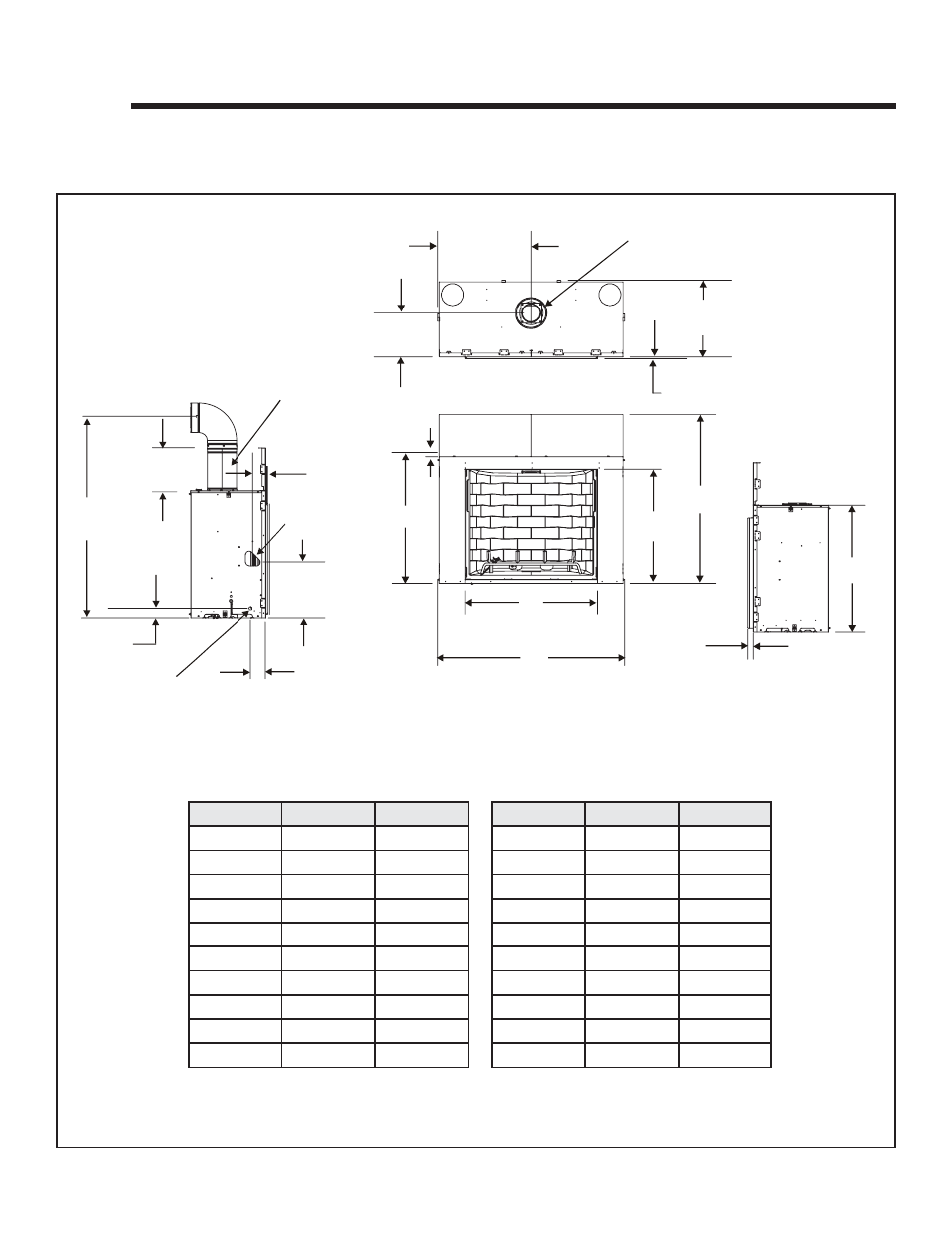

Figure 16.1 Appliance Dimensions
Location Inches Millimeters Location Inches Millimeters
A 25-3/8 646 K 3-1/2 90
B 12 304 L 1 24
C 8 203 M 34-1/2 876
D 1/2 13 N 36 914
E 21 532 O 50-7/8 1292
F 12 304 P 31 788
G 54-1/8 1376 Q 46 1168
H 2-5/8 66 R 1-1/2 38
I 3-1/2 90 S 34-1/2 876
J 15-1/8 308
Ø A C
D
M
J
G
F
H
K
I
O
P
Q
R
S
N
L
E
B
OPTIONAL FIRESCREEN
SITS OUT 1-1/2 INCH
FROM UNIT FACE
MINIMUM 12 INCH
VERTICAL REQUIRED
GAS LINE
ACCESS
ELECTRICAL
ACCESS
