B. vent components diagrams (continued) – Heat & Glo Fireplace ESCAPE 36DV User Manual
Page 54
Heat & Glo • Escape-36DV • 2012-900 • Rev. AB • 10/08
54
7-1/4 in.
(184 mm)
5-1/4 in.
(133 mm)
12-1/2 in.
(318 mm)
DVP-TVHW
VerticalTermination Cap (Highwind)
PVK-80
(For use with IPI and DSI appliances only.)
1 in.
(25 mm)
14 in.
(356 mm)
3/8 in. (10 mm)
1 in. (25 mm)
7-1/4 in.
(184 mm)
7-3/4 to 10-3/8 in.
(197 to 264 mm)
DVP-FBHT
FireBrickTermination Cap
B. Vent Components Diagrams (continued)

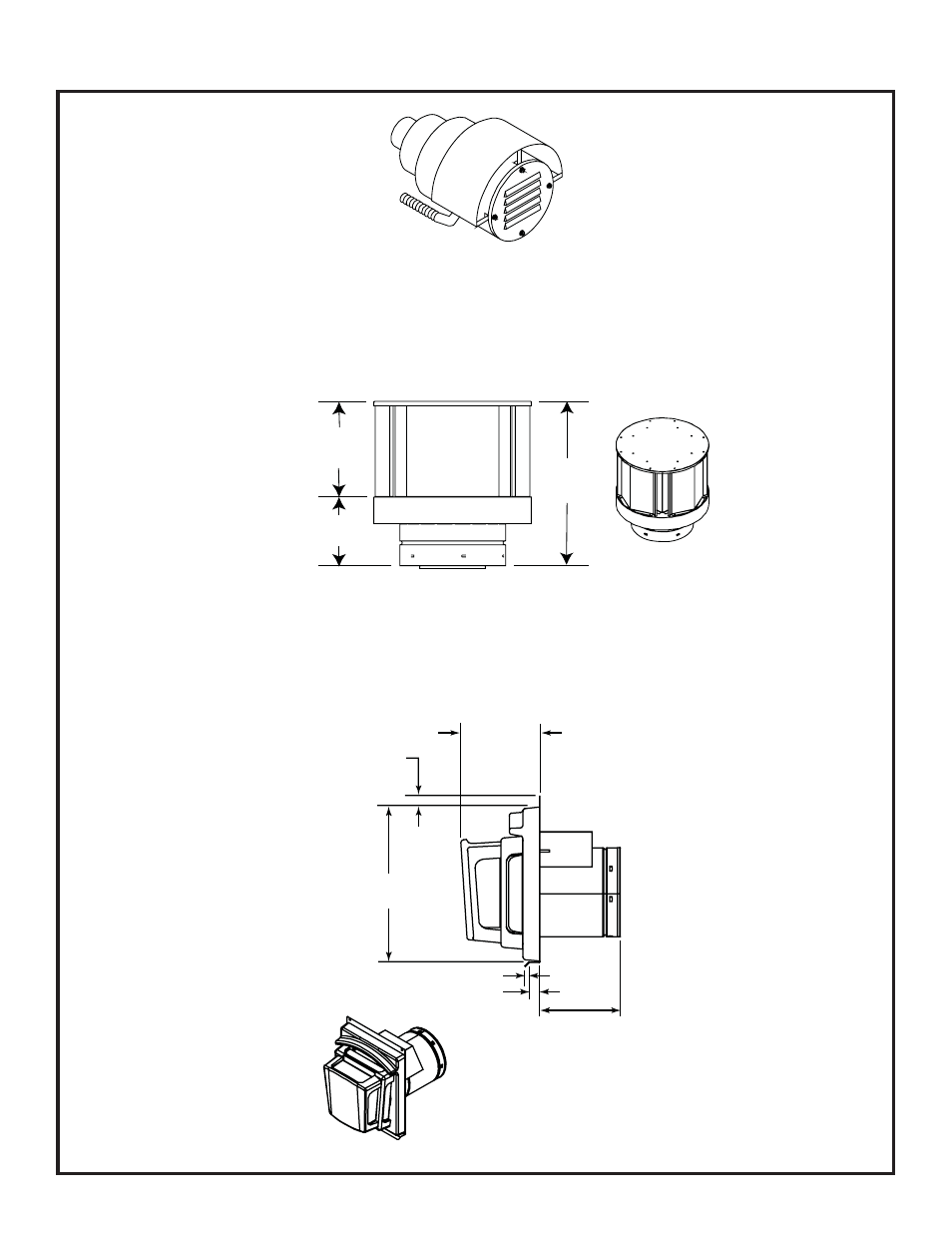

Figure 16.5 DVP vent components
