Log Assembly: LOGS-ESCAPE

F. Positioning the Logs

2012-925C 10/06

1

1

1

1

2

2

8

8

6

6

5

5

4

4

3

3

7

7

CAUTION:

Logs are fragile! Carefully remove

the logs from the packaging.

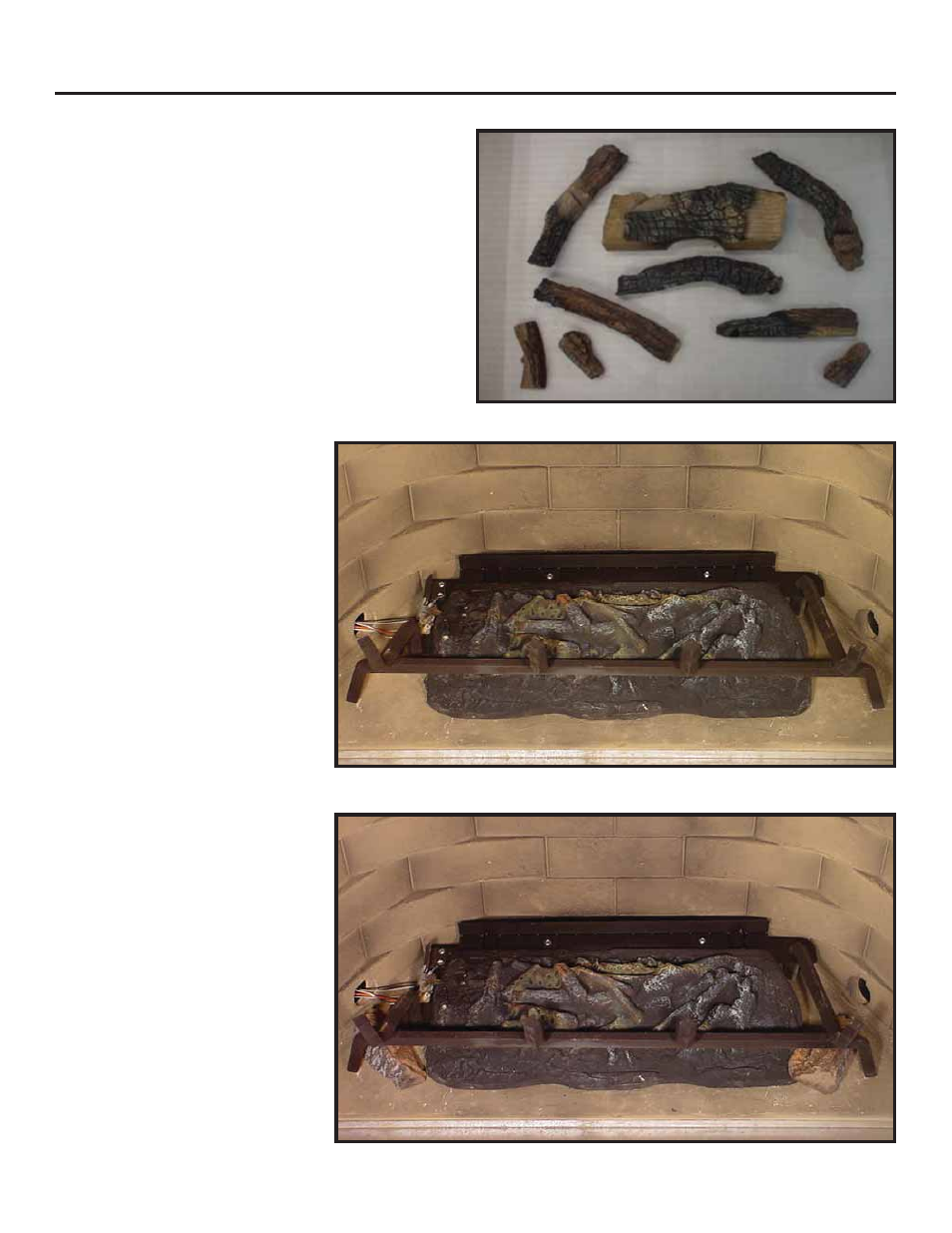

Step 1.

Place the grate onto the burner. The
back of the right tine drops into the
hole on the right rear of the burner.
The shorter left tine is pushed back
into the half-hole on the left side of
the burner. Be sure to push the grate
all the way down to the fl oor and
fi rmly back into its holder.

LOG #1
(SRV750-706) (TWO):

There are quantity two (2) of log #1.
Place one of the logs on the fl oor of
the fi replace on the left side of the
burner between the burner and the
left tine of the grate. Place the sec-
ond log on the right side of the burn-
er between the burner and the right
tine of the grate. The second log can
be slightly resting on the edge of the
burner.
