Heat & Glo • Escape-36DV • 2012-900 • Rev. AB • 10/08 48

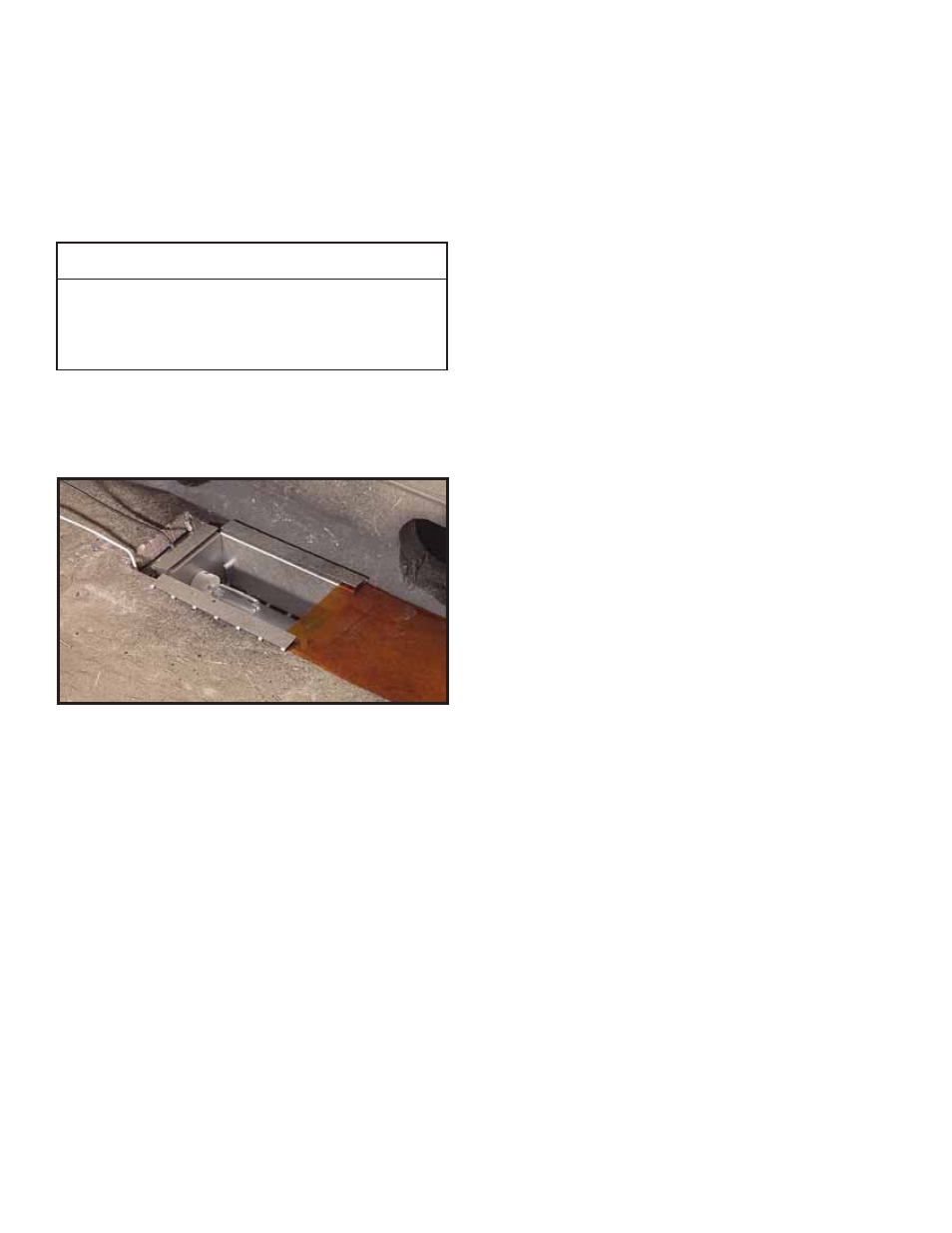

Figure 15.1
CAUTION
Skin oils can cause early bulb failure.
• Do not touch bulb with bare hands.
• Use paper towel or rubber gloves when handling bulb.
• If bulb has been touched, wipe it clean with rubbing alcohol.
5. Slide the lens back over the bulb cavity. Place the
burner back into place. Start the two metal strips into
the slots on the burner then guide the burner neck
onto the orifi ce. Make sure the burner neck is fully
engaged onto the orifi ce. Try to move the burner side
to side, the burner should not move if it is fully en-
gaged onto the orifi ce. Attach the burner with the two
screws removed in Step 3. Attach the pilot with the
two screws removed in Step 3.
6. Place the grate onto the burner. The back of the
right tine drops into the hole on the right rear of the
burner. The shorter left tine is pushed back into the
half-hole on the left side of the burner. Be sure to
push the grate all the way down to the fl oor and
fi rmly back into its holder.
3. Slide the orange lens to the right to open the bulb
cavity (see Figure 15.1). Remove old bulb. Replace
the bulb with a 75 watt or less halogen bulb. See
Service Parts List.
B. Replacing Light Bulb
1. Remove the front and glass by following the “Placing
the Embers Material” section.
2. Remove the logs and grate.
3. Remove the burner by unscrewing the two screws on
the back of the burner and the two screws by the pilot
using a 1/4 inch hex driver. Gently move the pilot out
of the way and slide the burner out.
