Appliance Setup
A. Remove Shipping Materials
Remove shipping materials from inside or underneath the
fi rebox.
B. Clean the Appliance
Clean/vacuum any sawdust that may have accumulated
inside the fi rebox or underneath in the control cavity.
C. Accessories
Install approved accessories per instructions included
with accessories. See Service Parts List for appropriate
accessories. Refer to Section 16.
Shock or fi re risk.
Use ONLY optional accessories approved for
this appliance.
• Using non-listed accessories voids warranty.
• Using non-listed accessories may result in a
safety hazard.
• Only Hearth & Home Technologies approved
accessories may be used safely.
D. Installing the Optional Heat-Zone-Gas Kit
1. Remove the knockout from the top of the appliance
and discard it (see Figure 12.1).
2. Center the duct collar around the exposed hole and
attach it to the appliance with 3 screws. Note: Do this
BEFORE fi nal positioning of the appliance.
3. Determine the location for the air register/fan housing
assembly.
Reference the Heat-Zone-Gas kit instructions for the
remaining installations steps.
E. Ember Placement
Explosion Risk.
• Follow ember placement instructions in manual.
• Do NOT place embers directly over burner ports.
• Replace ember material annually.
Improperly placed embers interferes with proper burner
operation.
Placing the Ember Material
Ember material is shipped with this gas appliance. To place
the ember material:
• Remove the ash lip (see Figure 12.2) that is located in
front of the glass.
WARNING
WARNING

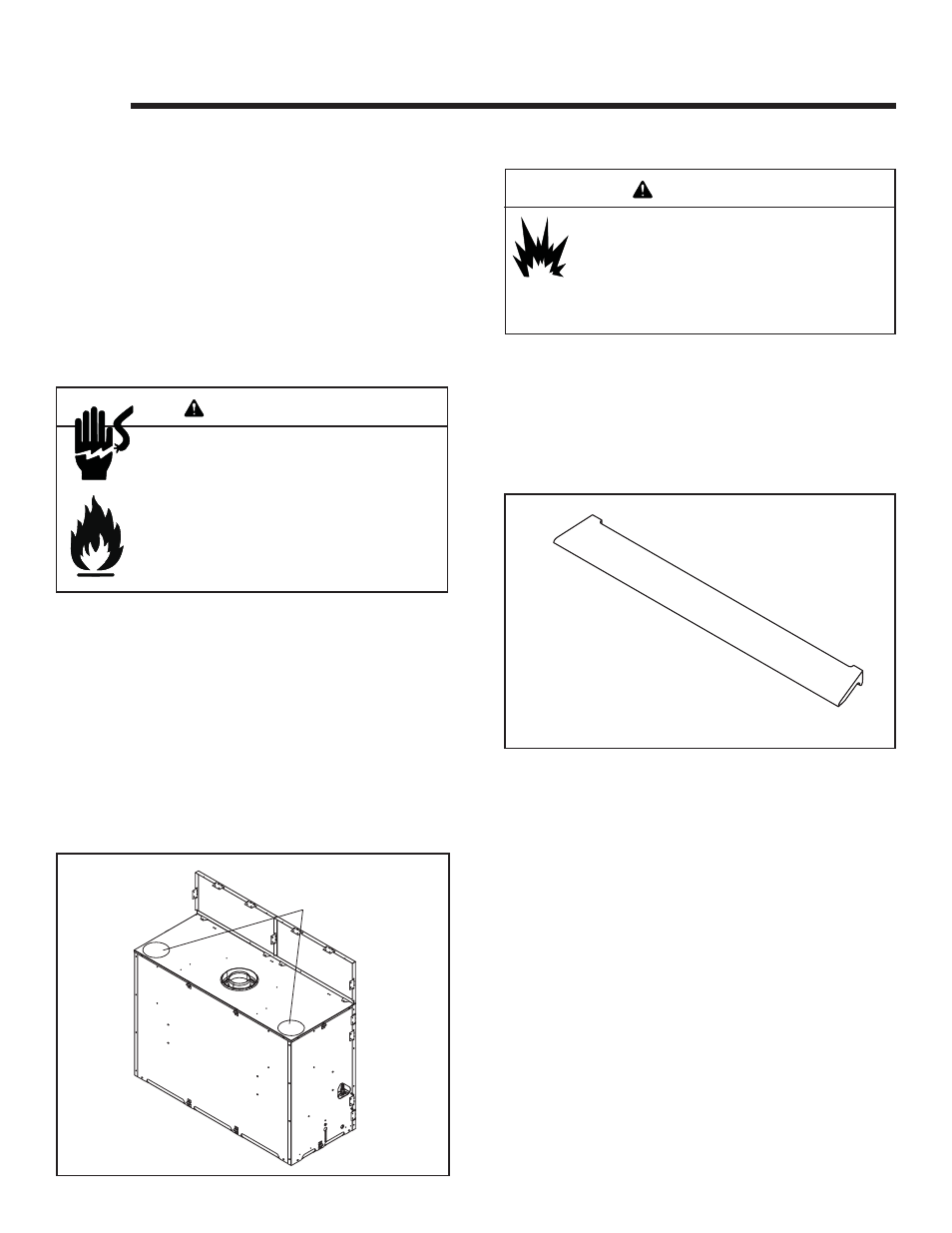

Figure 12.1
HEAT-ZONE-GAS
KNOCKOUTS
Figure 12.2. Ash Lip
• Remove the side panels located in front of the glass.
• Remove the pull mesh fi rescreen by unhooking from the
appliance.
• Pull and release the four glass latches (2 per side) located
on the sides of the glass frame.
• Grasping the upper lip with one hand and the lower lip
with the other, pull the bottom of the glass out fi rst. Guide
the bottom while letting the top drop down under the top
of the opening.
• There are two types of ember shipped with the unit.
Embers for the burner surface and Mystic Embers for
the fl oor of the unit.
• Do NOT place embers between log #3 and log #4. They
may disrupt the fl ames and are not visible.
• Place Mystic Embers on the fl oor of unit. Use Mystic
Embers to hide the pilot wires on left side of the burner.
• Save the remaining ember materials for use during
appliance servicing.
• Replace glass fi rescreen and door front trim on the unit.
