PREPARATION FOR USE
17
PREPARATION FOR USE
ANTENNA/CABLE CONNECTIONS
For some of the most common types of connections, please follow the drawings below. Use
only one connection. For any further complex connections, please contact your local dealer or
other qualified persons. (You may need additional accessories which are not supplied).
1 Disconnect the antenna or cable from your
TV. 2 Connect the antenna or cable to the ANT. IN
(Top jack) of your VCR.
3 Connect one end of the coaxial cable
(supplied) to the ANT.OUT (Bottom jack) of
your VCR. 4 Connect the other end of the coaxial cable
(supplied) to the UHF/VHF antenna jack of
your TV.

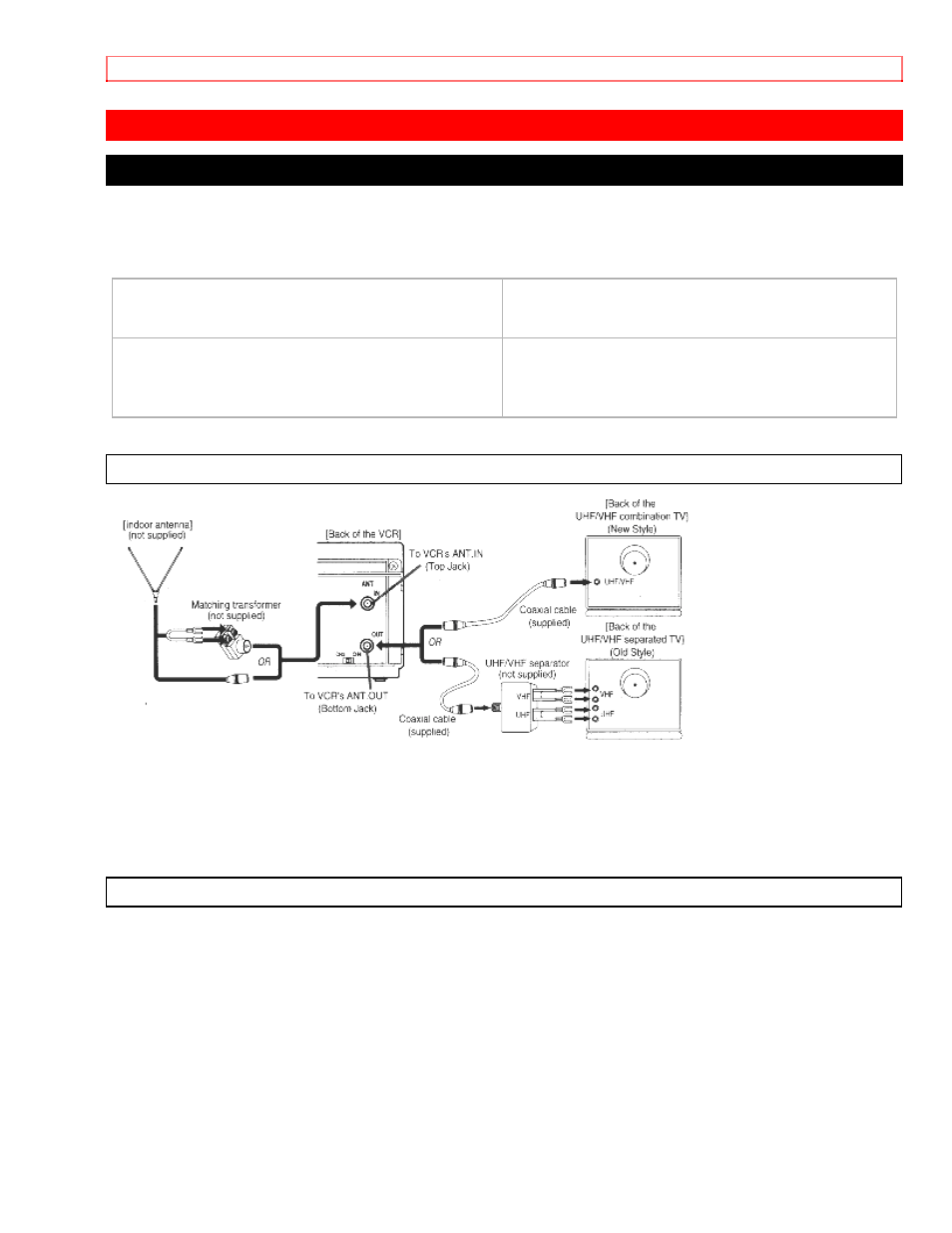

Fig.1: Indoor Antenna
You can record one channel while viewing another. The same goes for Automatic Timer
Recording and IRT. For details, please refer to "Recording" on page 22.
Note: The connection of an indoor antenna with a VCR may not always give acceptable TV
reception.
Fig. 2: VHF/UHF Combination Antenna or Cable fro the Cable Company
