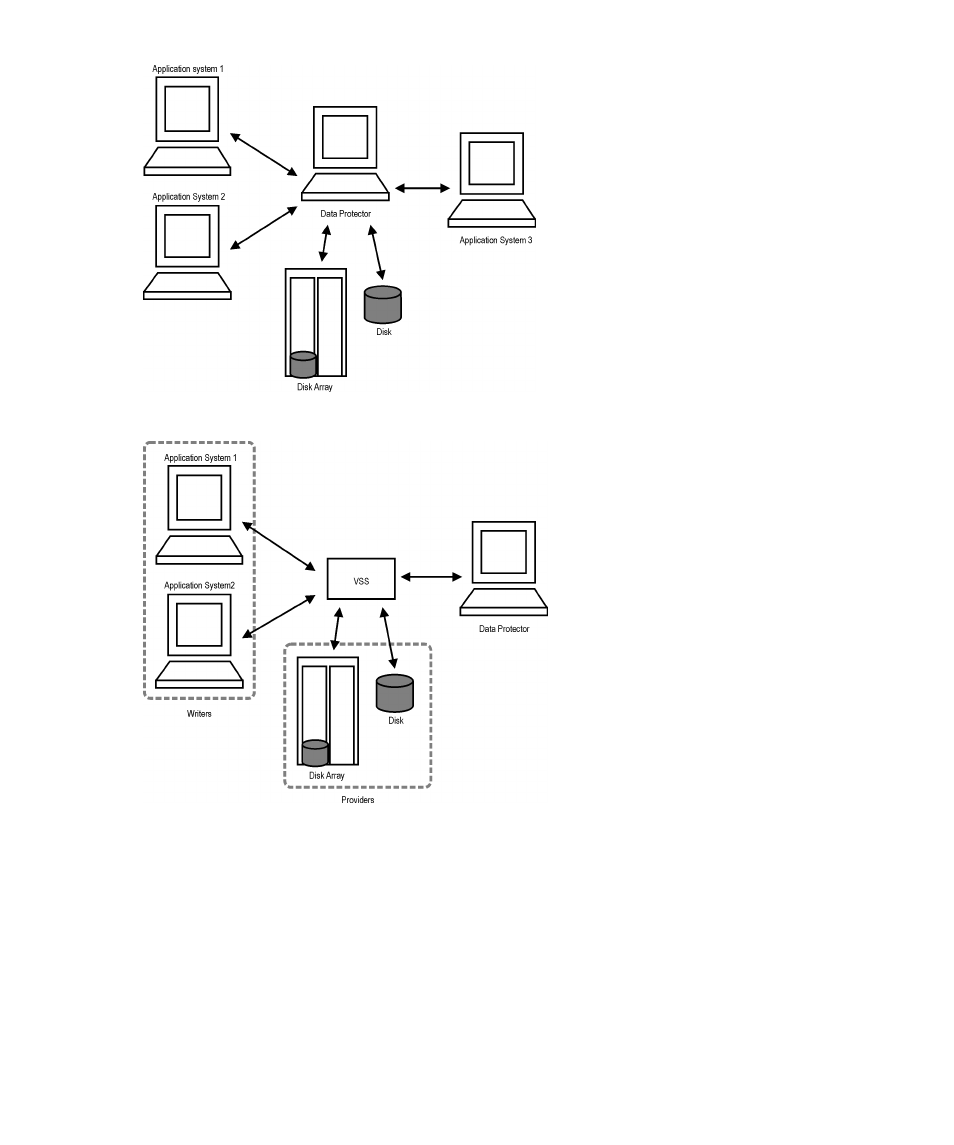

Figure 89 Actors of the traditional backup model

Figure 90 Actors of the VSS backup model

In the traditional model, the backup application had to communicate with each
application it backed up individually. In the VSS model, the backup application
communicates with the VSS only, and the VSS coordinates the whole backup process.

Microsoft Volume Shadow Copy service

292
