Using the Graph
Panel The Graph Panel of the main window shows basic information about the
network activity of selected items in the Map as a number of graphs.

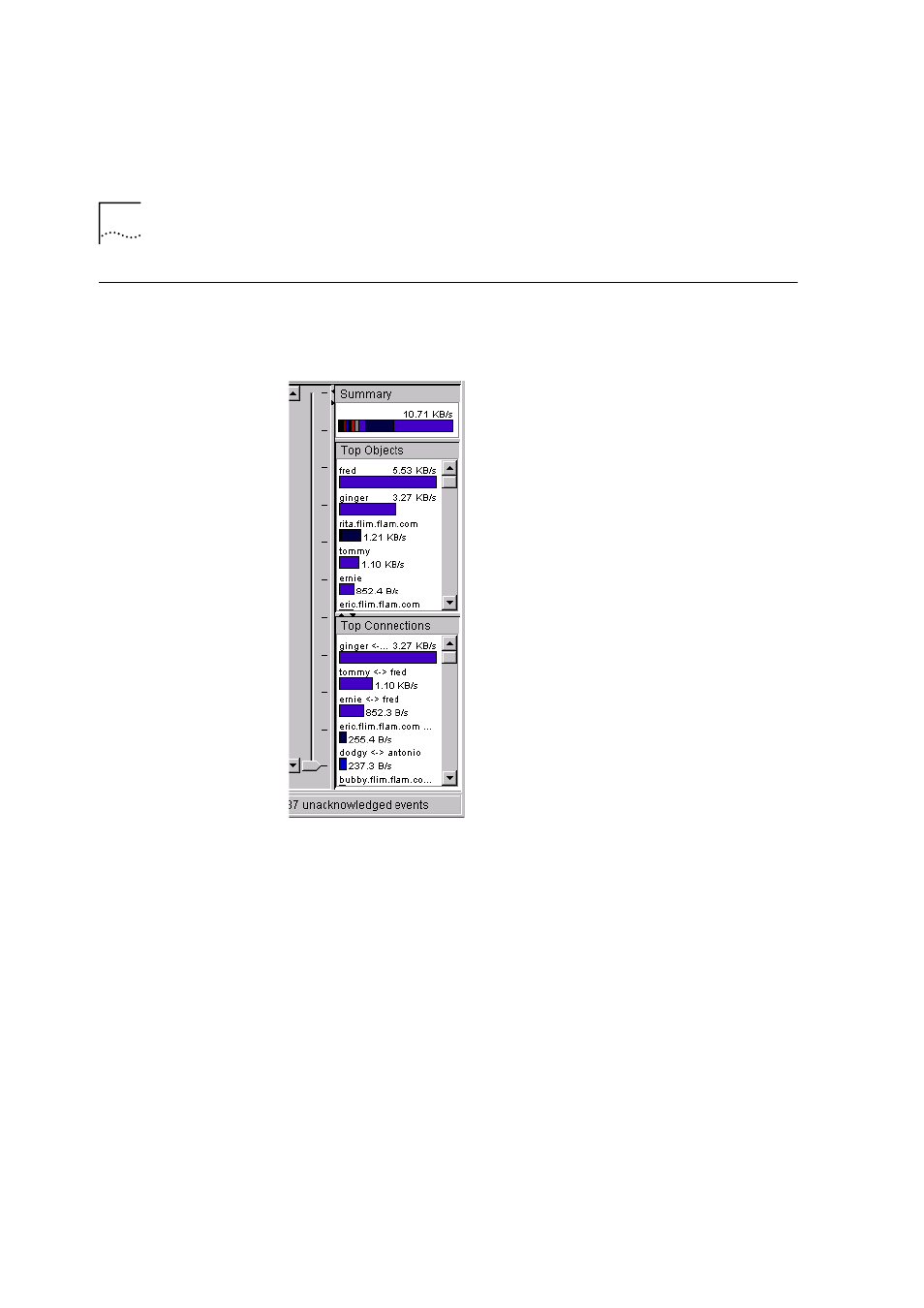

Figure 8 Graph Panel
The following graphs of objects selected in the Map are displayed in the
main window:
■
Summary Bar — Shows the sum of all the traffic displayed in the
Map for the object(s) selected in the Map.
■
Top Objects — If a single group is selected in the Map, this graph
shows the busiest objects in the selected group at the level selected in
the Map.
If more than one object is selected in the Map, this graph shows the
busiest of the objects selected.
■
Top Connections — Shows the busiest connections involving the
objects selected in the Map.
