Chapter 5 • Installing a cradle-type radio assembly
46
1037312-0001 Revision A
4. Tighten the bolts securely.
5. Remove the protective packing material from the feed horn
window.
This completes installation of the radio assembly.

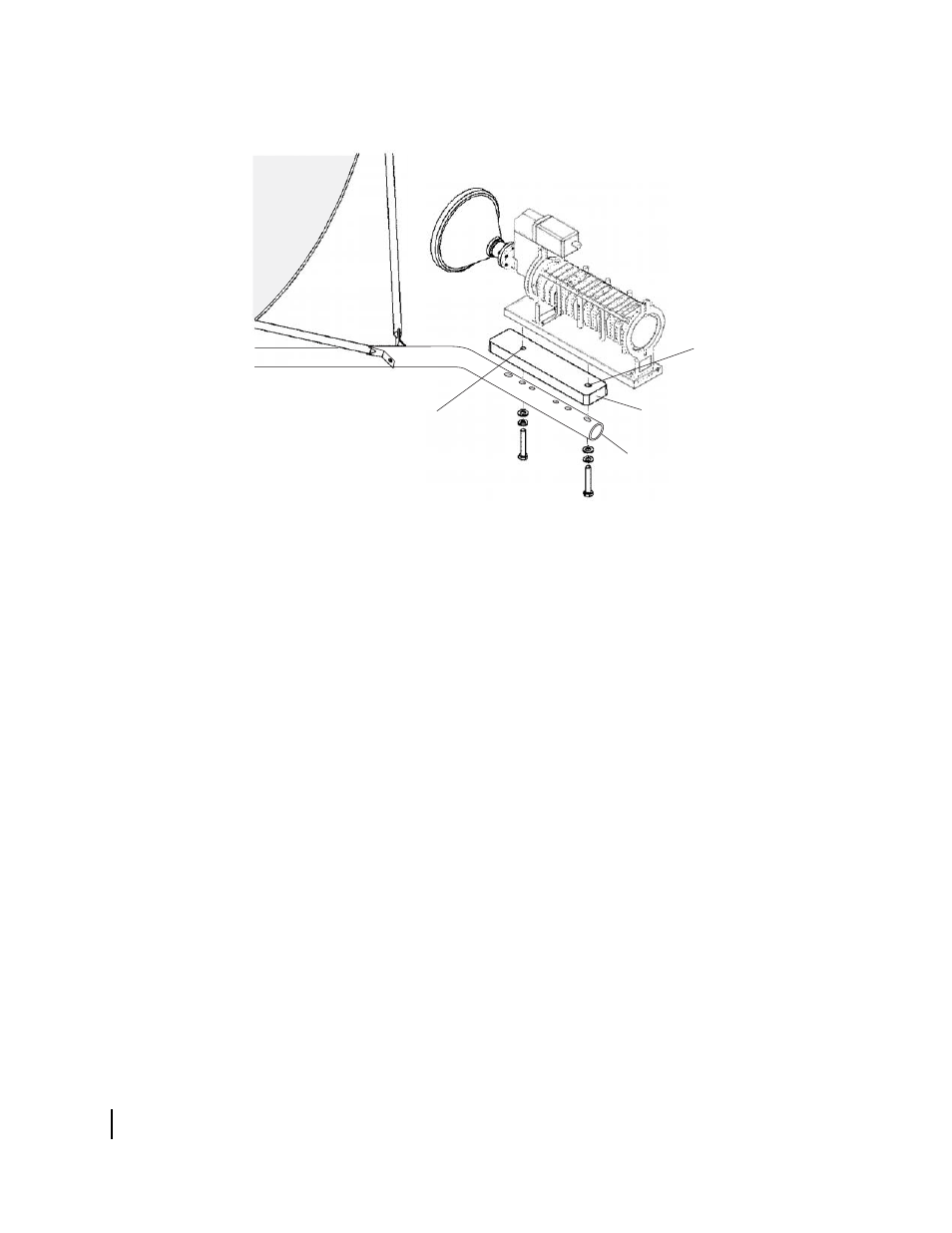

Figure 36: Mounting the radio on the feed support tube
5/16-18
2.5-inch
hex bolts
×
Feed support tube
T0172014
Mounting adapter
Match oval slot in
adapter to oval slot at
the end of the tube.
Match round hole in adapter to
second hole from bend in tube.
