Page 32
Chapter 2 • Antenna parts and required tools
14
1037312-0001 Revision A
Radio mounting adapter The mounting adapter shown in Figure 8 is used for both radio
types to mount the radio assembly on the feed support tube.
Radio mounting brackets
(for J-type radio only)
The antenna kit for the J-type radio assembly (only) includes two
mounting brackets (Figure 9) that are used to secure the radio
assembly to the feed support tube, as illustrated in Figure 10 on
page 15.

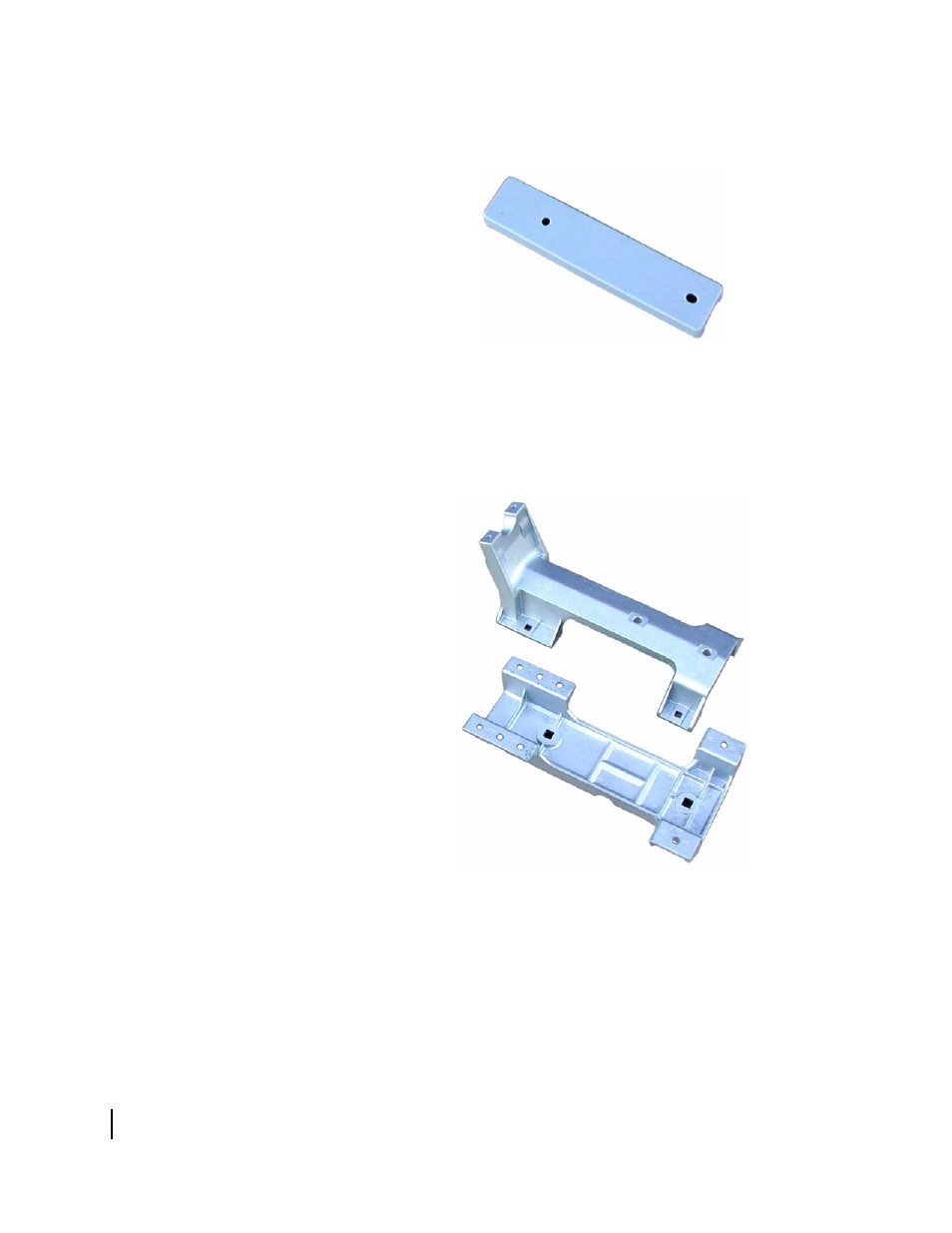

Figure 8: Radio assembly mounting adapter
Figure 9: Radio assembly mounting brackets and adapter
Upper bracket
Lower bracket
