Chapter 4 • Installing a J-type radio assembly
40
1037312-0001 Revision A
4. Tighten the nuts.
Attach the upper and lower mounting brackets to each other, as
shown in Figure 33:
1. Place the radio assembly (attached to the upper bracket in
previous steps) onto the lower bracket.
2. Align the four mounting holes on the upper and lower
mounting brackets.
3. Insert a ¼-20 × 0.75-inch carriage bolt through each of the
four mounting holes.
4. From below, place a ¼-inch flat washer, lock washer, and hex
nut on each bolt.

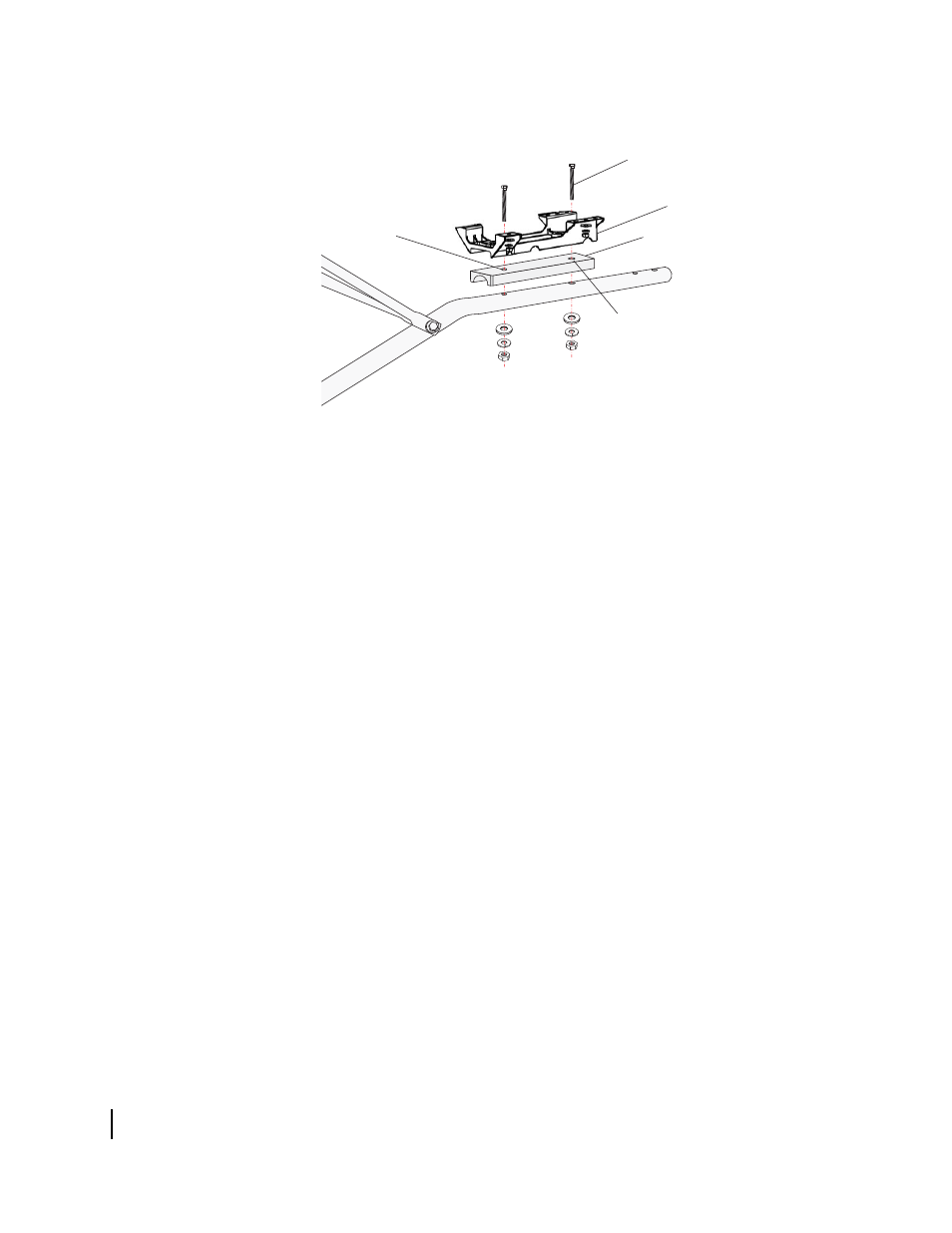

Figure 32: Attaching the radio assembly to the feed support tube
5/16-18 x 2.5-inch
carriage bolts
Feed support tube
T0172015
Mounting adapter
Lower mounting bracket
Match oval slot in adapter
to oval slot in tube.
Match round hole
in adapter to round
hole in tube.
