Chapter 2 • Antenna parts and required tools
16
1037312-0001 Revision A
see Installing a shim for vertical transmit polarization on
page 32.
Cradle-type radio assembly Figure 12 illustrates the cradle-type radio assembly. The main
parts of the radio assembly are mounted on two circular brackets
so they can be rotated, similar to the movement of a cradle, to set
the polarization of the feed horn. The arrows in Figure 13 indicate
how the radio assembly can be rotated.

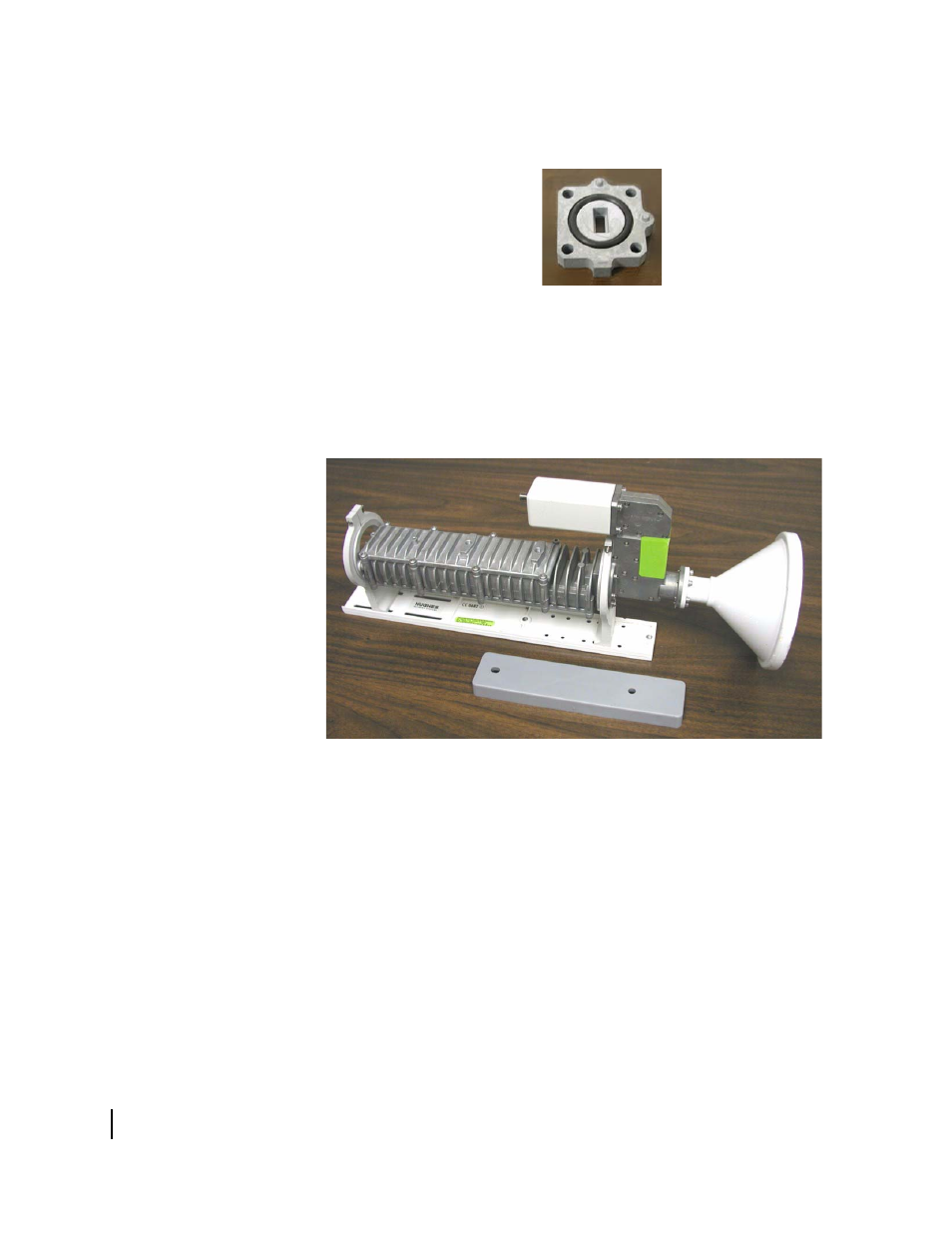

Figure 11: Shim for vertical transmit polarization
Figure 12: Cradle-type radio assembly (shown with mounting adapter)
