Chapter 4 • Installing a J-type radio assembly
1037312-0001 Revision A
41
5. Tighten the four bolts.
6. Remove the protective packing material from the feed horn
window.
This completes installation of the radio assembly.

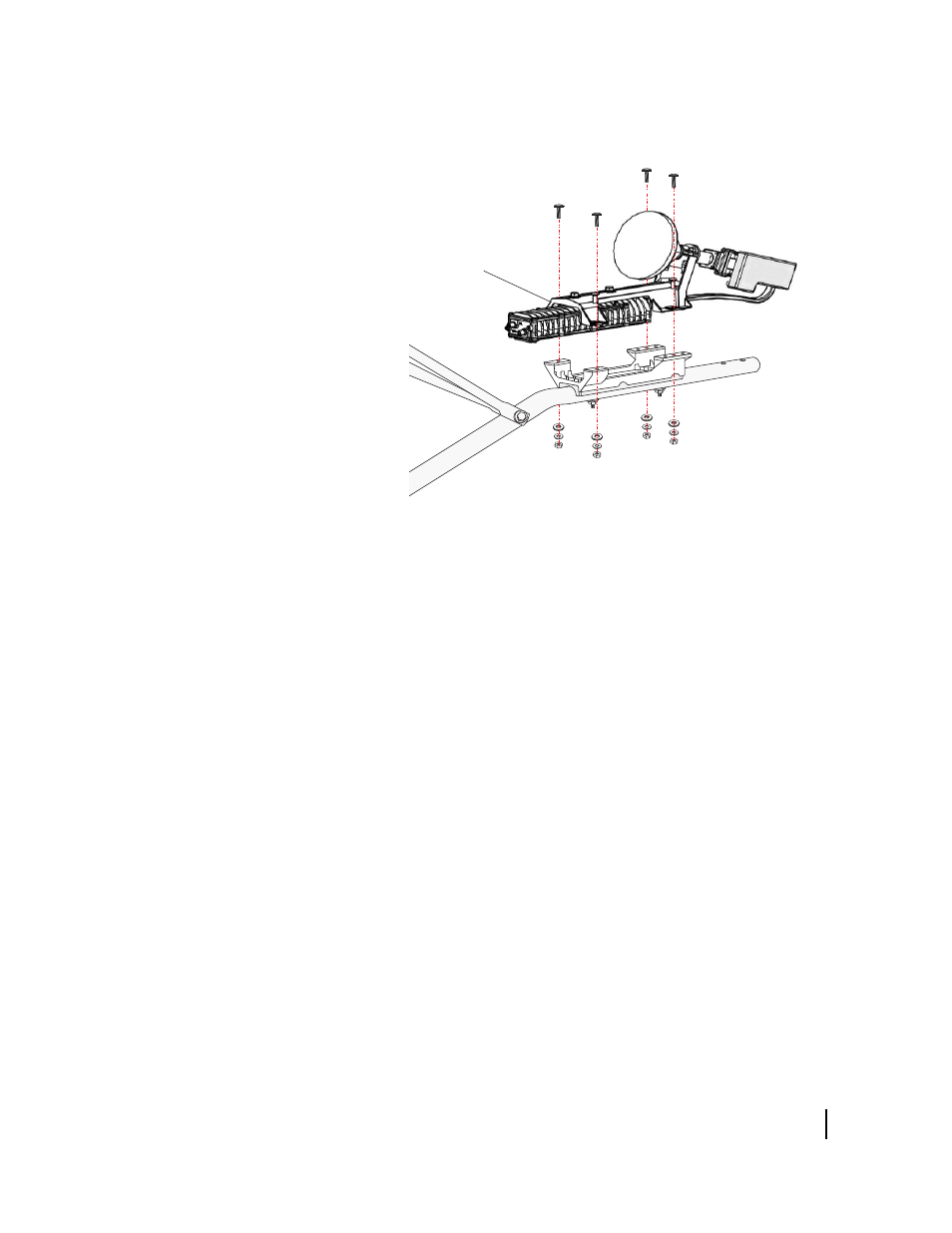

Figure 33: Attaching the radio assembly to the feed support tube
1/4-20 x 0.75-inch
carriage bolts
T0172018
Upper
mounting
bracket
