Hardware options installation

59

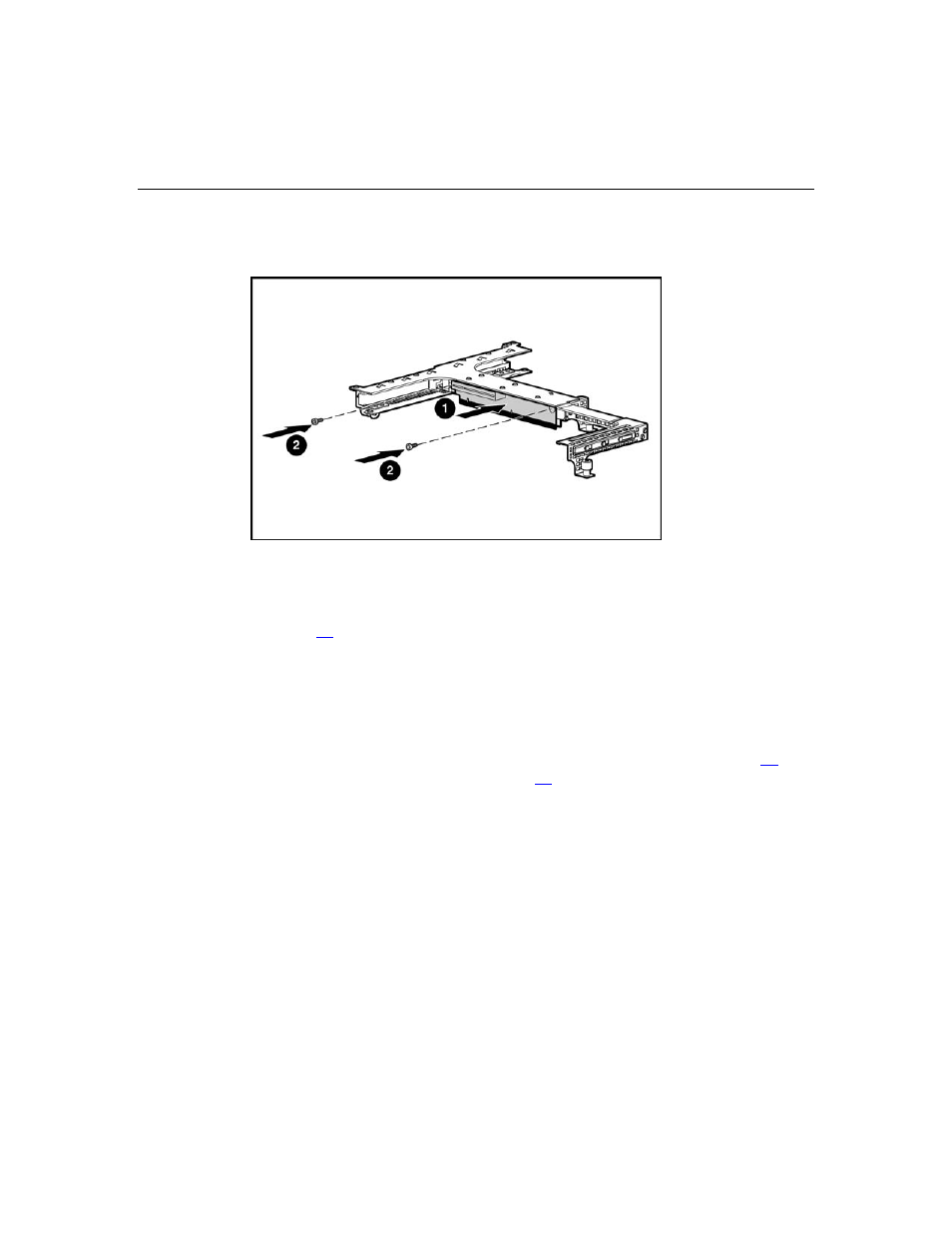

a. Install the riser board with the slot for full-length boards onto the

assembly.

b. Repeat the previous step for the riser board with the slot for half-length

expansion boards, if needed.

10. Install the PCI Express expansion board ("Installing an expansion board" on

page

55

).

11. Install the PCI riser board assembly.

IMPORTANT: The server will not power up if the PCI riser board
assembly is not seated properly.

12. Connect any internal or external cabling to the expansion boards.

13. Install the access panel ("Extending the server from the rack" on page

25

,

"Installing the access panel" on page

26

).
