Page 25: Av connectors
24
Connecting to a Video Camera

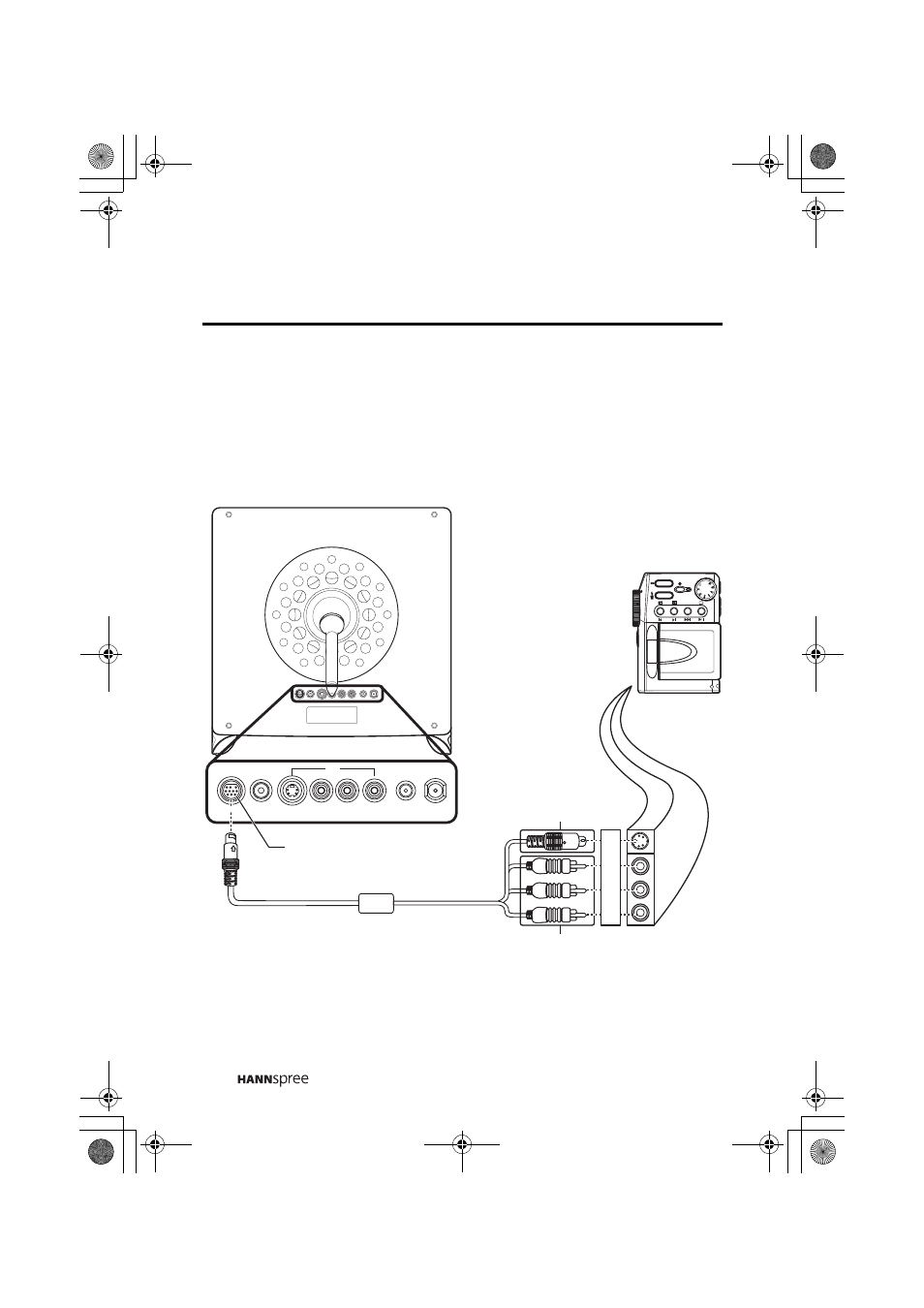

The following illustration shows you how to connect the TV to a
camcorder. Actual connections may vary according to the make and
model of the device. Refer to the user’s manual included with the
camcorder for more detailed instructions.
AV1
LINE OUT
ANT
DC-IN
VIDEO
L
R
S-VIDEO
AV2
WB
S
R
W
Y
B
4-in-1 cable
S-Video
Cables and connectors are color-
coded (black, red, white, yellow).
AV2
connector
Note: When connecting the S-Video connector
and AV connectors at the same time, the
priority is given to the S-Video connector.
AV connectors
