Sample Bar Codes
Use the following bar codes to verify decoding. Each bar code displays a text message on the screen when scanned.

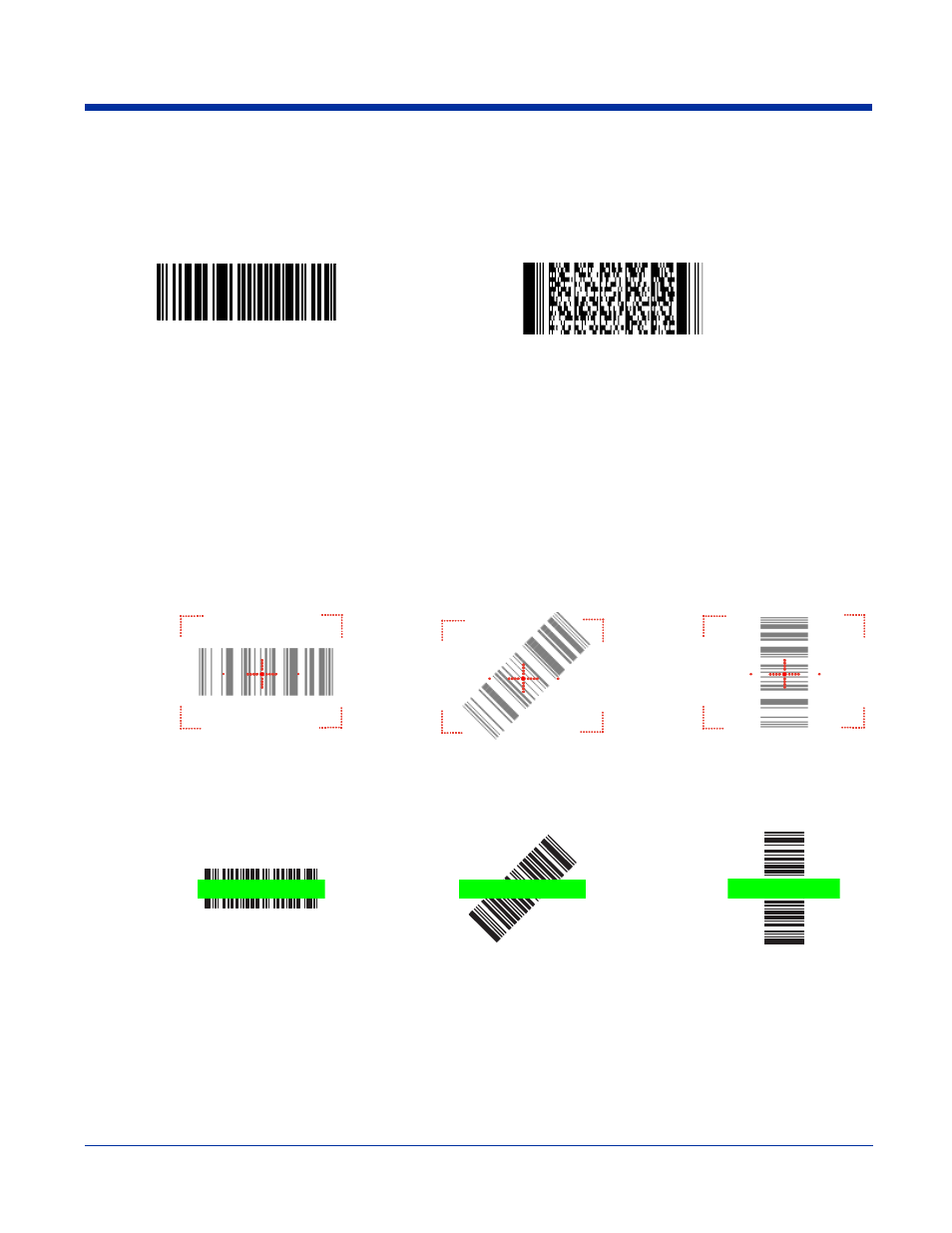

Omni-Directional Scanning
Dolphin terminals support omni-directional scanning.
In general, the aiming pattern or beam is smaller when the terminal is held closer to the bar code and larger when farther from
the bar code. Symbologies with smaller bars or elements (mil size) should be read closer to the terminal whereas larger bars or
elements (mil size) should be read farther from the terminal.
5300 High-Vis Aiming Pattern
The red high-vis aiming pattern frames the bar code.
5100 Green Aiming Beam
The green aiming beam projects outward in a straight line across the bar code.
Sample 128 Bar Code Sample PDF417 Bar Code
Text message: Code 128 Text message: PDF417 Test Message
