12 - 2
Battery Capacity Indicator LEDs
These LEDs give a readout of the remaining battery capacity after it has run through a complete analyze cycle. For
more information, see
Battery Capacity Indicator LEDs
Analyze Button
Press this button to start a battery analyze cycle; see
Status LEDs
A status LED is located above each of the four battery slots. The color of the LED indicates the charge status of the
batteries in its slot.

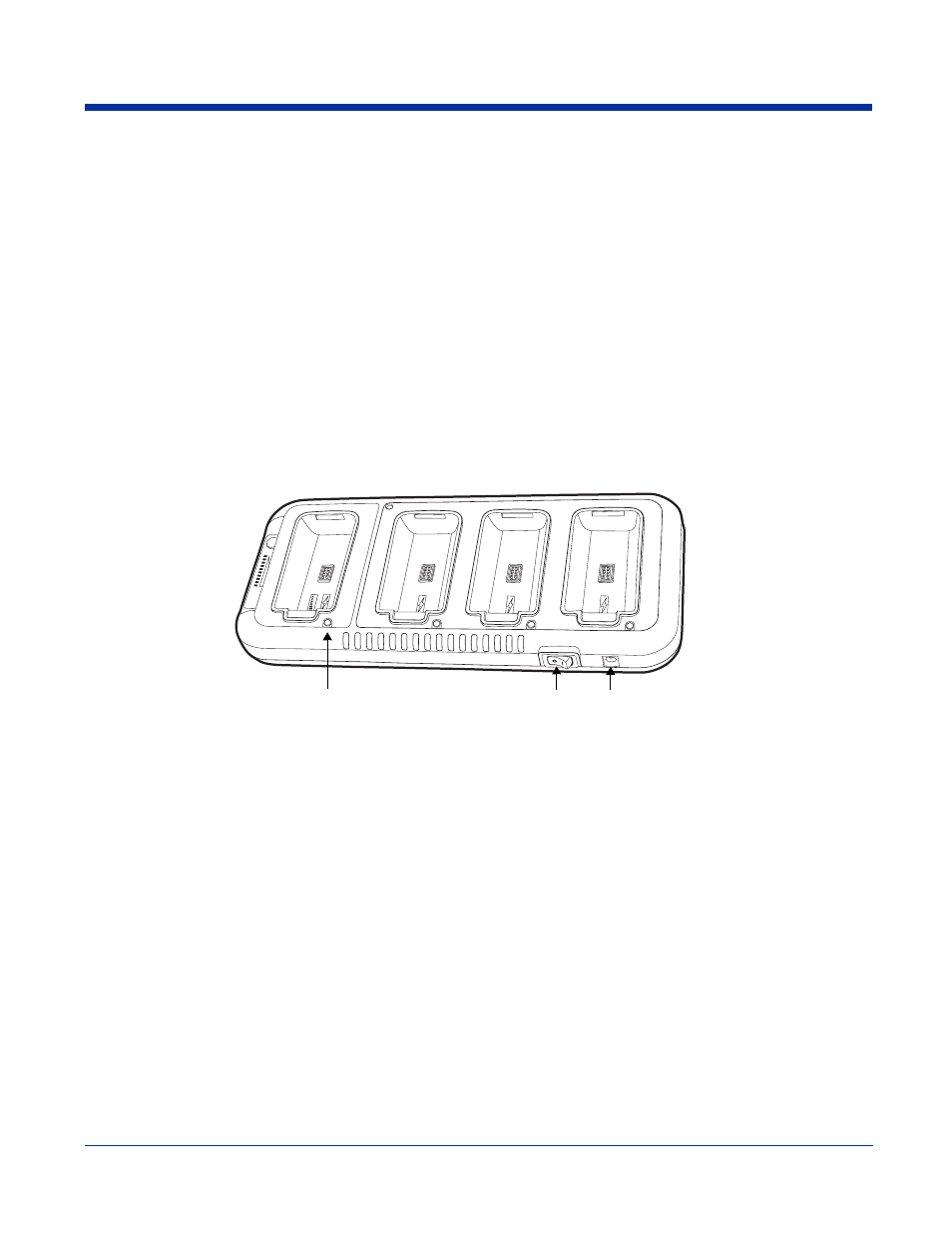

Rear Panel
Power Switch
Toggle the power switch to turn the QuadCharger on and off.
Power Supply Connector
Use this connector to attach the power supply to the QuadCharger. The universal power supply accepts input
voltages between 90-265 volts.
Status LED color
This color indicates that the battery in the slot…
Green
Has completed its charge cycle and is ready for use.
Orange
Is being charged at a maximum charge rate.
Red
Encountered an error during the most recent charge cycle.
1
2
3
4
Swc
O
CHARGE/ANAL YZE
0%
AL YZE
LOT 4
TTER
Y
P A
CITY
0%
Power Supply Connector
Power Switch
Status LED
