Heath Zenith DualBrite 5318 - Manual

© 2007 HeathCo LLC 595-5731-07
Models 5312 and 5318
D
ual
B
rite
® Motion Sensor
Light Control
TEST
2 Shells*
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• D
ual
B
rite
® Timer.
• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).
TEST 1 5 20
ON-TIME
Off 3 6 Dusk to
Dawn
D
ual
B
rite
® Put ON-TIME switch
on the sensor bottom
to TEST and the D
ual
-
B
rite ® switch OFF.
OPERATION
* resets to Auto Mode at dawn.
ON-TIME
TEST 1 5 20
... back on.
1 Second OFF
then...
Put the ON-TIME switch in the 1, 5,
or 20 minute position.
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 20
position.
Note: When first turned on wait about 1 1 /
2
minutes for
the circuitry to calibrate.

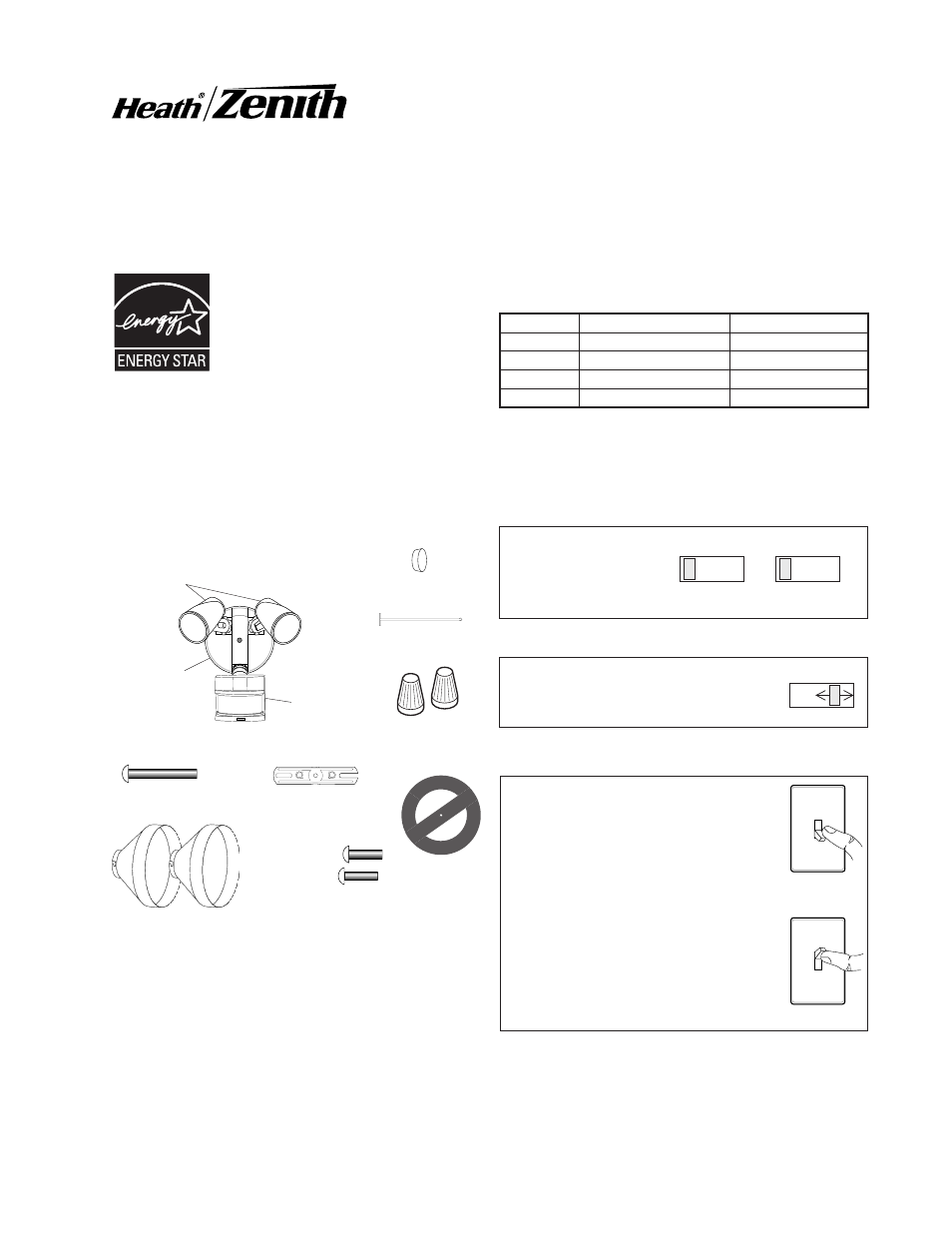

This package includes:
Light Control
Sensor
Cover
Plate
Bulb
Holders
Plastic Hanger
Rubber Plug
Gasket
6 Screws
(3 sizes included)
Mounting Strap
Mounting Bolt
2 Wire
Connectors
Requirements
• The light control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a
qualified electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
Meets the ENERGY STAR ® guidelines
when D
ual
B
rite ® function is off and
ON-TIME is 1 or 5 minutes and when
used with 120 W Max bulbs.
Mode: On-Time Works: Day Night
Test 5 Seconds x x
Auto 1, 5, or 20 Min x
Manual To Dawn* x
Accent 3, 6 Hr, to Dawn x
AUTO
MANUAL MODE
* Model SL-5318 only
