Page 16
Rev 3.01
6
Document 900.0399
08/08

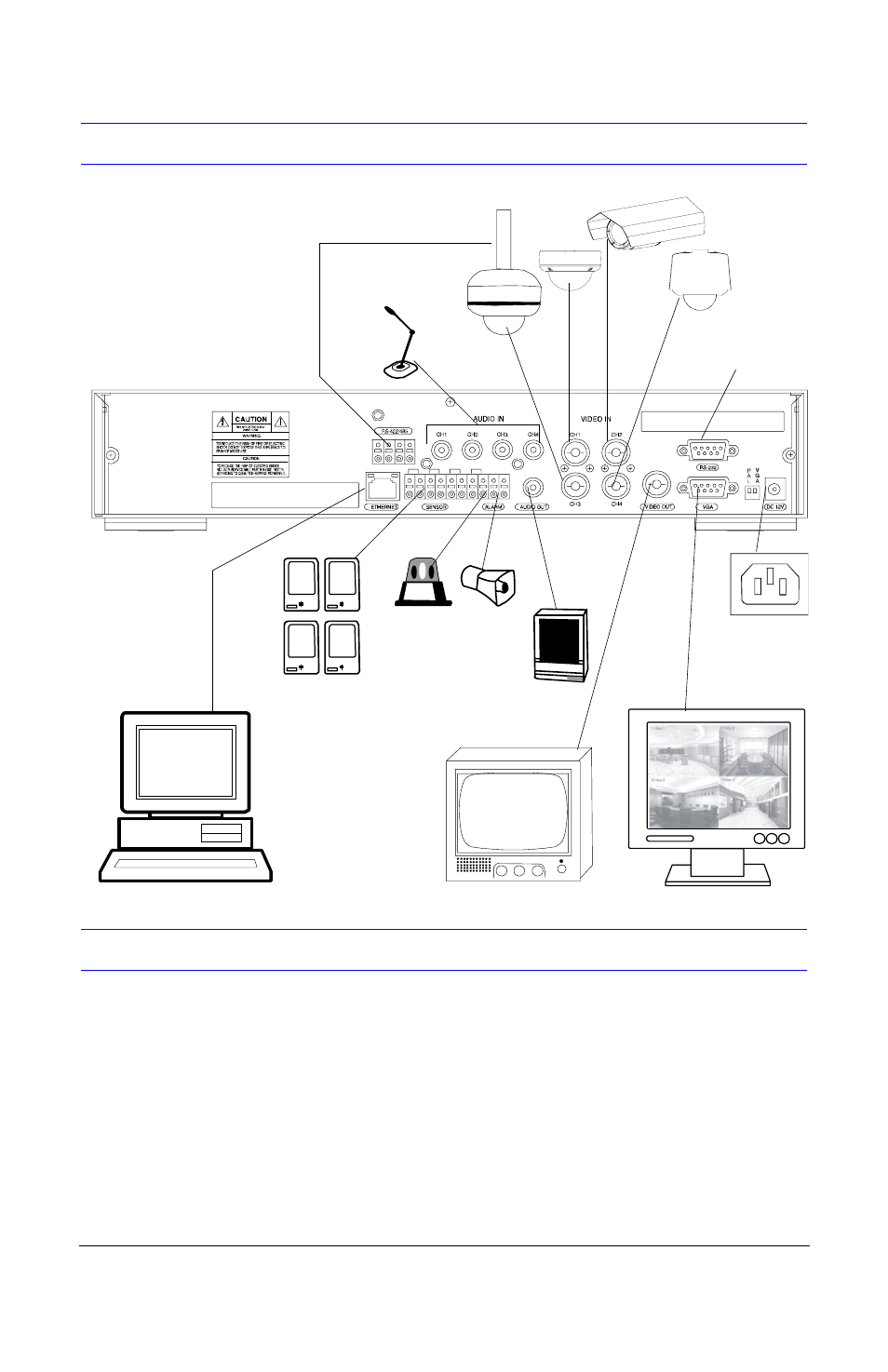

Typical DVR Installation
Setting the DVR for NTSC or PAL
Before turning on your DVR, set the switch (see
) to NTSC or PAL to match your
equipment. If your DVR is already powered, unplug the power cord from the wall outlet.
Wait a few seconds, set the switch (see
), and then re-apply power.
Note
You cannot mix NTSC and PAL equipment. For example, do not connect
NTSC cameras when your DVR is set to PAL. Similarly, do not connect a
PAL camera and an NTSC monitor.
Four Audio
Inputs
Audio Line
Output
Four Sensor
Inputs
LAN for Remote
Access Software
Connection
1 Internal Sensor
Output Relay
CCTV Monitor
VGA Monitor
Four Video Inputs for Cameras
RS-232 for
Engineering Use
To 12 VDC
Adapter
