Server component identification 12

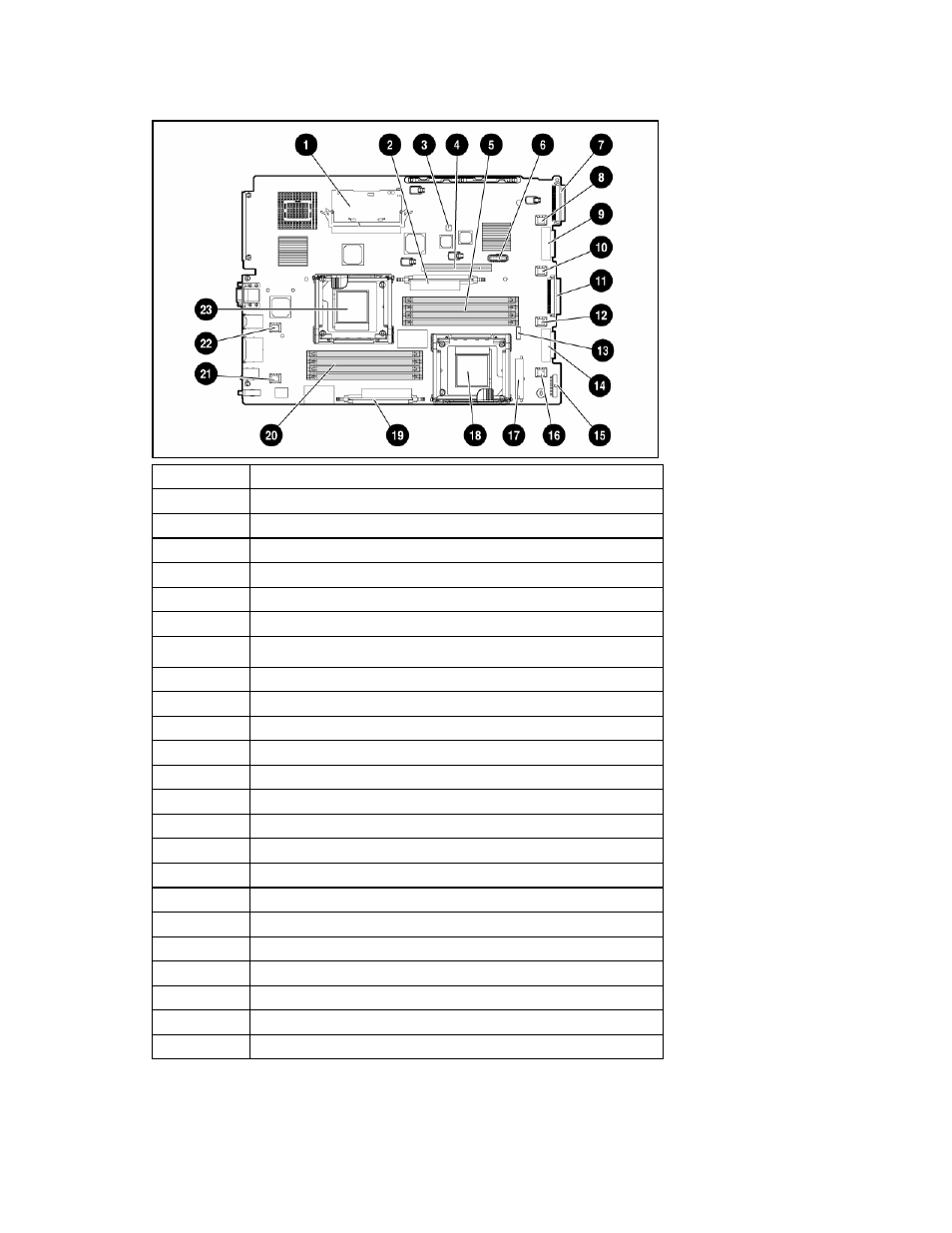

System board components
Item Description
1
Smart Array 6i Cache Module option
2 PPM for processor 1
3 NMI header
4 PCI riser cage connector
5 DIMM slots (5-8)
6 Remote management connector
7 SCSI connector (port 2) *
8 Fan connector
9 DVD/CD-ROM drive system connector
10 Fan connector
11 SCSI connector (port 1) *
12 Fan connector
13 System maintenance switch
14 Diskette drive system connector
15 Power supply signal connector
16 Fan connector
17 System power connector
18 Processor socket 2
19 PPM for processor 2
20 DIMM slots (1-4)
21 Fan connector
22 Fan connector
23 Processor socket 1
*This feature applies only to SCSI models.
