Havis-Shields C-VS-1200-F250-1 User Manual
Page 4
C-VS-1200-F250-1_INST_2-08
4

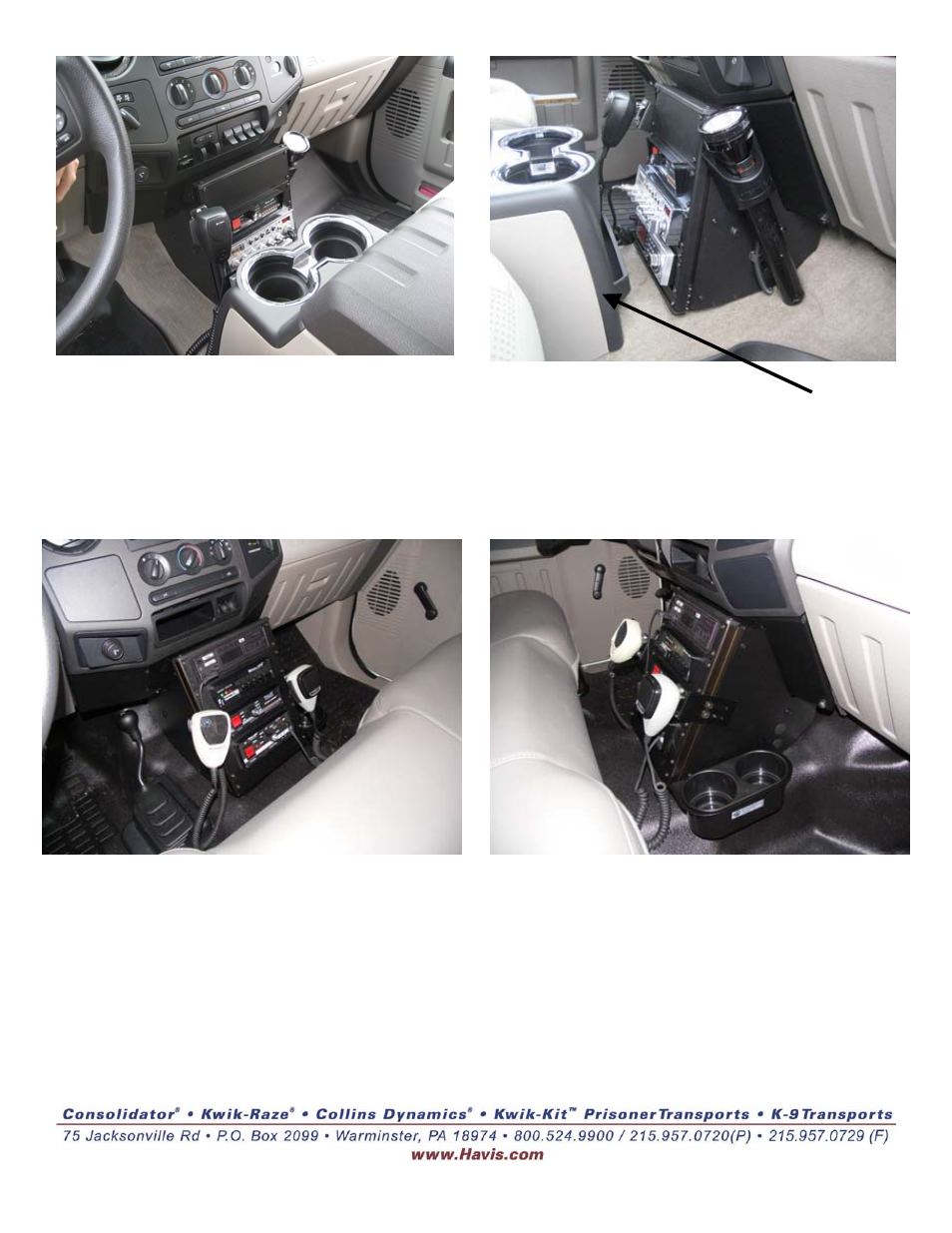

Wire and mount all control heads.
Note: Installation of lower faceplate screws may
require a T-20 Torx bit in a ratchet wrench with a ¼”
hex socket.
Optional cup holder model C-CUP2-E-C mounted
on side of console. Mount holes must be drilled in
desired location.
Optional Mic Clip brackets model C-MCB mount to
side accessory nuts.
If truck has OEM center console, it will be a
tight fit depending on control heads. This may
require installation of lower faceplates into
console prior to console housing mounting.
The cup holder on OEM console can be
temporarily removed to create more space during
installation. Remove two Phillips screws under
armrest and unclip gray plastic front cap.
