Havis-Shields C-VS-1200-F250-1 User Manual
Page 2
C-VS-1200-F250-1_INST_2-08
2
OEM Dashboard

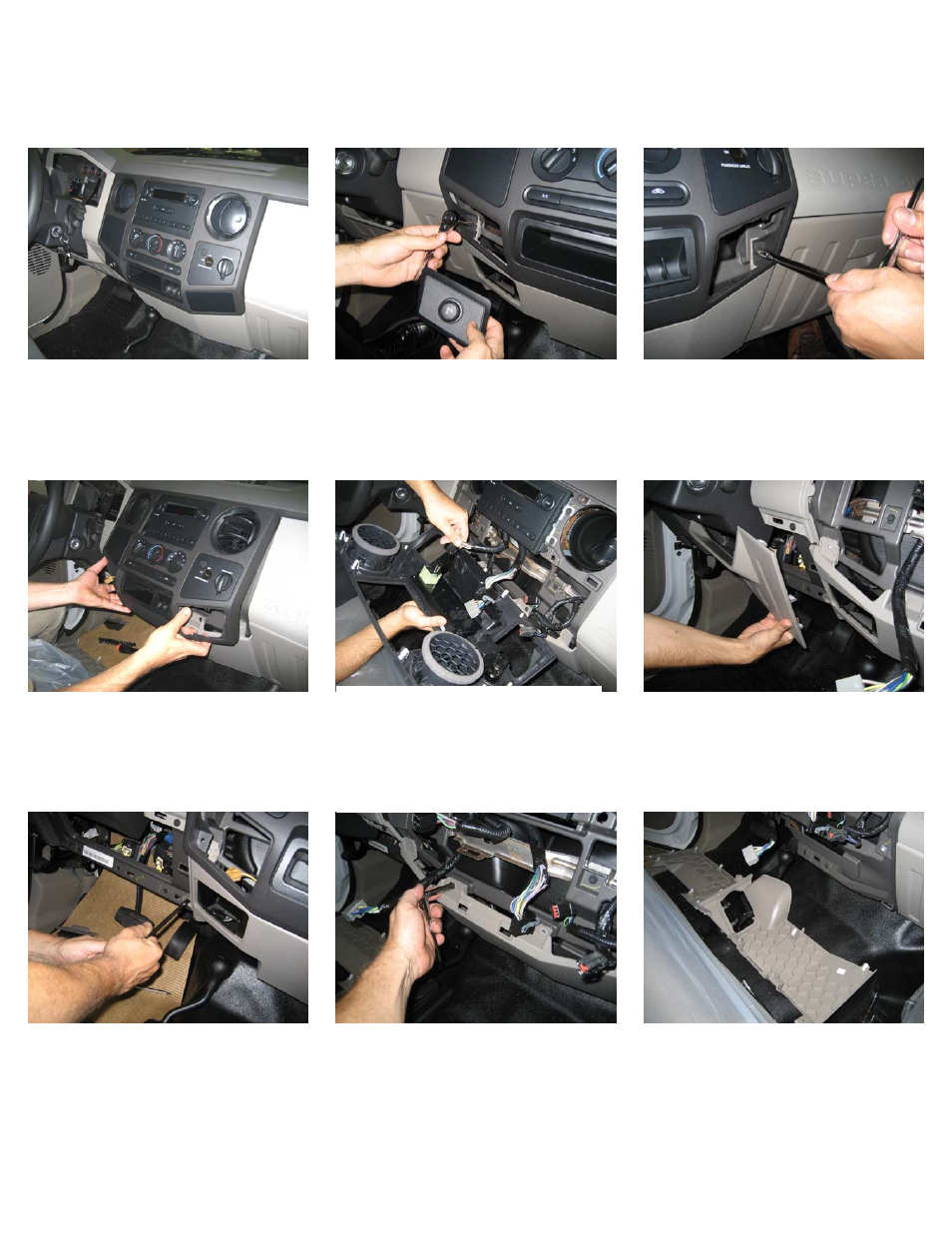

Carefully remove the small dash
panel that holds the lighter plug.
Use 7mm socket and remove dash
mount screw
Remove passenger side small
panel.
Use 7mm socket and remove dash
mount screw
Unplug and remove complete
upper dash panel.
Note: Installation can be done
without complete removal, but
install is easier when removed.
Detach lower dash panel under
steering column.
Carefully detach upper dash panel
assembly from spring clips.
Lower dash panels removed
Use 7mm socket and remove three mount screws for lower center dash panel
