Havis-Shields C-VS-1200-F250-1 User Manual
Page 3
C-VS-1200-F250-1_INST_2-08
3

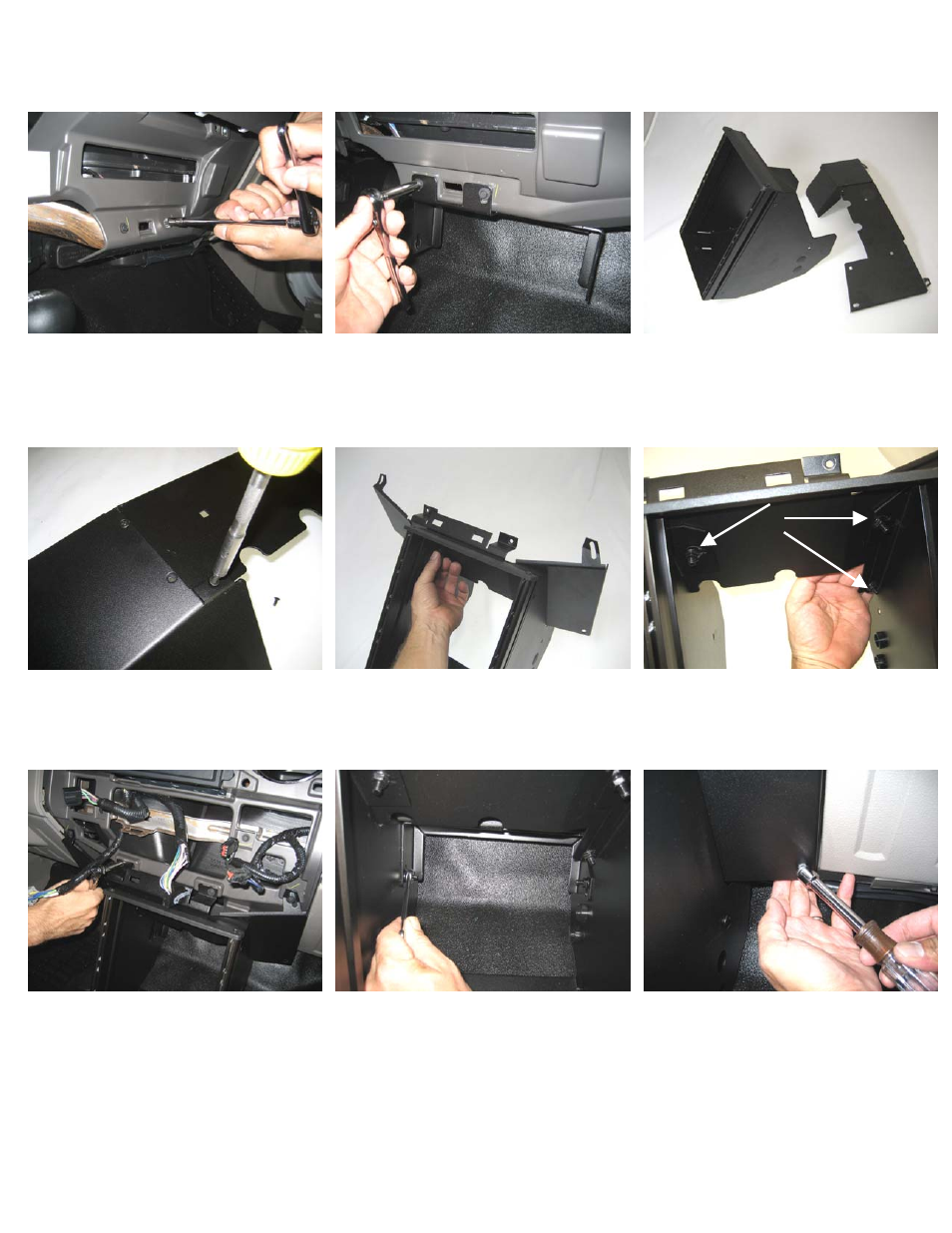

Assemble the two-piece dash
adaptor panel with three (3) #8 x
¼” Flat Head sheet metal screws.
Use 7mm socket and remove two center dash screws. Reuse these screws and
attach lower console bracket.
Console shipped unassembled
Attach dash panel to console housing with three ¼” x ½” carriage bolts and
flange nuts. Do not tighten yet.
Attach console assembly with two
OEM screws. Only attach two
center screws at this time
Attach console housing to lower
dash bracket with two ¼” x ½”
carriage bolts and flange nuts. Do
not tighten yet.
Attach Dash panel at lower
passenger side with ¼” x 1” Hex
bolt and flange nut. Reattach upper
dash panel and driver side lower
dash panel Use OEM dash screws
