Side/Sonar Combo View
(1197c SI Combo models only)
Side/Sonar Combo View shows regular sonar information and side imaging sonar information in a
combination split screen. You can perform any of the functions for either of these views, but only when
the view you want to control is selected as the active side (see Sonar X-Press™ Menu: Active Side or
Side Imaging X-Press™ Menu: Active Side for more information). You can also adjust the size of the left
side of a split screen (see Sonar X-Press™ Menu: Split Position or Side Imaging X-Press™ Menu: Split
Position for more information).
In this view, you can change which side you look at, the sensitivity of the sonar to allow you to see more
or less, the range of the side beams, the scrolling speed of the chart, and the color scheme of the display.
NOTE: See Side Imaging View and Sonar View for more information about each side of this view.
NOTE: This view is only available on 1197c SI Combo models.

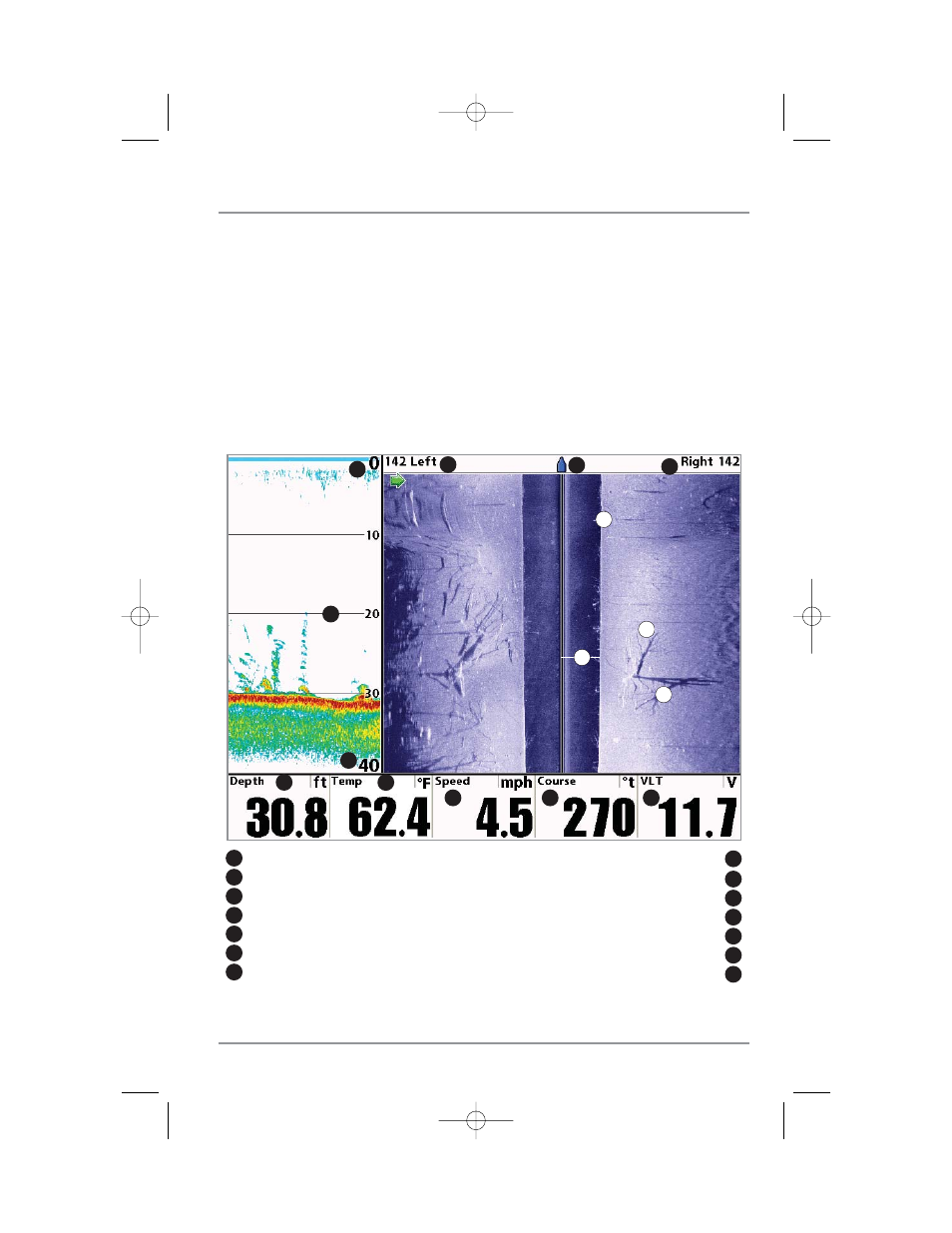

Side/Sonar Combo View
Side Imaging Range 9
Boat Icon 10
Bottom Return 11
Tree 12
Shadows 13
Water Column 14
1 2
3 4
Depth 1
Temp: water surface temperature 2
Speed: speed of boat 3
Course: the current direction the boat is traveling measured in degrees from North 4
VLT: Voltage 5
Upper Depth Range 6
Depth Lines 7
5
Lower Depth Range 8
6
8
7
9 9 10
11
13
12
14
71
