Finish Routing the Cable and Check GPS Receiver Operation
After installing a GPS receiver, you should perform the following procedure to finish routing the GPS cable
to the control head and to check to make sure that the control head is working correctly.
1. Secure the cable along its path to the control head as needed with cable ties.
2. Plug the GPS receiver cable into the Communications port on the control head. See Testing the
System Installation to use the System Status start-up option and/or the GPS Diagnostic View to
confirm a good installation.
Transducer
Cable Collector Cover
4
5
Cable Collector Insert 6

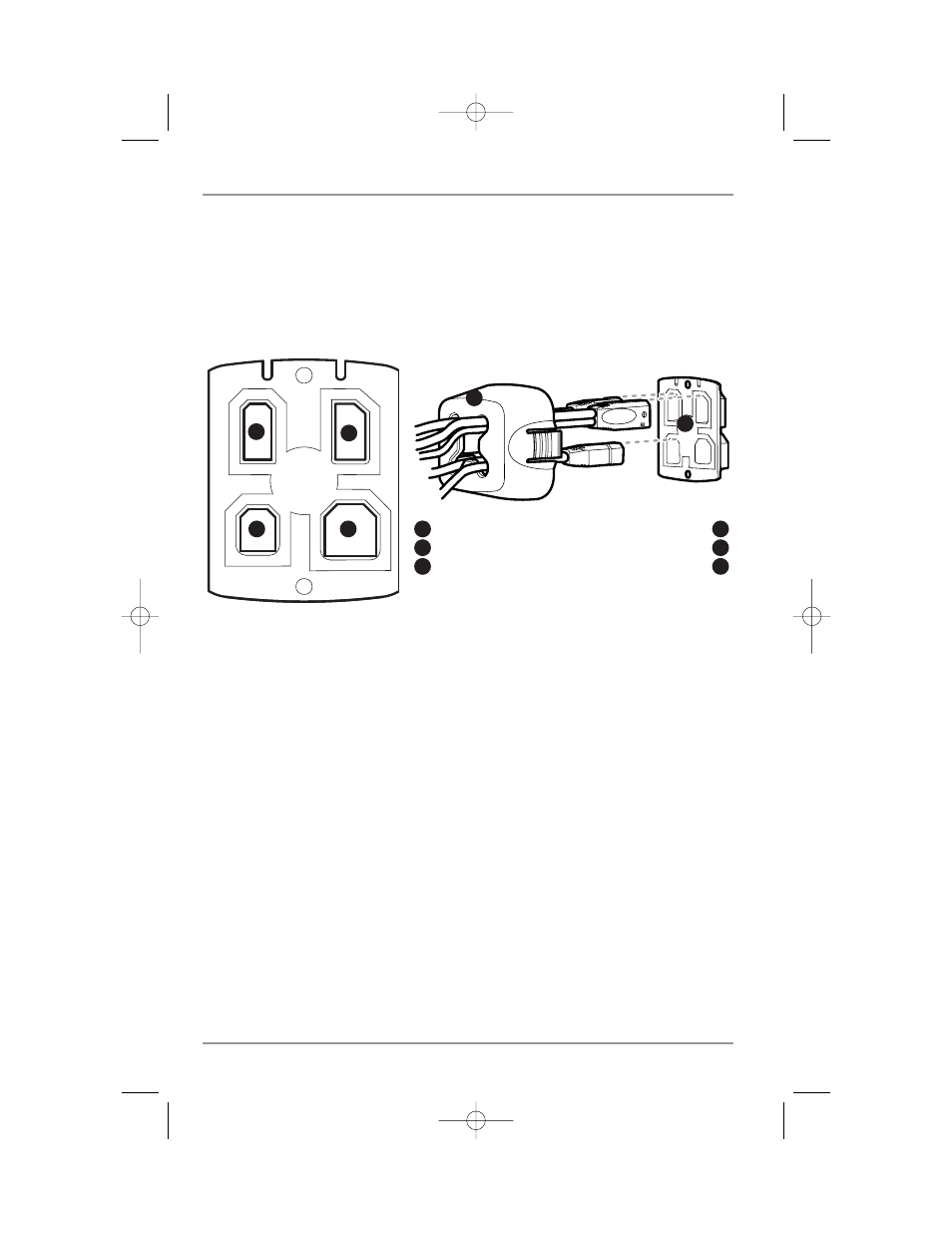

Inserting the Cables into the Cable Connector Insert
1 2
3 4 Power
Communications
1
2
Temp/Speed 3
5
6
42
