Step 2: Connect the ADF 1-6
..
....
...
....
....
...
....
...
....
....
...
....
....
...
....
...
....
....
...
....
....
...
....
....
...
....
...
....
....
...
....
....
...
....
...
..
..
....
...
....
....
...
....
....
...
....
...
....
....
...
....
....
...
....
...
....
....
...
....
....
...
....
...
....
.
8 Hold the ADF connector cable so that the arrow on
the plug is on top. This helps you align the pins in the
plug with their holes in the socket on the scanner.
9 Attach the ADF connector cable by pushing it firmly
all the way into the round accessory connector socket
on the back of the scanner.

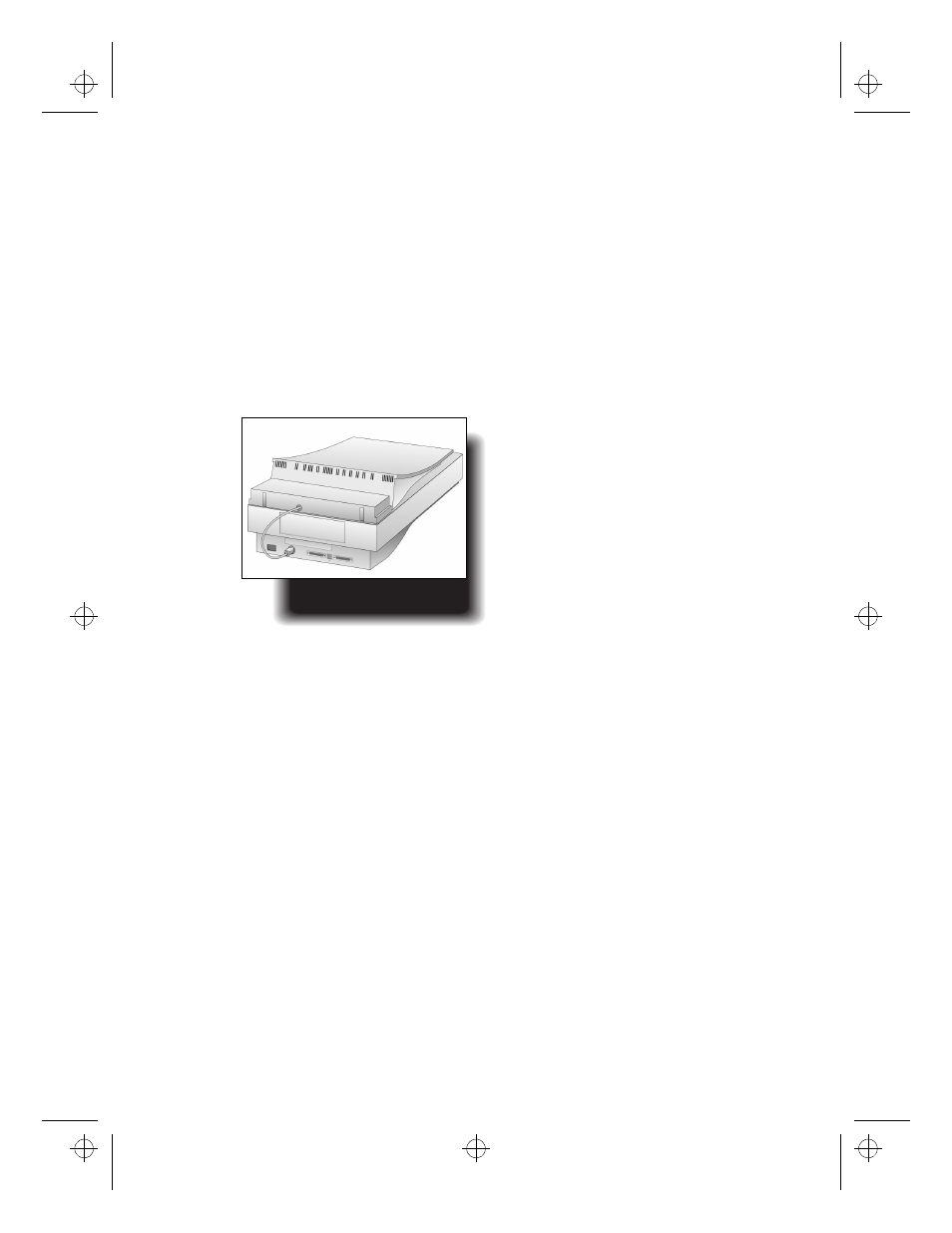

You may need to tip the scanner/ADF assembly on its
side to connect the cable:
10 Plug the scanner’s power cord into the electrical
outlet to turn on the scanner.
Note Never connect or remove the ADF from the
scanner unless the scanner’s power cord
is unplugged from the electrical outlet.
Attaching the ADF
connector cable
