Replacing the ADF Window 3-4
..
....
...
....
....
...
....
...
....
....
...
....
....
...
....
...
....
....
...
....
....
...
....
....
...
....
...
....
....
...
....
....
...
....
...
..
..
....
...
....
....
...
....
....
...
....
...
....
....
...
....
....
...
....
...
....
....
...
....
....
...
....
...
....
.
R e p l a c i n g t h e
A D F Wi n d o w
If the ADF window becomes scratched or uncleanable,
you may need to replace it. Order the ADF window from
Hewlett-Packard (see “Ordering Parts and Supplies” on
page 3-7).
To remove the ADF window:
1 Remove the ADF from the scanner (see “Removing
the ADF” on page 3-6).
2 Lift the input tray of the ADF to expose the
ADF window.
3 Using a small
coin, push
each of the
four Z-shaped
hooks until
the tab snaps
out of
position. Push
the long,
pointed tab on
the end of the
window.
The ADF window is
free to pull out:

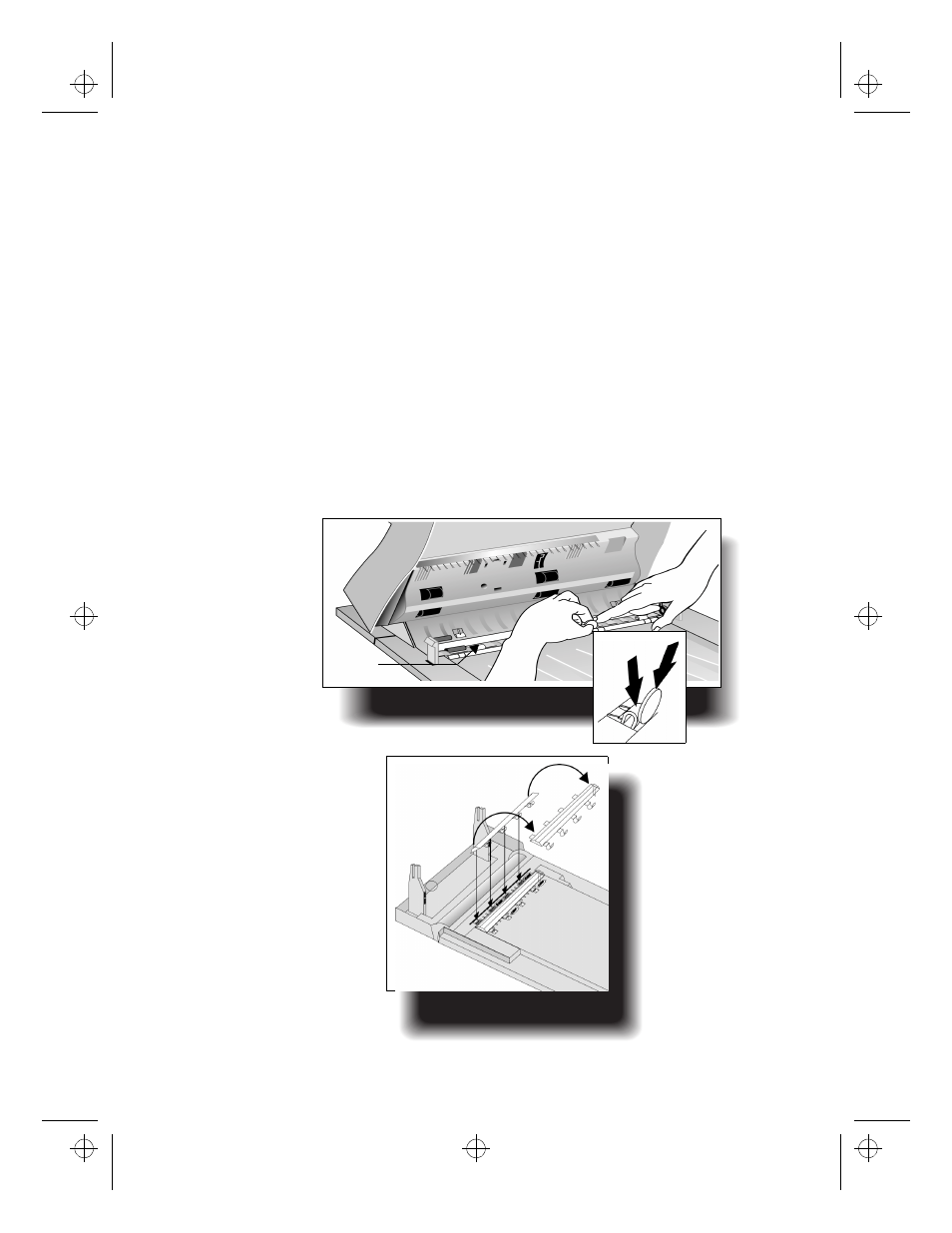

Removing the ADF window
Pushing the Z-shaped hooks
Z-shaped
hook
