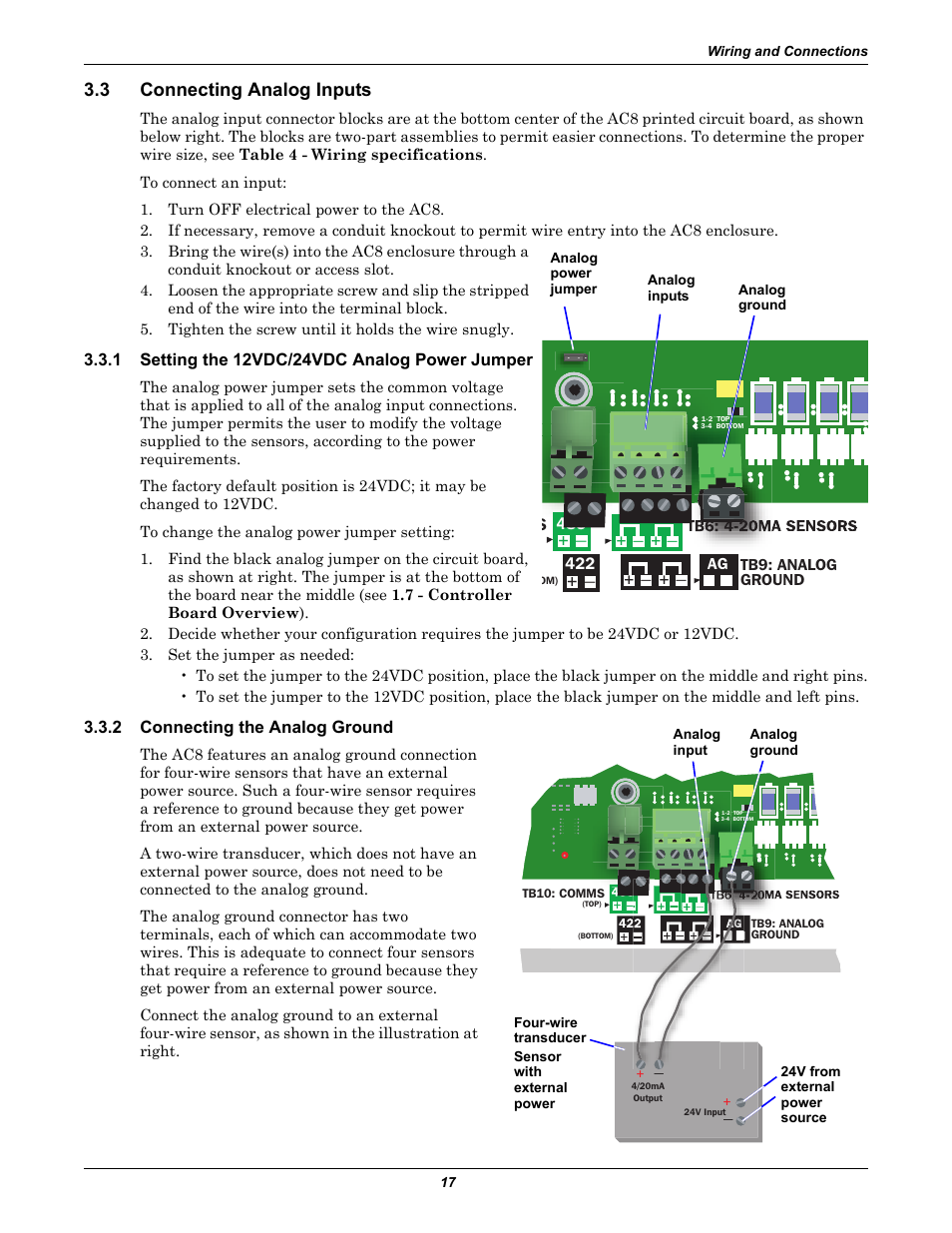

3 connecting analog inputs, 1 setting the 12vdc/24vdc analog power jumper, 2 connecting the analog ground – Emerson Autochangeover Controllers AC8 User Manual
Page 25: Connecting analog inputs, Setting the 12vdc/24vdc analog power jumper, Connecting the analog ground, Setting the 12vdc/24vdc, Analog power jumper
3 connecting analog inputs, 1 setting the 12vdc/24vdc analog power jumper, 2 connecting the analog ground | Connecting analog inputs, Setting the 12vdc/24vdc analog power jumper, Connecting the analog ground, Setting the 12vdc/24vdc, Analog power jumper | Emerson Autochangeover Controllers AC8 User Manual | Page 25 / 128
