Cable, CompactFlash and Accessory Specifications
A-6
Copper/Fiber-optic Ethernet NIMs
The single-port Copper or Fiber-optic Ethernet NIMs, shown in
and
provide interfaces for half and full-duplex 10/100Base-T or fiber-optic 100Base-F transmission
over LAN or WAN networks, respectively. The Copper Ethernet NIM incorporates a standard 8-
pin modular RJ-45 connector and the Fiber-optic Ethernet NIM has an MT-RJ multi-mode
interface. Both NIMs conform to IEEE 802.3 and PCI 2.2 standards.

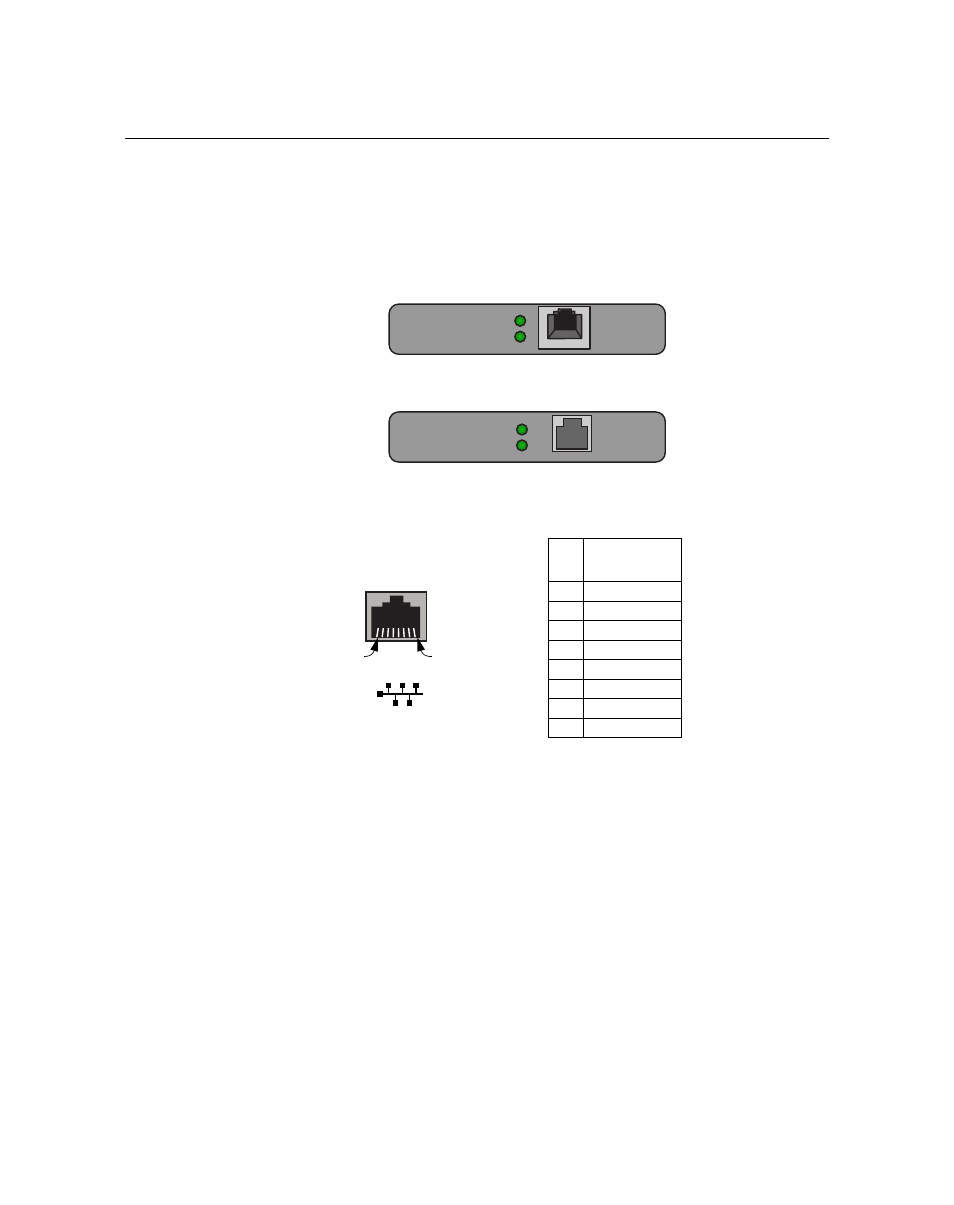

Figure A-3 Copper Ethernet NIM
Figure A-4 Fiber-optic Ethernet NIM
Refer to
for Copper Ethernet NIM pinout assignments.
Figure A-5 Copper Ethernet NIM Port Pinouts
Regulatory/Safety Compliance
The Copper and Fiber-optic Ethernet NIMs comply with these requirements: IEE 802.3, UL 1950,
CSA No. 950, EN 60950, and IEC 950 (CB Scheme Report).
AC
T
LINK
NIM- ETHR-
01
NIM-
FIBR-
01
AC
T
LINK
Pin
Copper
Signal
1
Tx Data +
2
Tx Data -
3
Rx Data +
4
Not Used
5
Not Used
6
Rx Data -
7
Not Used
8
Not Used
Pin 1
Pin 8
Eth 1 (Copper)
