Cable, CompactFlash and Accessory Specifications
XSR Getting Started Guide A-21
CompactFlash Memory Card
The optional plug-in CompactFlash (CF) memory card, shown in
, comprises a single
chip controller and flash memory modules in a matchbook-sized package with a 50-pin, PCMCIA
connector consisting of two rows of 25 female contacts each.
The PCMCIA male interface supports both Type I and Type II CF cards. Note that the CF release
mechanism pops out when you install the card. For installation instruction, refer to “Hardware
Installation” on page -1.

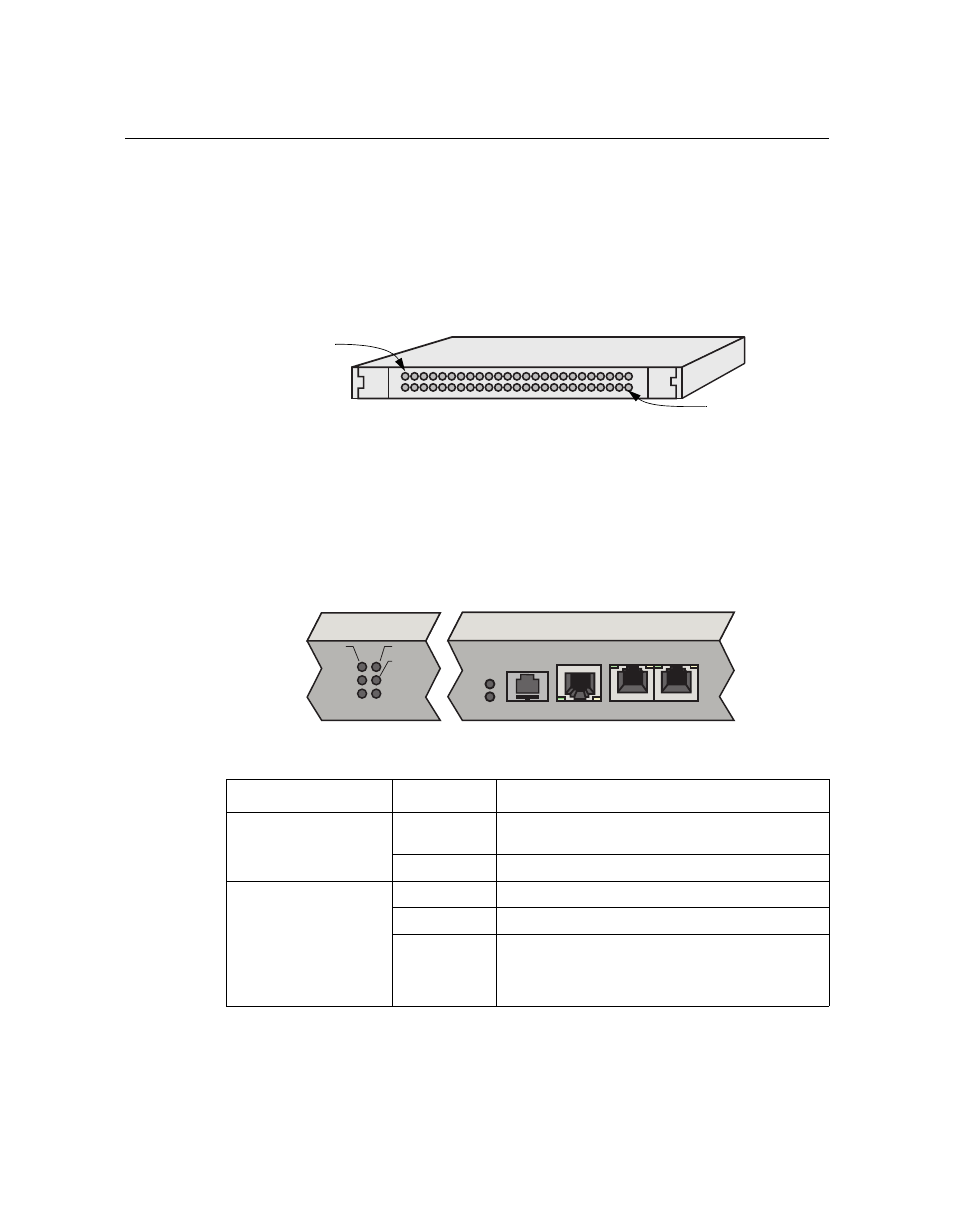

Figure A-27 CompactFlash Memory Card
Figure 1 CompactFlash Memory Card
LED Behavior
The 14 LEDs on the XSR front panel display system and port status as described in
six system LEDs are illustrated to the left and the eight GigabitEthernet LEDs to the right in
. Note that Link and TX (transmit) green LEDs are provided for the GBIC port while
each GigabitEthernet port has one green and one amber LED.
Figure A-28 XSR LEDs
Pin 50
Pin 1
Table A-3 LED Description
LED
State
Function
NIM 1, NIM 2
ON
T1/E1, ISDN or HSSI card is present and power-up
diagnostics test passed
OFF
NIM slot empty or power-up diagnostics test failed
SYS(tem Status)
ON
XSR is operational
OFF
Faulty hardware or Bootprom
Blinking
Flash update is in progress (software image
downloading), warning you not to power down the XSR.
Powering down now can leave the branch router without
valid software.
COM
PWR
SYS
NIM1
NIM2
VPN
1000
GBIC
Link
TX
ETH3
ETH2
ETH1
10/100/1000
10/100/1000
