Installing a CompactFlash Memory Card
XSR Getting Started Guide 2-5
Installing a CompactFlash Memory Card
An optional CompactFlash (CF) memory card provides additional non-volatile storage
capabilities in various increments. The CF’s controller interfaces with a host system allowing data
to be written to and read from the CF’s flash memory module. The XSR supports Type I and II
CompactFlash card types. Refer to
Figure 2-6 for a generic illustration of the card.
The CF’s memory is large enough to store image files. You can do so simply by using the Bootrom
Monitor mode
copy command. For example, to copy a file from the Onboard flash: directory to the
cflash: directory while in the flash: directory, enter:
XSR>copy cflash:

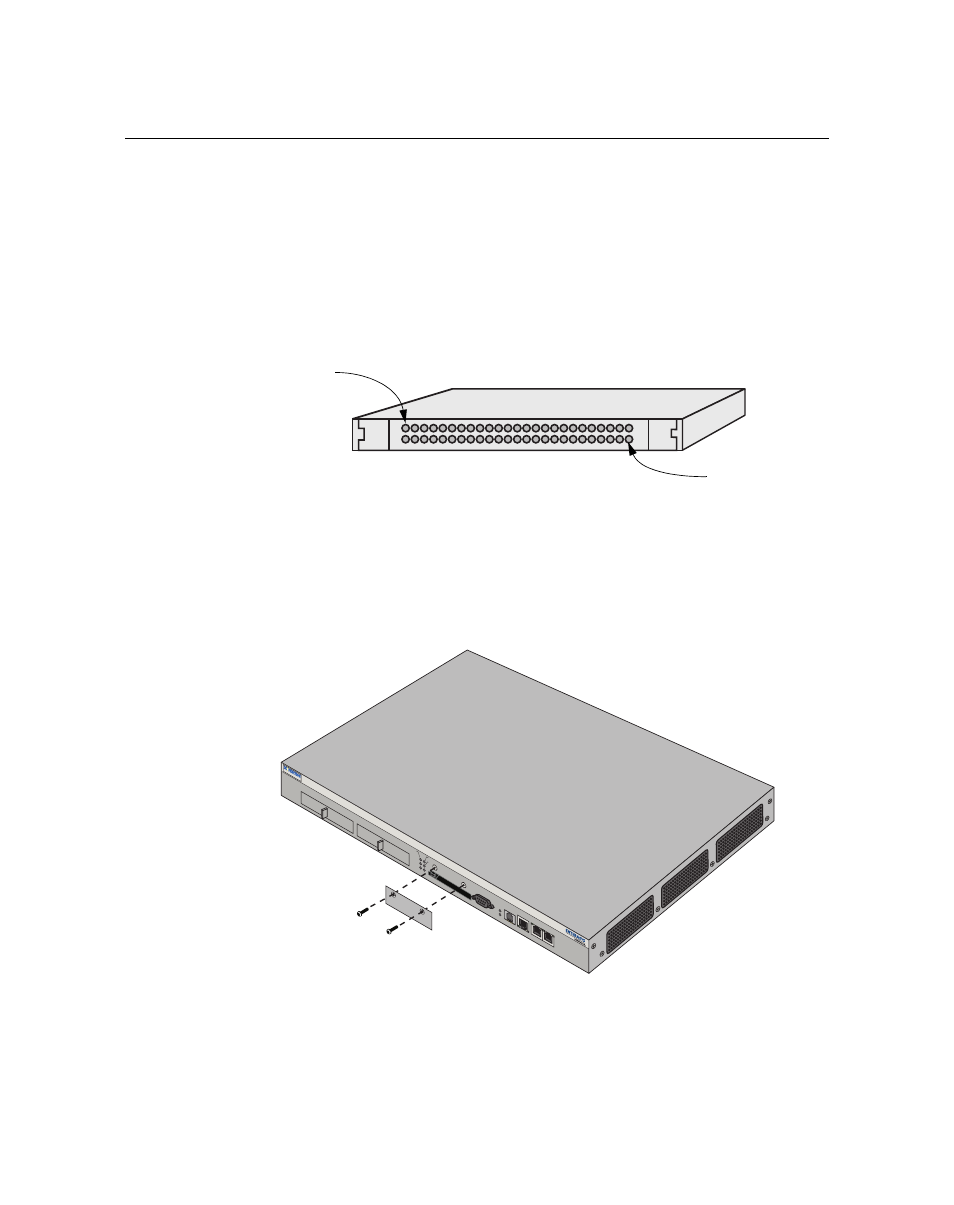

Figure 2-6 Typical CompactFlash Card
CompactFlash Card Installation
Follow the steps below to install the CompactFlash card:
1. If your CF is already formatted, first remove the cover plate as shown in Figure 2-7 . If it is not
formatted, jump to “Formatting the CompactFlash Card” on page 2-6.
Figure 2-7 Removing CompactFlash Cover Plate
Pin 50
Pin 1
NIM 1
NIM 2
1000
GBIC
Link
TX
10/100/1000
10/100/1000
SEC URIT Y RO UTE RS
XSR
-302 0
COM
PWR SYS
NIM 1
NIM 2 VPN
COM
ETH 3
ETH 2
ETH 1
