显示面板——仪表板
专用按钮
指示灯
短按指示灯按钮可将 Quadra 灯头指示灯开启 15 秒。数值可更改为 1~60 秒。长按可使
LED 指示灯长亮,直至电量耗尽。
菜单功能
显示面板——主菜单
4
5
6
7
8
9
10
11
12
13
14
15
17
16
1
2
3
Flash function
Flash function value
Increase selected f-stop
Flash test
Decrease selected f-stop
Power of outlet A in f-stop
Total power in f-stop
Power of outlet B in f-stop
10
11
12
13
14
15
16
17
EL-Skyport synchronisation speed
EL-Skyport frequency channel
EL-Skyport group number
Photocell status
Ready beep
Recycling time
Battery level
Power in J
Pilot lamp timer
1
2
3
4
5
6
7
8
9

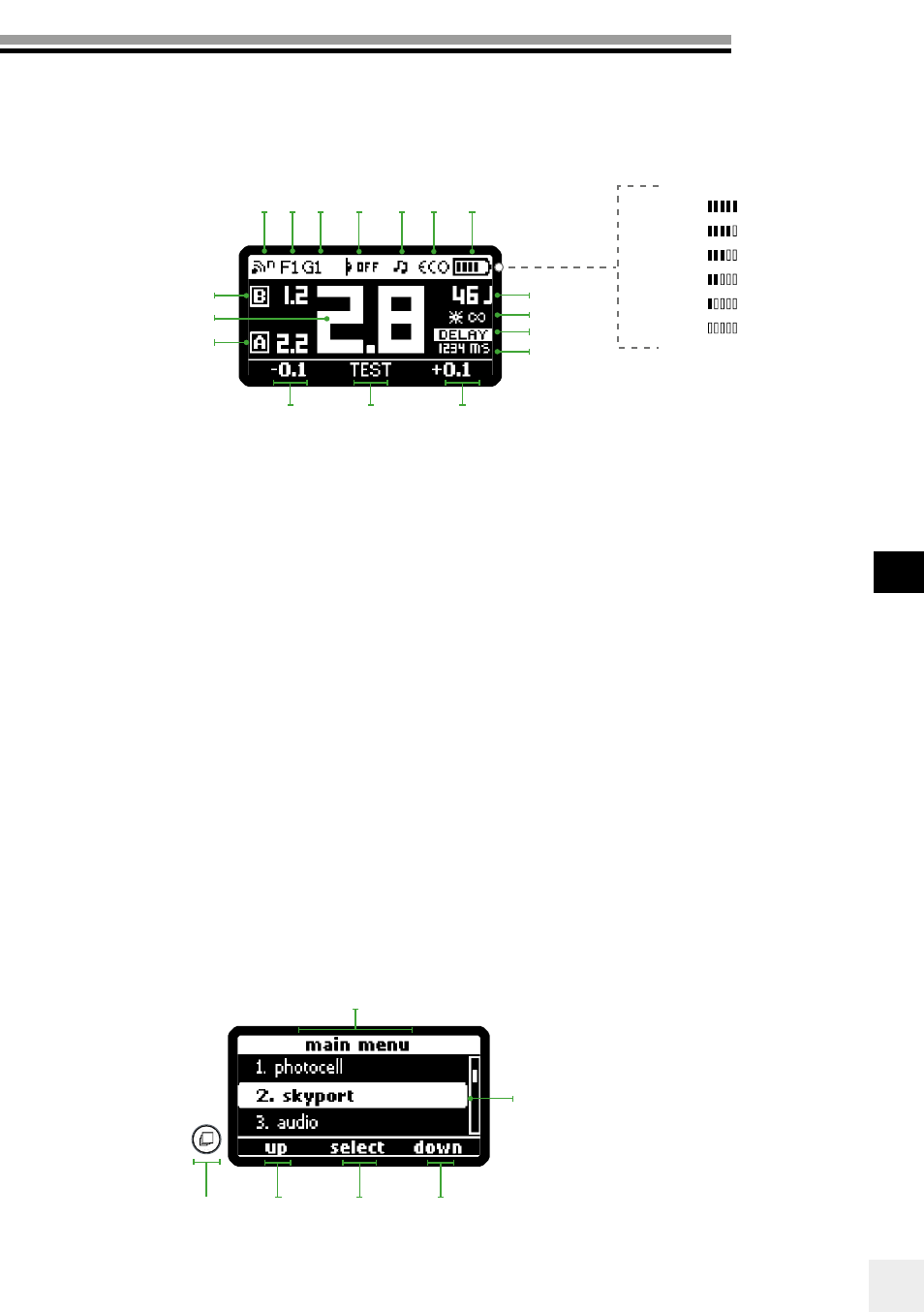

DISPLAY PANEL - DASHBOARD
> 85%
70% ~ 85%
55% ~ 70%
40% ~ 55%
20% ~ 40%
< 20%
DISPLAY PANEL - MAIN MENU
1
2
3
4
5
1
2
3
4
5
6
Menu title
Menu selected
Scroll down
Enter
Scroll up
Back to menu (Short press)
Back to dashboard (Long press)
