1.3 Interface and Parameters

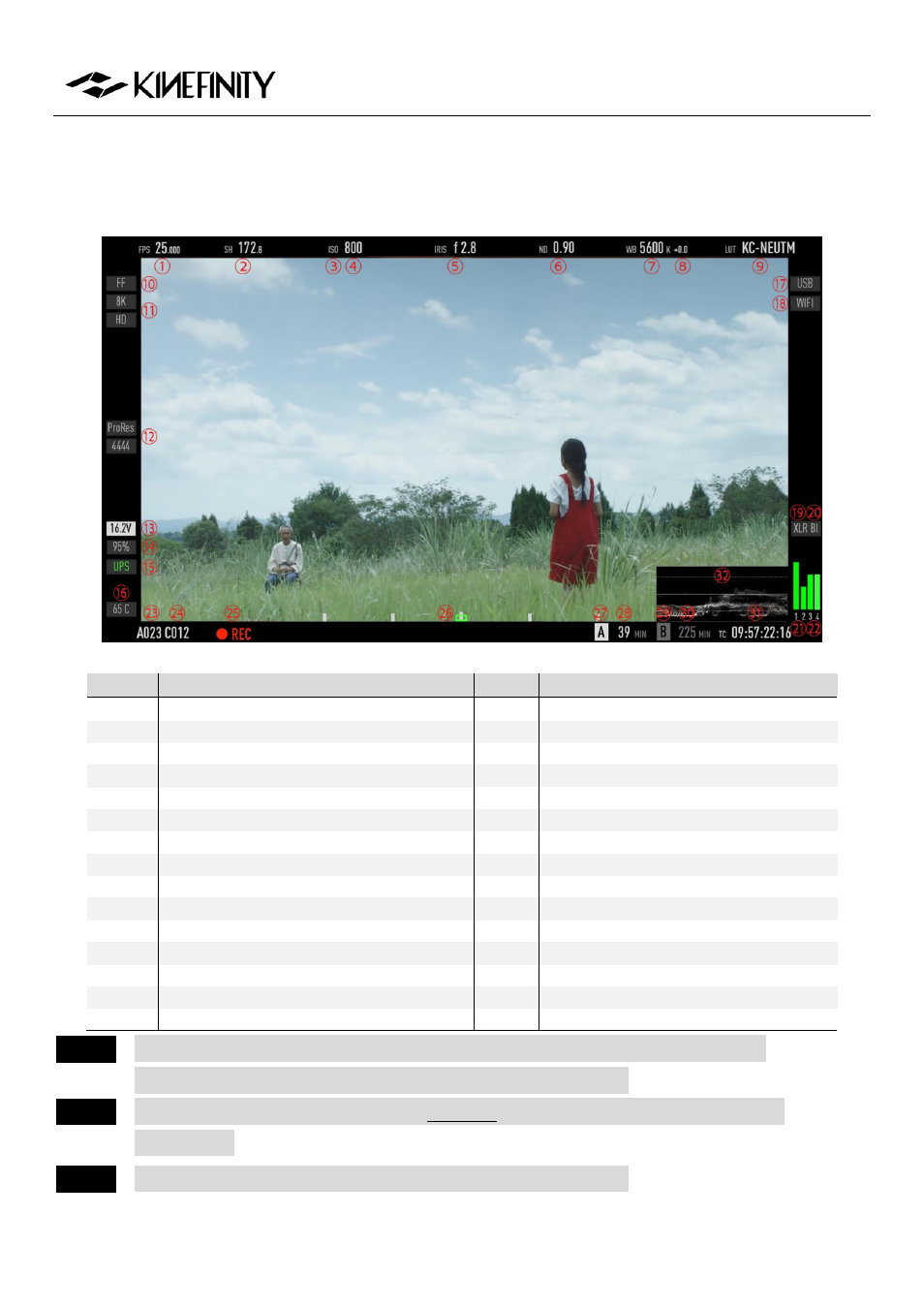

After booting up, the camera enters Live View mode: parameters of the current scene display on the screen.
# Name # Name
1 CMOS Imaging Sensor FPS 16 Real-time Core Temperature
2 Shutter Speed/Shutter Angle 17 USB Indicator
3 Exposure Mode 18 WIFI Indicator (When WIFI is connected)
4 ISO/EI ASA 19 CH1/2 Audio XLR Indicator
5 Iris Number (If applicable) 20 CH3/4 BI/3.5mm MIC Indicator
6 ND Value (Only with ND on) 21 CH1/2 VU Meter
7 Color Temperature 22 CH3/4 VU Meter
8 Tint 23 Roll Number
9 Monitoring LUT 24 Clip Number
10 Image Format 25 Record Indicator
11 Record Resolution 26 Digital Horizon
12 Codec 27/29 SSD A/B Indicator
13 Real-time Power Voltage 28/30 SSD A/B Status/Capacity
14 KineBAT Remaining Capacity 31 Time Code
15 UPS Indicator 32 Waveform
NOTICE CMOS Imaging Sensor FPS is the actual capturing FPS of the CMOS imaging sensor;
Project FPS is the playback FPS of the footage in post-production.
NOTICE EF Iris control is only for lenses on the White list; other lenses might not be recognized
or controlled.
NOTICE Clean image output: set by [Menu  Setting  Main Screen  Brief].
