1. CAMERA OVERVIEW
1.1 Interfaces and Buttons
The native mount is KineMOUNT, which works wit
to adapt different lenses.

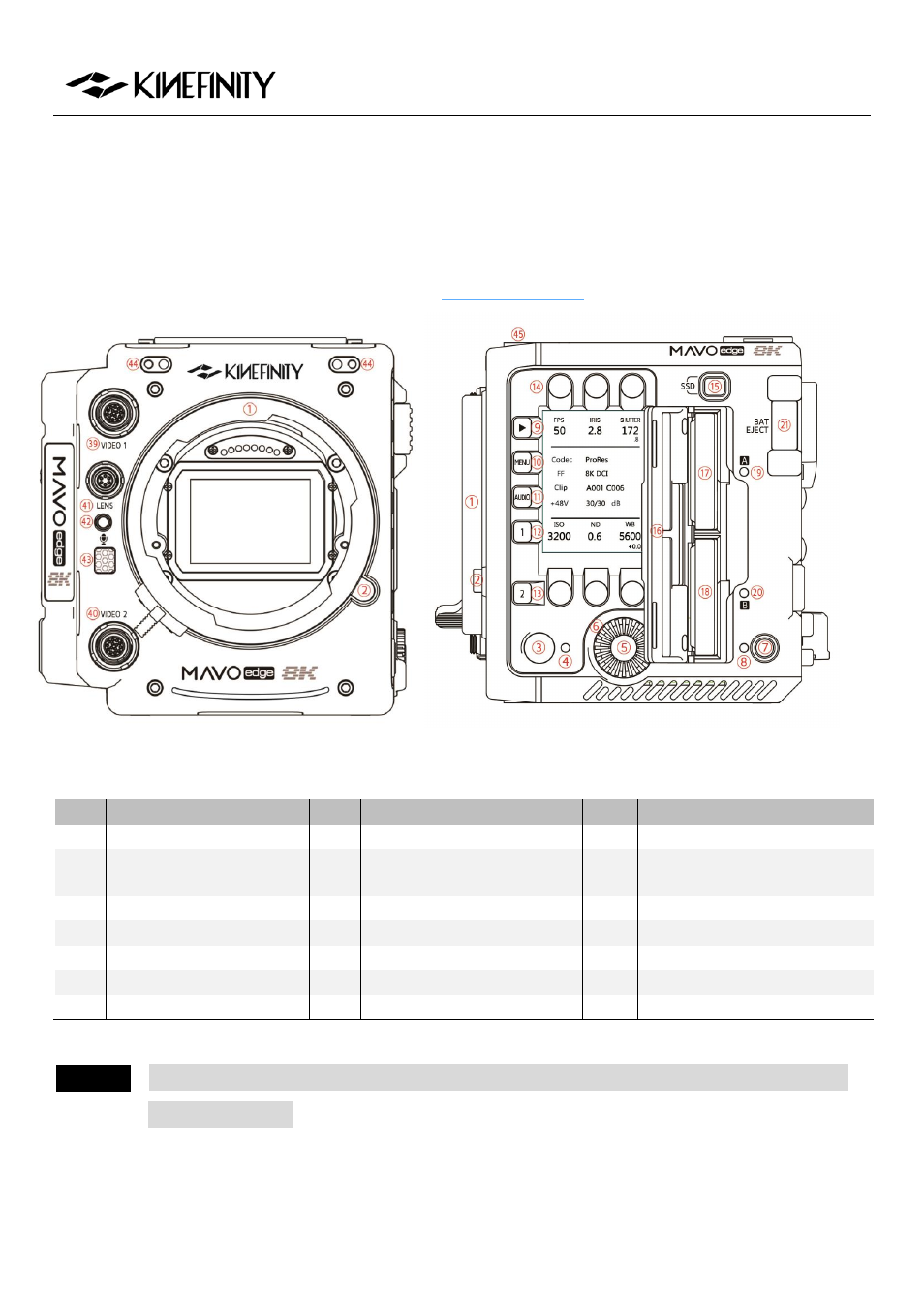

Camera Front (KineMOUNT)
Camera Left (KineMOUNT)
#
Name
#
Name
#
Name
1
KineMOUNT
8
Power Status LED
15
SSD Button
2
KineMOUNT Release
Button
9
Playback Button
16
SSD Door
3
Record Button
10
MENU Button
17
SSD A
4
Camera Status LED
11
AUDIO Button
18
SSD B
5
Wheel Button
12
LUT/Preset List
19
SSD A Status LED
6
Wheel
13
Zoom Button
20
SSD B Status LED
7
Power Button
14
FPS/Iris/Shutter/ISO/ND/WB
21
V-Mount Battery Release Button
CAUTION
Never cover the air intake at the rear of the body and the air vent at top of the body when the
camera is powered.
