HP L7016t 15.6" Retail Multi-Touch TN Monitor User Manual
Page 13
3.

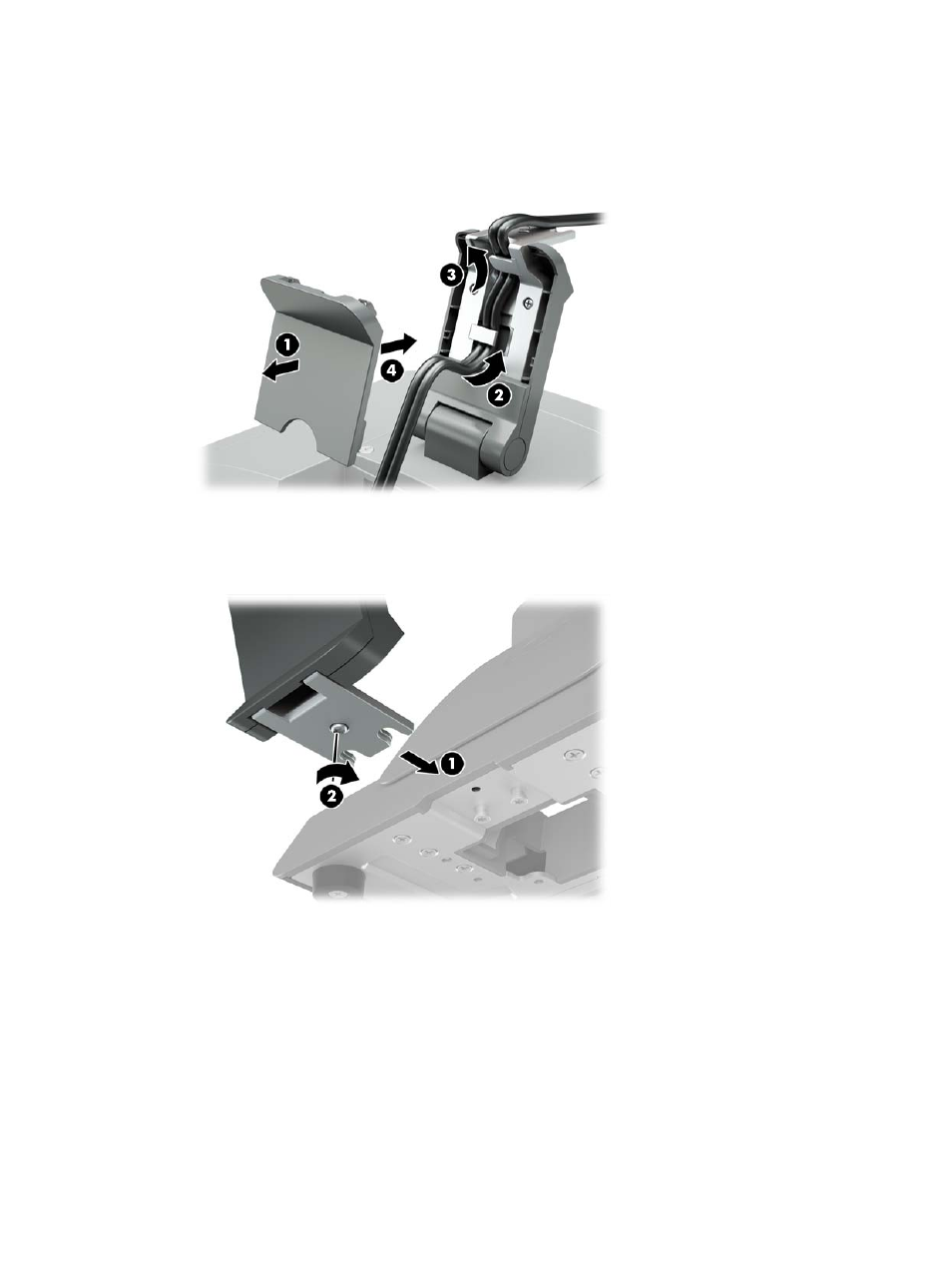

To route the cables on the arm mounting bracket, snap off the routing cover on the front of the arm (1)
and attach the cables to the rear I/O on the monitor. Route the cables through the center retainer on the
arm (2) and then through the bottom retainer (3), and then snap the routing cover onto the arm to cover
the cables (4).
4.
Lay the retail system computer face down on a flat surface covered by a soft clean cloth.
5.
Slide the arm mounting bracket onto the underside of the retail system computer base (1), and then
secure the bracket with the screw (2).
Setting up the monitor
7
