Page 35
35
Note:
The projector converts the digital audio signal sent from your video source into a mono analog
signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.
Note:
If you have problems hearing audio through the HDMI connection, you can use one of the
projector's audio ports instead to play sound. Connect one end of an optional 3.5 mm stereo mini-jack
audio cable to one of the projector's audio ports and the other end to your computer's audio out port.
Then select the audio port you connected to as the
HDMI1 Audio Output
or
HDMI2 Audio Output
setting in the Signal I/O menu.
Parent topic:
Related references
Input Signal Settings - Signal I/O Menu

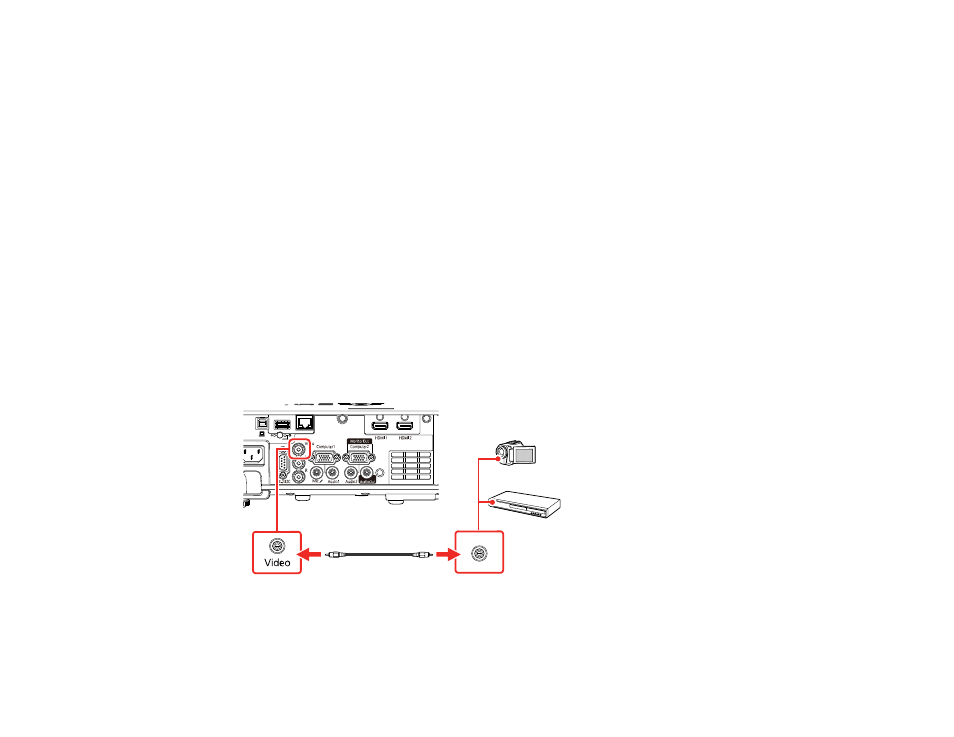

Connecting to a Composite Video Source
If your video source has a composite video port, you can connect it to the projector using an optional
RCA-style video or A/V cable.
You can play sound through the projector's speaker system by connecting a commercially available RCA
audio cable. Make sure the audio cable is labeled "No Resistance."
1.
Connect the cable with the yellow connector to your video source's yellow video output port.
2.
Connect the other end to the projector's
Video
port.
3.
Connect the audio cable to your video source's audio-out ports.
