Rear panel – Roland Boutique JX-08 Synthesizer Module User Manual
Page 14
Panel Descriptions
14

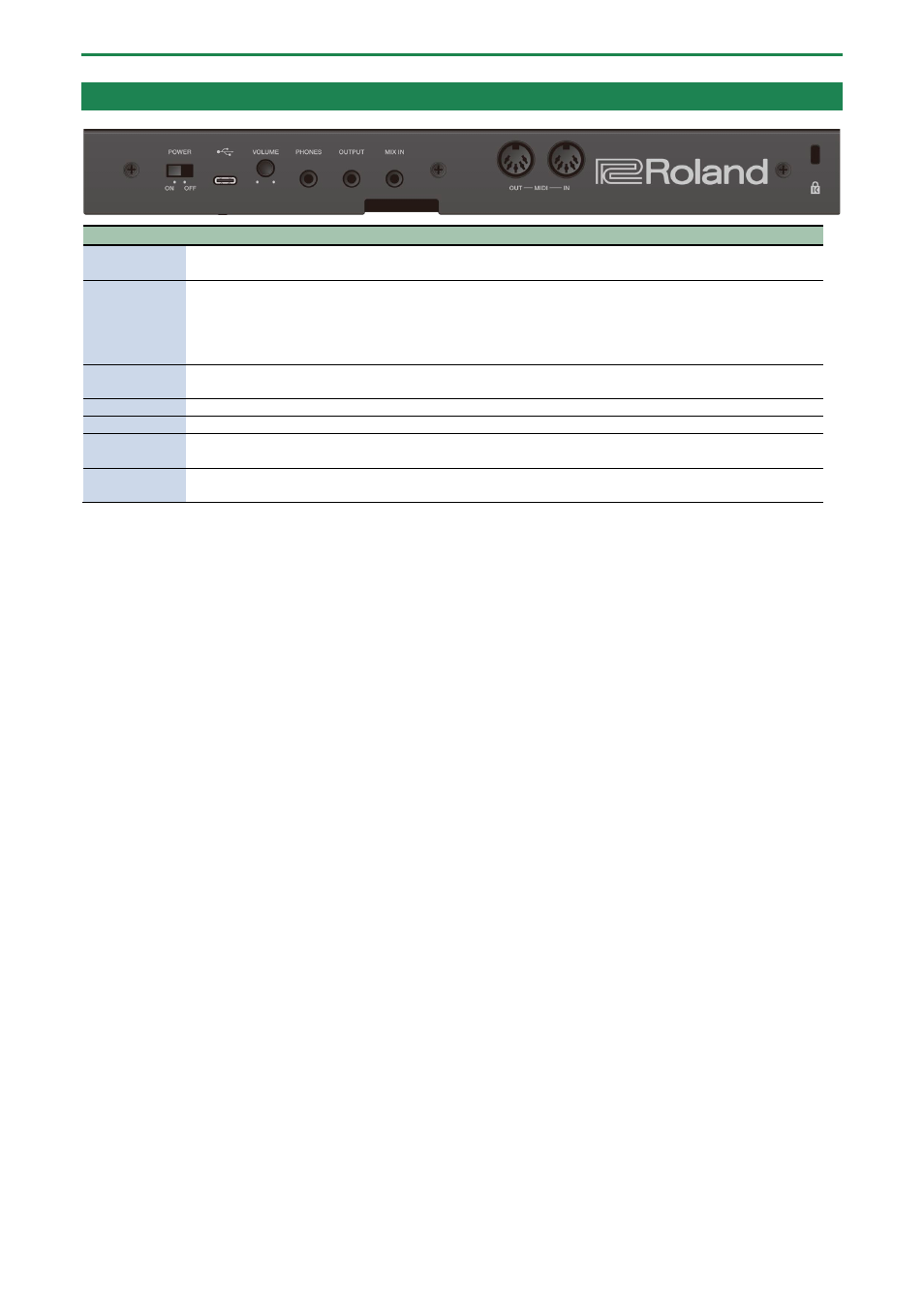

Rear Panel
Controller
Explanation
[POWER]
switch
Turns the power on/off.
USB Type-
C
®
port
Use a commercially available USB Type-C
®
cable to connect this port to your computer. This is used to
transfer USB MIDI and USB audio.
You must install the USB driver if you want to connect this unit to your computer. Download the software
from the Roland website.
[VOLUME]
knob
Adjusts the volume.
PHONES jack
Used for connecting headphones (sold separately).
OUTPUT jack
Connect this jack to your amp or monitor speakers.
MIX IN jack
Used for inputting audio. The sound from connected devices is output from the PHONES and OUTPUT
jacks.
MIDI
connectors
Connect a MIDI device to these connectors using a commercially available MIDI cable. This lets you control
the connected MIDI devices from this unit.
