16

Part Names and Functions

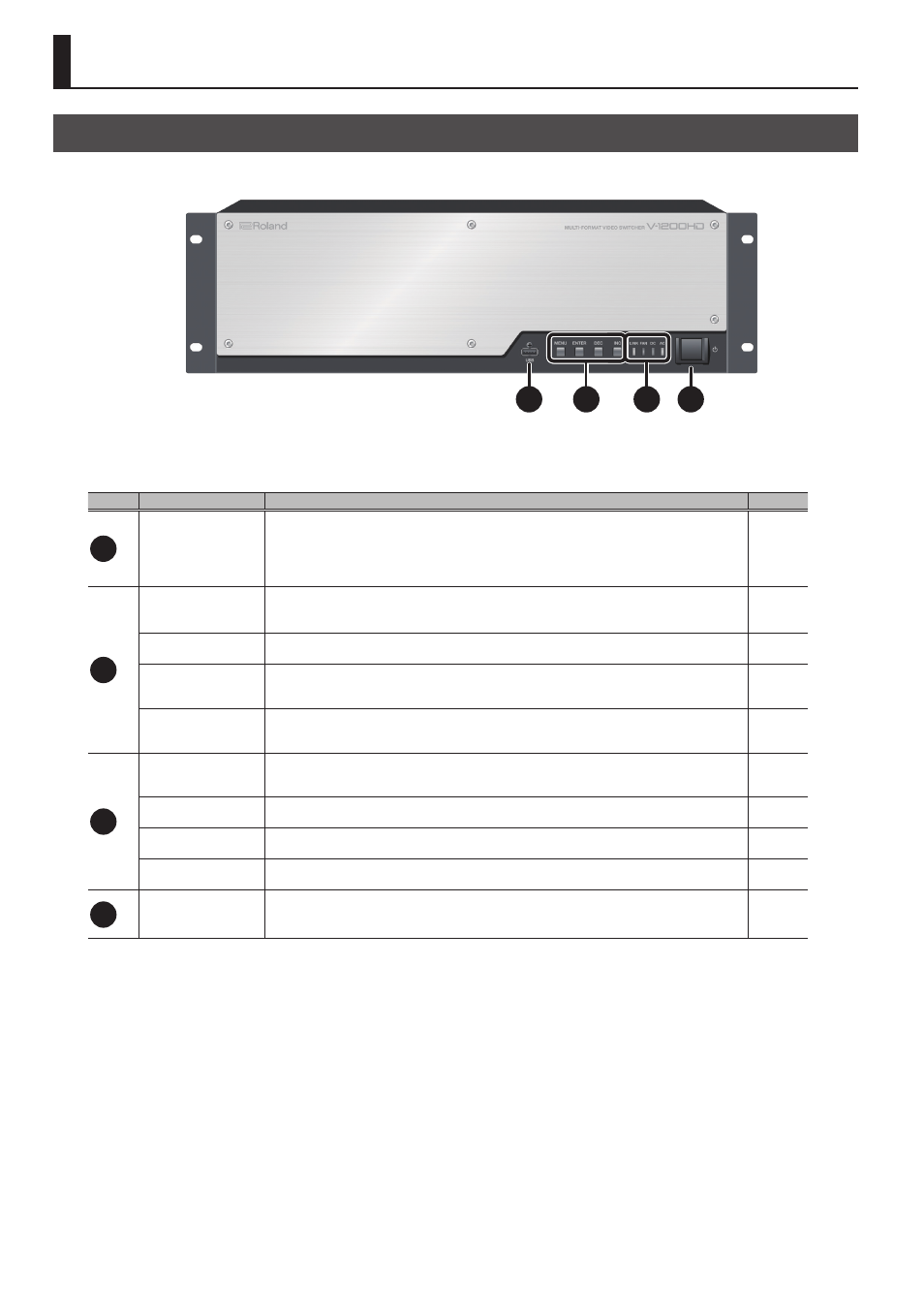

Front Panel

Number Name

Description

Page

1

USB port

This is a USB port exclusively for connecting a USB flash drive.
Connect a USB flash drive to save/recall V-1200HD settings and import still images.
* For information on importing still images, refer to the “V-1200HDR/V-1200HD RCS Remote Control

Guide” (PDF) available for download at the Roland website.

p. 30

2

[MENU] button

This displays the menu screen.
The menu screen is shown on the monitor connected to the HDMI OUT MULTI-VIEW 2 connector.

p. 26

[ENTER] button

This confirms menu items and applies changes made to parameter values.

p. 26

[DEC] button

Use this to move between items and change parametera values on the menu screen. Pressing this makes

the parametera value smaller.

p. 26

[INC] button

Use this to move between items and change parametera values on the menu screen. Pressing this makes

the parametera value larger.

p. 26

3

LINK indicator

This lights up when a connection is established with the V-1200HDR dedicated controller (optional) or

V-1200HD RCS remote-control software.

FAN indicator

This flashes when the cooling fan experiences a problem and stops turning.

DC indicator

This lights up when DC power is supplied from an external power unit connected to the rear panel.

AC indicator

This lights up when AC power is supplied to the V-1200HD’s internal power supply circuit.

4

Power button

This turns the power to the V-1200HD on and off.
* This is enabled only when the rear-panel [POWER] (main power) switch is set to “ON.”

p. 12

1

2

3

4
