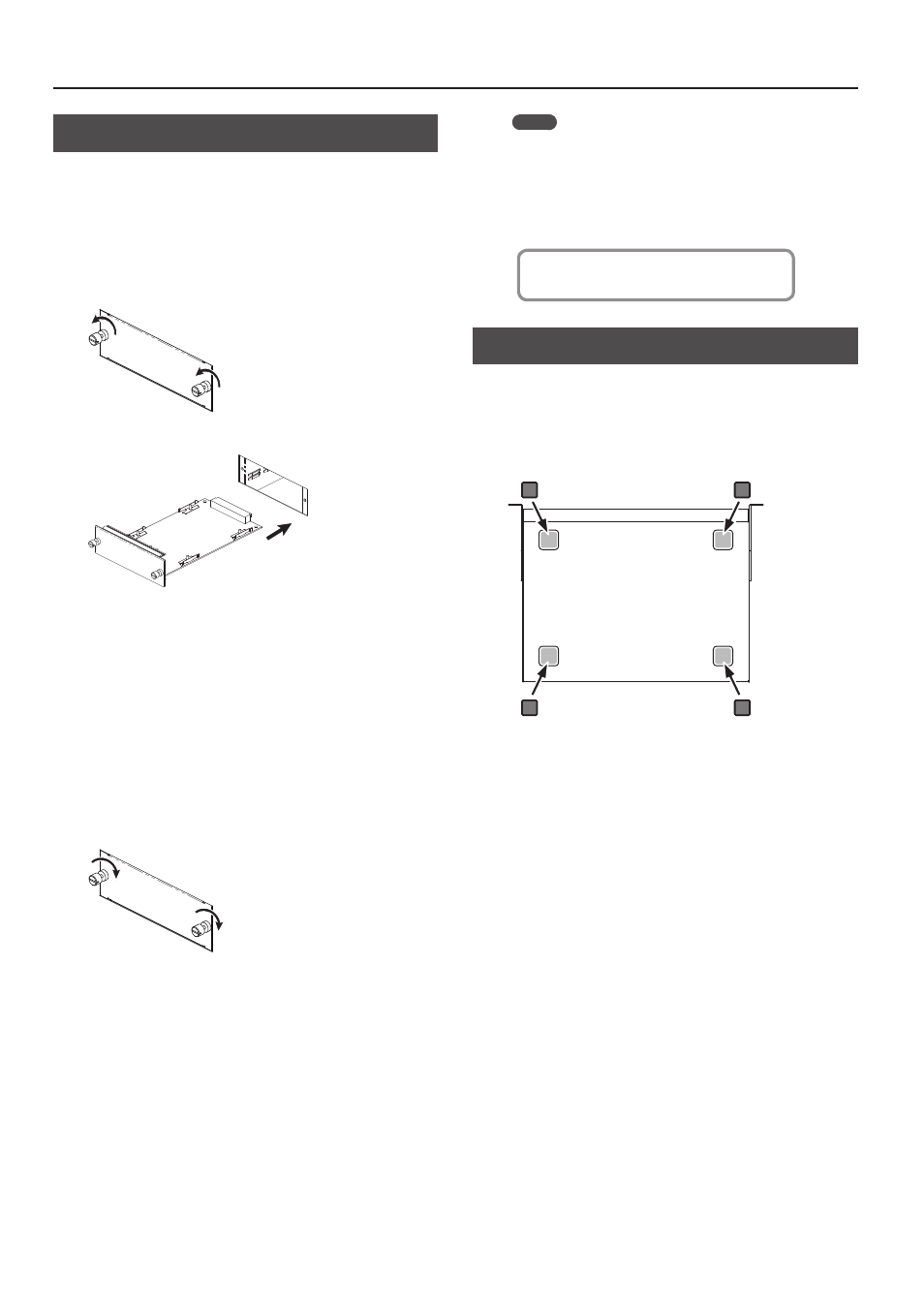

Placement and Setup
Installing an Expansion Interface (Option)
Optional XI-series expansion interfaces can be installed in the
V-1200HD’s expansion slots, enabling you to increase the available
inputs and outputs.
1.
Turn off the power to the V-1200HD and unplug the
power cord from the power outlet.
2.
Loosen the mounting screws (2) indicated in the figure
and detach the expansion slot panel.
3.
Insert the expansion interface.
* To avoid the risk of damage to internal components that can
be caused by static electricity, please carefully observe the
following whenever you handle the expansion interface.
5 Before you touch the the expansion interface, always first
grasp a metal object (such as a water pipe), so you are sure
that any static electricity you might have been carrying has
been discharged
5 When handling the the expansion interface, grasp it only by
the panel or the expansion interface’s edges. Avoid touching
any of the electronic components or connectors.
5 Save the bag in which the expansion interface was originally
shipped, and put the board back into it whenever you need
to store or transport it.
4.
Secure the expansion interface using the screws (2)
specified in the figure.
5 Before installing the expansion interface , you must first always
turn off the unit and unplug its power cord.
5 Install only the specified expansion interface. Remove only the
specified screws.
5 Do not touch any of the printed circuit pathways or connection
terminals.
5 Never use excessive force when installing an expansion
interface. If it doesn’t fit properly on the first attempt, remove
the expansion interface and try again.
5 When the expansion interface installation is complete,
doublecheck your work.
5 Always turn the unit off and unplug the power cord before
attempting installation of the expansion interface.
5 Install only the specified expansion interface. Remove only the
specified screws.
5 When restarting the V-1200HD with an expansion interface
installed, wait several seconds before you turn on the power.
Memo
5 For information on the various settings for using expansion
interfaces, refer to the ”V-1200HDR/V-1200HD RCS Remote
Control Guide” (PDF) available for download from the Roland
website.
5 For detailed information about expansion interfaces, refer to
the Roland website.
Roland website
http://proav.roland.com
Attaching the Rubber Feet
Attach the included rubber feet as required, such as using the V-1200HD
without mounting it in a rack.
Peel off the double-sided tape from the rubber feet and affix them
at the locations shown in the figure.
* When turning the unit upside down, handle it carefully and do
not drop it.
