AN-X2-GENI (AN-X-GENI/B) Page 5
Installation
Prevent Electrostatic Discharge
The module is sensitive to electrostatic discharge.
WARNING! Electrostatic discharge can damage integrated circuits or
semiconductors. Follow these guidelines when you handle the module:
• Touch a grounded object to discharge static potential
• Do not touch the connector pins
Power
AN-X requires DC power input of anywhere from 12 to 24 VDC

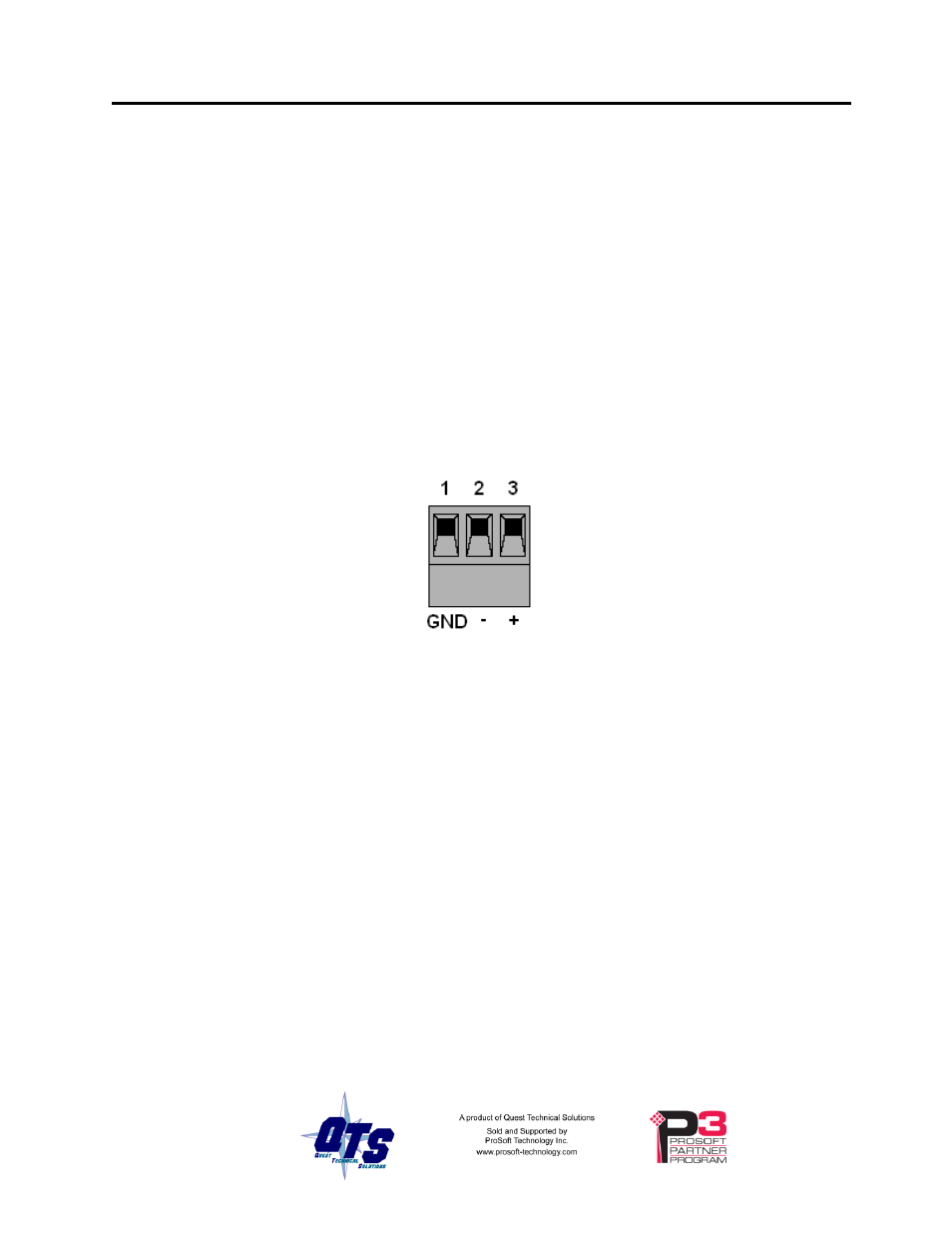

Left to right the pins on the power connector are chassis ground, negative voltage and
positive voltage. Pin 1 is closest to the Ethernet connector.
The chassis ground should be connected.
Power consumption internally is 200 mA @ 12VDC or 100 mA @ 24VDC.
The part number for the power connector is Phoenix MSTB 2.5/3-ST-5.08
Genius Cabling and Termination
Refer to Genius I/O System and Communications User’s Manual, GEK-90486F-1 for
detailed information on Genius cabling and installation.
The module has a 5-pin Phoenix connector for connection to the Genius I/O network.
The part number for the Genius bus connector is MSTB 2.5/5-ST-5.08
