6.4.8 Session

Configuration

Menu

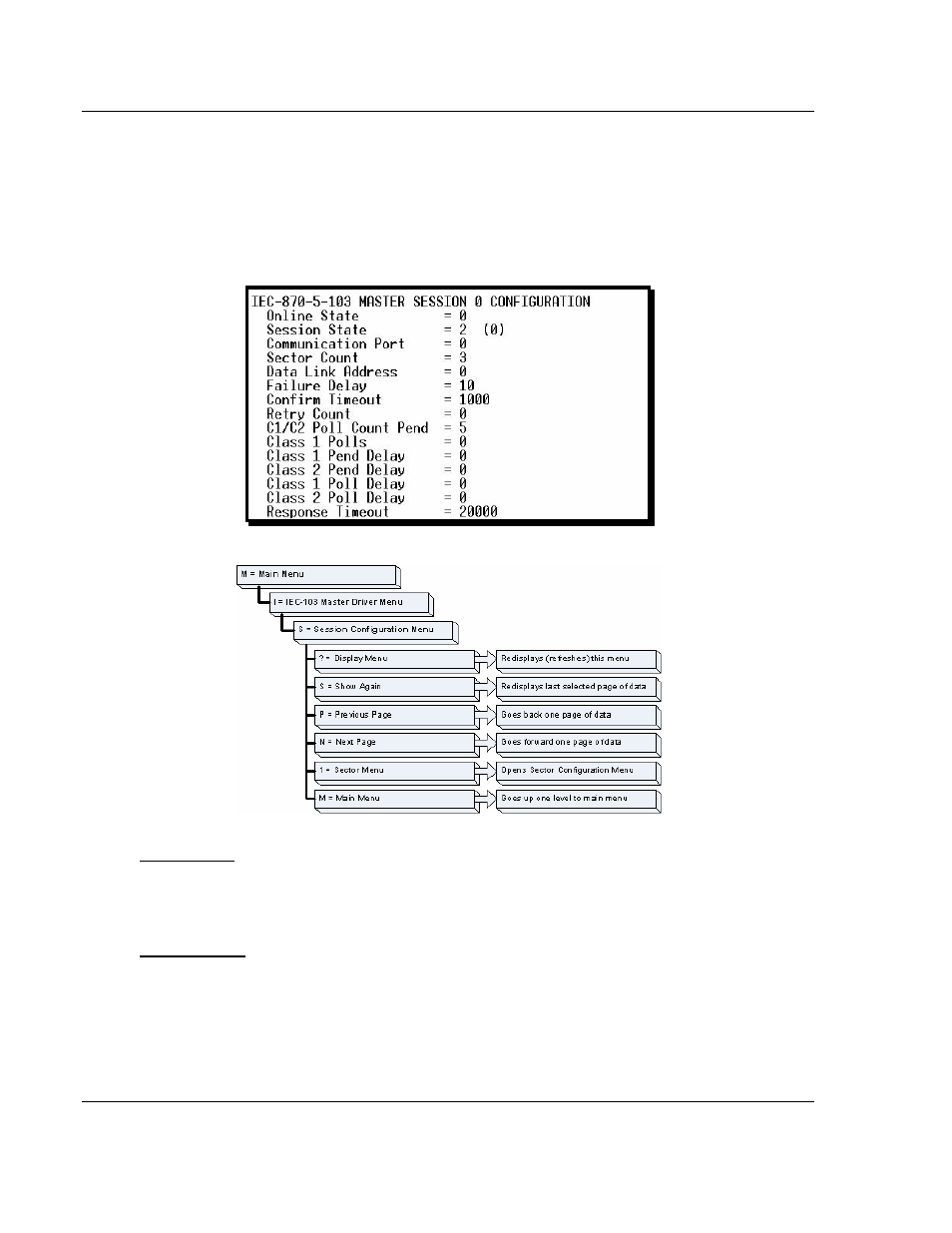

Press [S] from the IEC-103 Master Driver Menu to open the Session
Configuration menu. Use this command to view the session configuration for
each controlled device.

Online State

The Online State indicator displays 0 if the module is not online, 1 if the module
is online.

Session State

The Session State indicator displays 1 if there is a configuration error, or 2 if the
module is ready for communication. If the session is not in use, the Session State
indicator displays 0.
