13

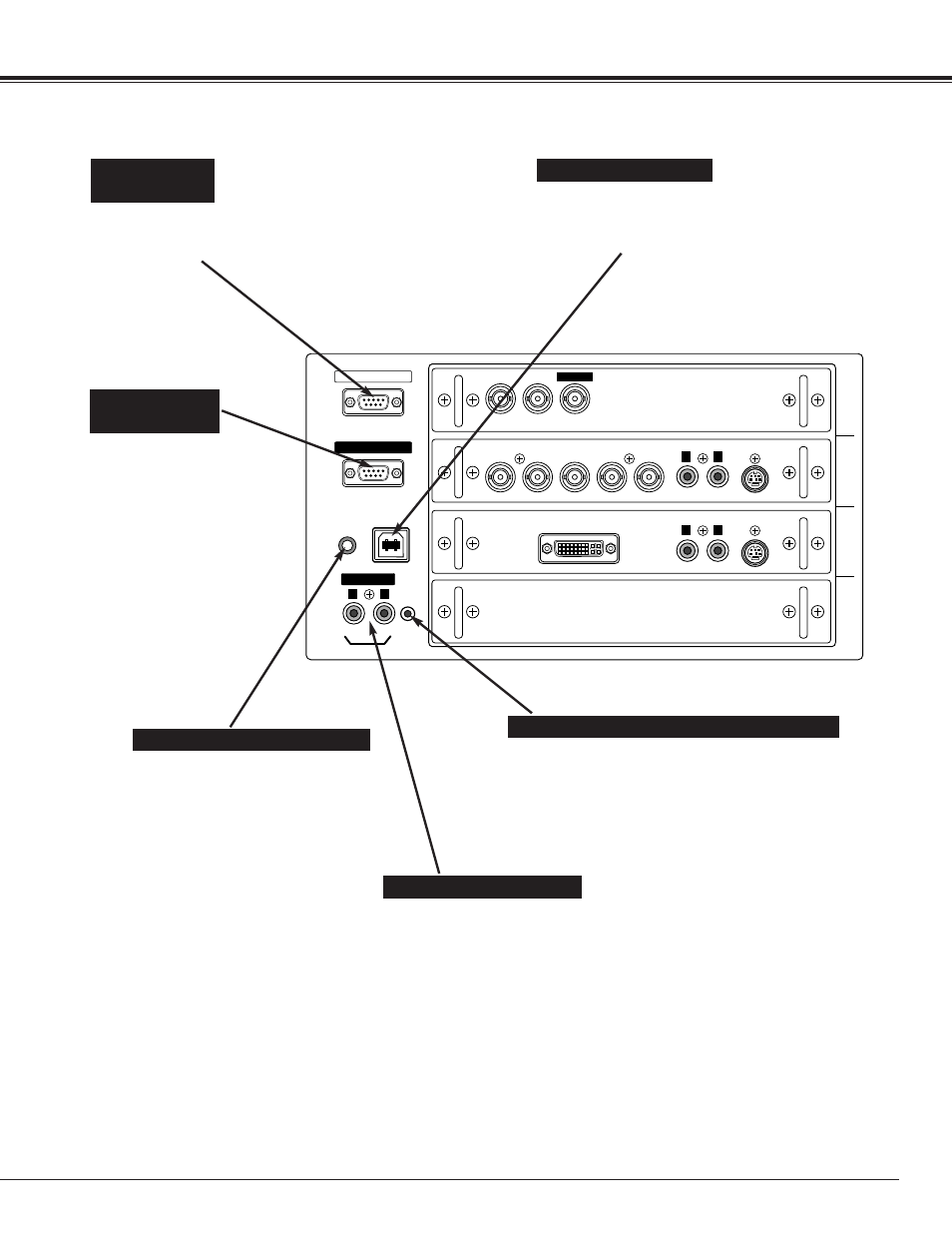

CONNECTING PROJECTOR
Connect an external audio
amplifier to these jacks.
(Refer to P14, 15.)
AUDIO OUTPUT JACKS
This projector uses a micro processor to control unit.
Occasionally, micro processor may malfunction and
need to be reset. This can be done by pressing
RESET button with a pen, which will shut down and
restart unit. Do not use RESET function excessively.
RESET BUTTON
When using Wired / Wireless Remote
Control Unit as Wired Remote
Control, Connect Wired Remote
Control Unit to this jack with Remote
Control Cable (supplied).
(Refer to page 18.)
R/C JACK
USB PORT (Series B)
INPUT 1
INPUT 2
INPUT 3
DVI
AUDIO CONTROL PORT
CONTROL PORT AUDIO
R/Pr G/Y B/Pb H/HV V
(MONO)
(MONO)
R L
R L
(MONO)
AUDIO OUT
R L
R/C JACK USB
SERIAL PORT IN
SERIAL PORT OUT
RESET
INPUT 4
SDI IN1 SDI IN2 SDI OUT
SERIAL PORT
OUT TERMINAL
SERIAL PORT
IN TERMINAL
This port is used to control a projector
with computer.
Connect USB port of computer to this
port.
If you control a projector by computer,
you must connect a cable (not provided)
from your computer to this terminal.
This terminal outputs signal
from SERIAL PORT IN. More
than two projectors can be
controlled with one computer
by connecting SERIAL PORT
IN. of another projector to this
terminal.
