12
CONNECTING PROJECTOR
INPUT 1
INPUT 2
INPUT 3
DVI
AUDIO CONTROL PORT
CONTROL PORT AUDIO
R/Pr G/Y B/Pb H/HV V
(MONO)
(MONO)
R L
R L
(MONO)
AUDIO OUT
R L
R/C JACK USB
SERIAL PORT IN
SERIAL PORT OUT
RESET
INPUT 4
SDI IN1 SDI IN2 SDI OUT
Connect audio output
from computer or video
equipment to these jacks.
(Refer to P14, 15.)
CONTROL PORT CONNECTORS
AUDIO INPUT JACKS
5 BNC INPUT JACKS
Connect component video output (Cr, Y,
Cb or Pr, Y, Pb) from video equipment to
R/Pr, G/Y and B/Pb jacks or connect
computer output [5 BNC Type (Red,
Green, Blue, Horiz. Sync and Vert.
Sync.)] from computer to R/Pr, G/Y,
B/Pb, H/HV and V jacks. (Refer to P14,
15) Connect computer output
(Digital/Analog DVI-I type)
to this terminal.
Connect digital video output
from video equipment to this
terminal.
(Refer to P14, 15.)
DVI INPUT TERMINAL

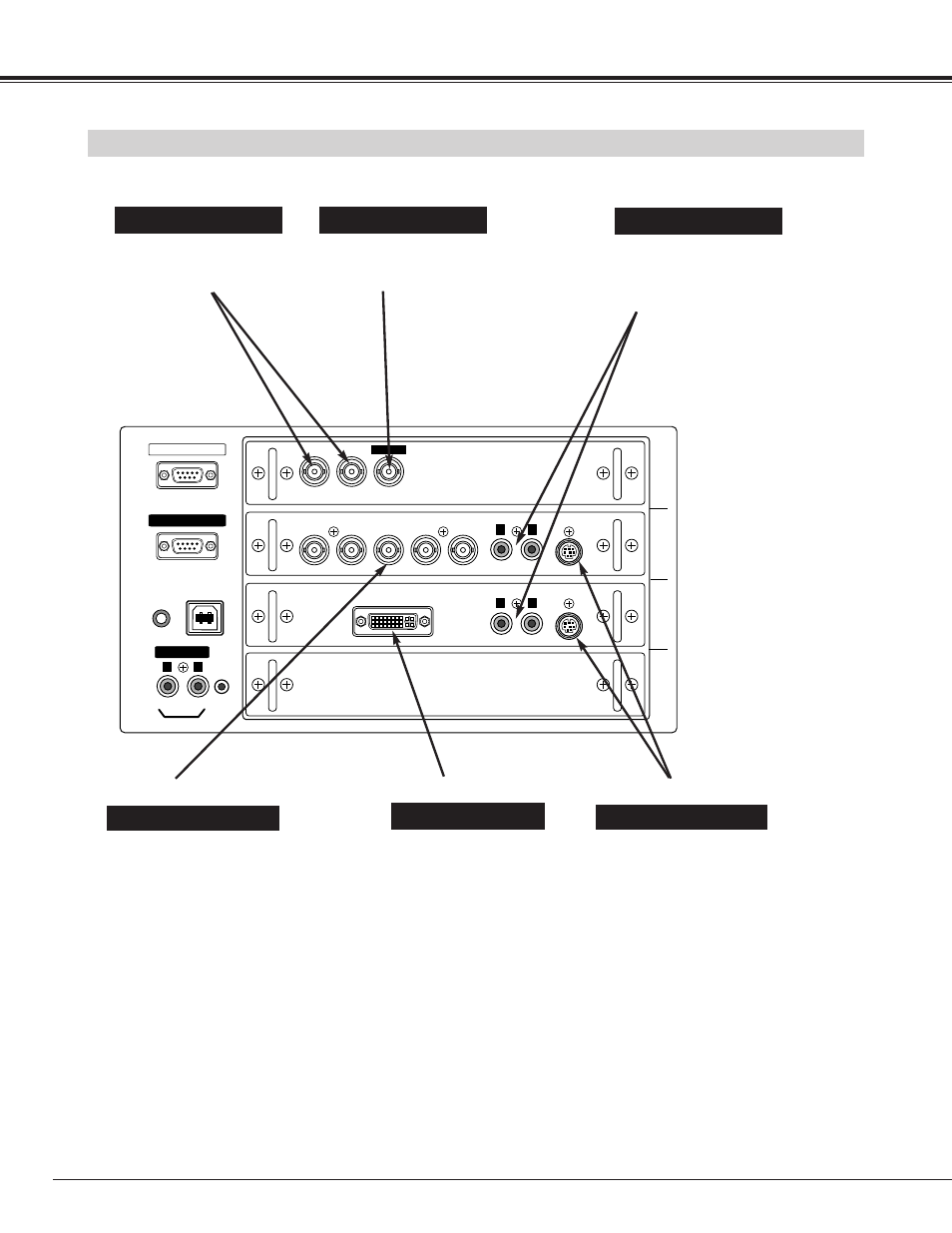

INPUT/OUTPUT TERMINALS AND JACKS
INPUT 2 INPUT 3
INPUT 2, 3
INPUT 2, 3,
INPUT 1
Connect SDI output from
video equipment to these
jacks. (Refer to P15.)
SDI INPUT JACKS
INPUT 1
Connect SDI input from
video equipment to this
jack. (Refer to P15.)
SDI OUTPUT JACK
The port is not functioning in this model.
