3. Overview
Front Panel

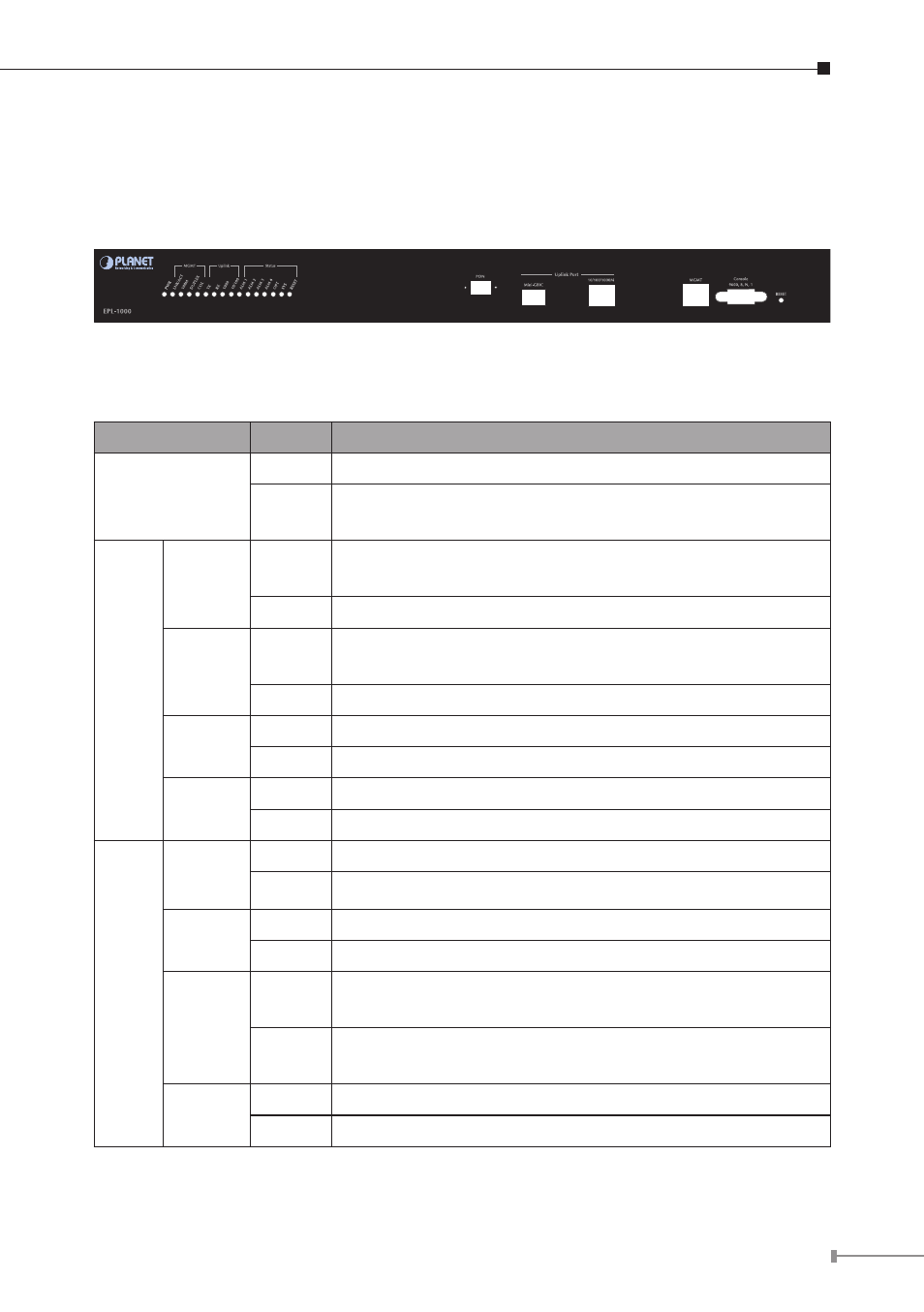

The front panel of EPL-1000 is shown below.
EPL-1000
Front Panel LED and Port definition
LED Status Description
PWR
On The indicator will light when OLT is opened
Off
Checking the power or power supply adaptor, make sure
power supply has connected well
MGMT
LNK/ACT
On
Light when equipment normally connect with 100Mbps ONU
port
Glitter Glitter when the port receive or transfer data
100M
On
Corresponding indicator is on when 100Mbps equipment
connect with relevant port
Off Be off when 100Mbps port does not joint equipment
DUPLEX
On Be on when port is working base on full duplex mode
Off Be off when port is working base on half duplex mode
COL
Glitter Collision happens base on half duplex mode
Off Normal work status
Uplink
TX
On Be on when the 1000Mbps port is transferring data
Off Be off when the 1000Mbps port has no data to transfer
RX
On Be on when the 1000Mbps port is receiving data
Off Be off when the 1000Mbps port has no data to receive
1000
On
Be on when 1000Mbps equipment connects with relevant
port
Off
Be off when 1000Mbps port does not joint relevant
equipment
10/100
On Be on when 100Mbps equipment connects with relevant port
Off Be off when the port does not joint 100Mbps equipment
