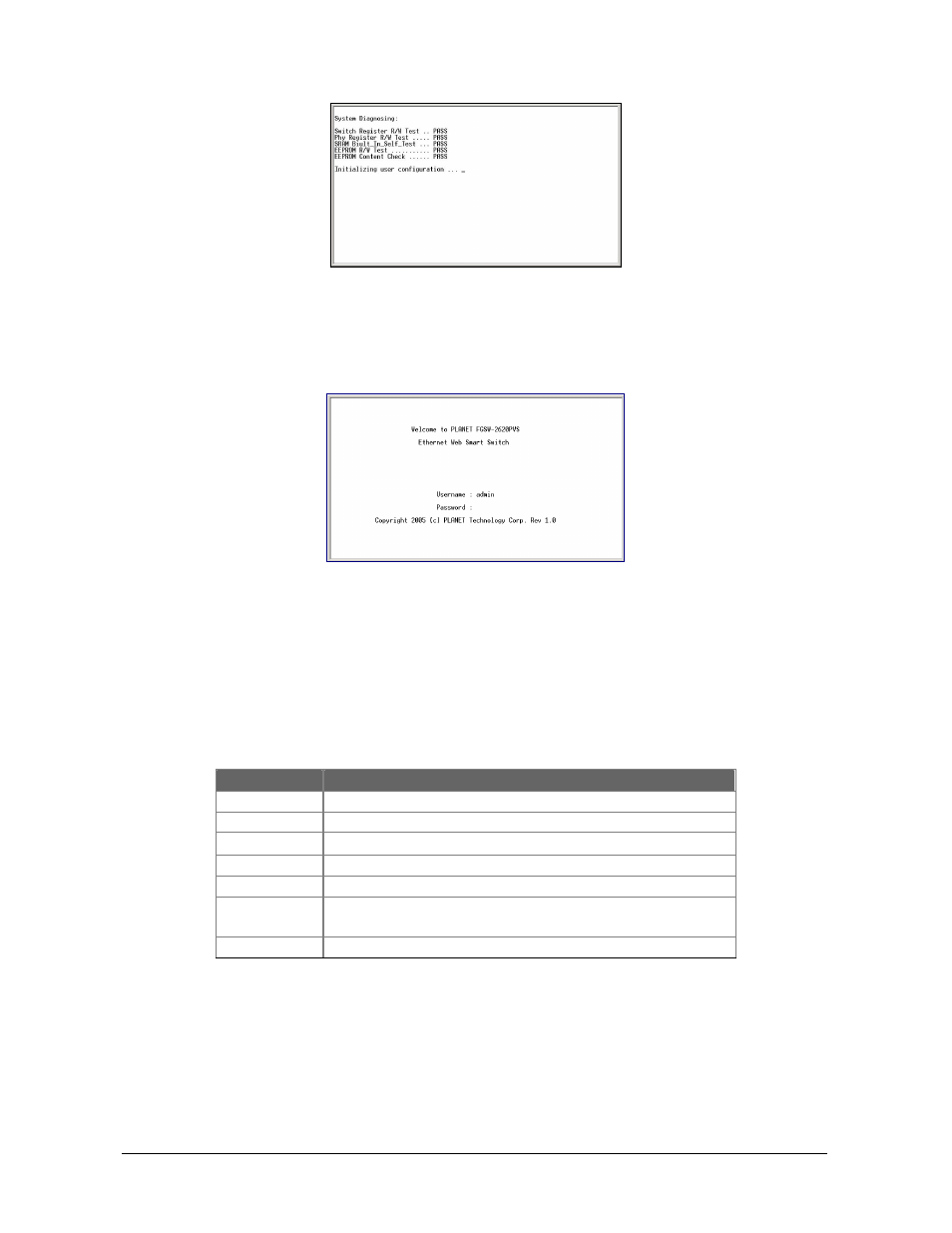

Figure 3-2 Power-up System Self-diagnostic screen
" '
After the self-test completes successfully, the screen in figure 3-3 appears. Login is required to access the
console interface. The factory default username is " admin " without password. You may change it in the Misc
Configuration . To access to the Main Menu, please always enter the correct username and password.
Figure 3-3 Switch Console Login screen
) #
) )
Switch allows users to configure the device via menu screens.
To work within the menu, please follow the guidelines shown in Table 3-1.
Item Description
Value 0-9 Choose one item from the console screen.
TAB KEY Choose next item from the console screen.
Arrows KEY means up, down, left, right .
BACKSPACE Back to previous item from the console screen.
ENTER KEY
Access the highlighted item from the console screen.
SPACE KEY When a List item is performed, the Space key starts
the selection and scrolls through the available choices.
ESC Return to the actions menu.
Table 3-1 General Guideline within the Menu
#
The main menu enables you to view and manage the Switch settings. Use the "Tab" keys to move the highlight over a
selection. Press “ Enter” key for chooses Smart function of Switch. After entering into any smart function
screen, choose for configuring. Then Press the "Space Bar ” to toggle back and forth between the
options. After setup completed, press "ESC" key to return to Actions menu and use the "TAB" key to choose
the for save the current configuration. You can also choose each function through press the value 0-9
on your keyboard. Please refer to figure 3-4 for available options on main menu.
