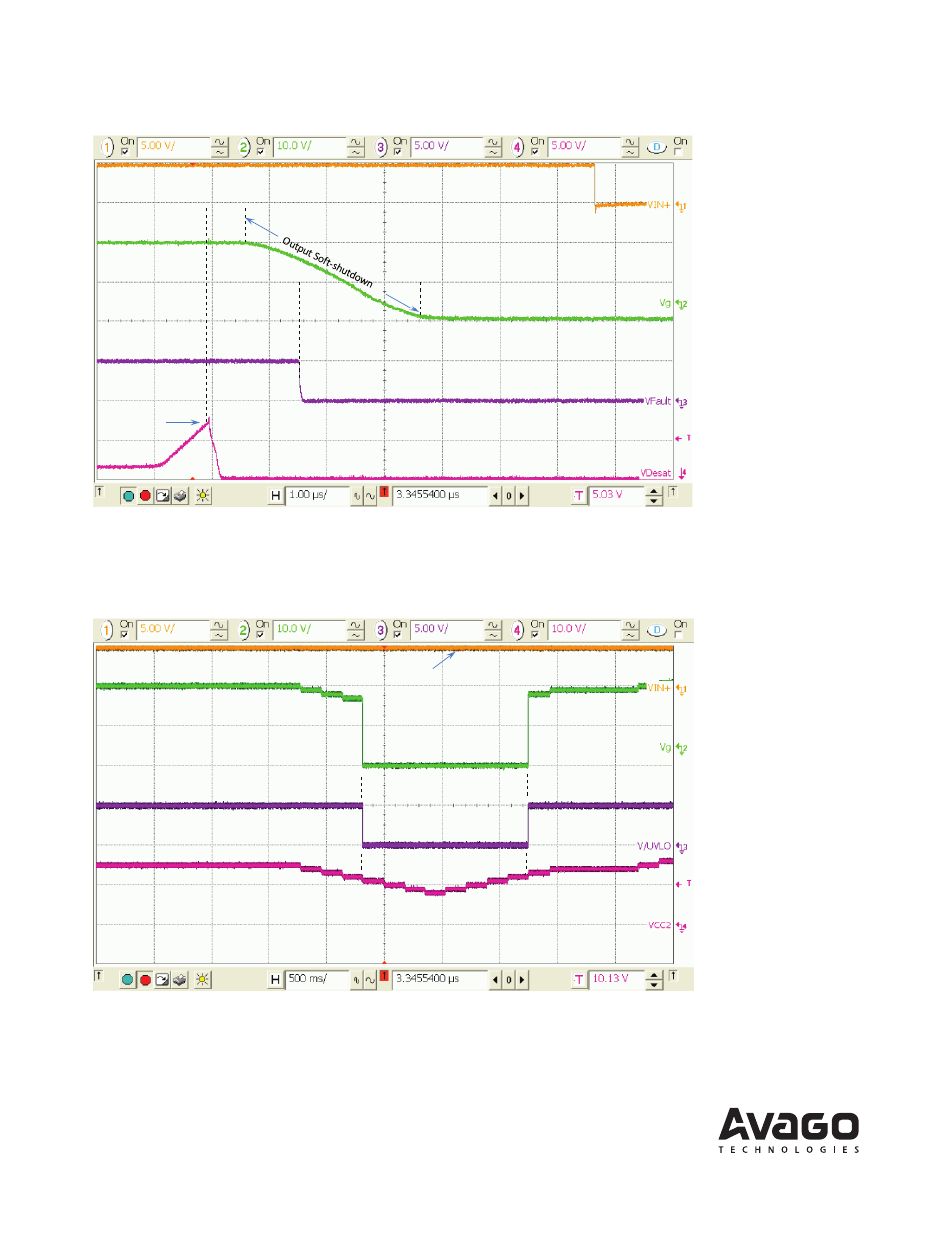

Figure 8 shows the actual Desat 7 V threshold detection that triggers the V
G
output soft-shutdown as well as /Fault feed-
back pin voltage is pulled low to inform microcontroller that a fault has been detected.
Figure 8. Desat Protection & Fault Feedback
Figure 9 shows that the V
CC2
voltage sag below UVLO- level (between 11~12 V) triggers the UVLO and shutdown the
output V
G
level and recovers after normal V
CC2
voltage recovers above UVLO+ level (between 12~13 V). The /UVLO pin
voltage is also pulled low throughout the same duration to inform the microcontroller that severe V
CC2
level drop has
happened.
Figure 9. UVLO Feedback
In conclusion, with these sophisticated IGBT gate driving and driver protection schemes built-in, ACPL-337J is well suited
for modern IGBT applications such as Motor Control and Voltage inverters.
