Configure – Rose Electronics QuadraVista QF User Manual
Page 33
QuadraVista QF Installation and Operations Manual
27

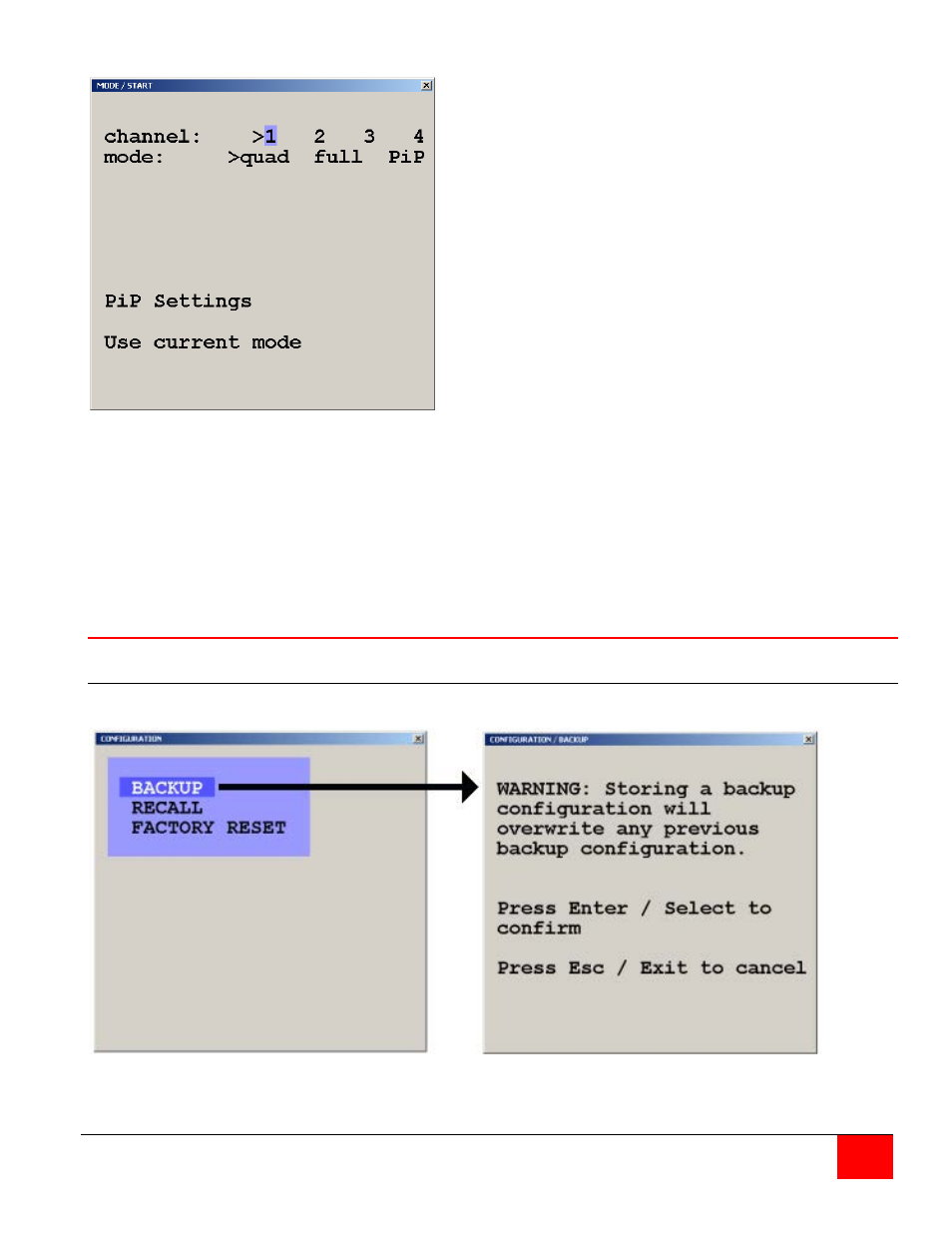

Figure 22. Mode / PiP-Start
Configure
Configure / Backup, Recall, Factory Reset
The backup command saves the current device settings.
Figure 23. Backup
The recall command replaces the current settings with the latest backup.
Selecting Start from the MODE menu
defines which channel is active, the
display mode, and the PiP settings when
power is applied.
